ENMG / PALM & FOOT SWITCHES

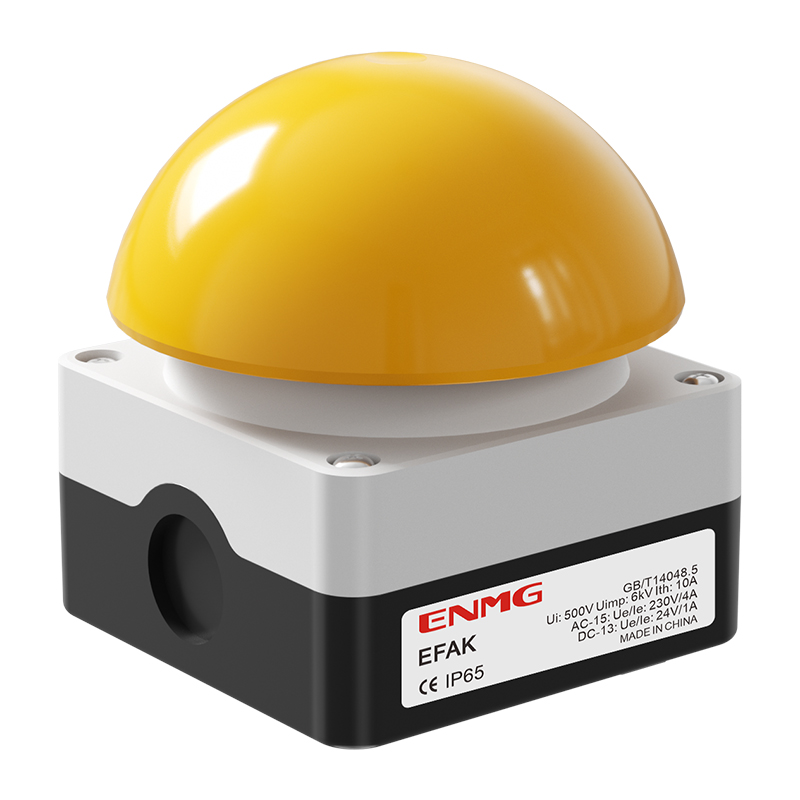

EFAK-Y/KC11/I
Yellow self-return palm and foot switch
A large hemispherical actuator for palm, elbow or foot operation, using a spring-return mechanism and one normally open plus one normally closed contact.
Request a quote ↗TECHNICAL DATA / EFAK-Y/KC11/I
Specifications & selection.
- Yellow actuator on a gray and black enclosure.
- Ø92 mm nominal operating head; PC/ABS alloy.
- IP65 enclosure rating with correctly fitted seals and cable glands.
| Parameter | Value |
|---|---|
| Order code | EFAK-Y/KC11/I |
| Operation | Momentary / automatic return |
| Contact arrangement | 1 NO + 1 NC |
| Operating force / frequency | 20–40 N / ≤3600 operations per hour |
| Material | PC/ABS actuator; reinforced flame-retardant plastic enclosure |
| Mass | Approximately 0.35 kg |
| Parameter | Value |
|---|---|
| Thermal current Ith | 10 A; not an AC-15 / DC-13 switching rating |
| Insulation voltage Ui | 500 V |
| AC-15 | 4 A at 230 V |
| DC-13 | 1 A at 24 V |
| Contact material / initial resistance | Silver alloy / ≤100 mΩ |
| Insulation resistance | ≥100 MΩ at 500 VDC |
| Withstand | 1000 VAC between live parts; 2500 VAC to non-live parts; 50/60 Hz, 1 minute |
| Parameter | Value |
|---|---|
| Base / total height | 85 × 85 mm / 101 mm |
| Actuator | Ø92 mm nominal; approximately Ø94 mm outer crown |
| Mounting | 65 mm hole spacing; 2-R3.75 in source |
| Cable entry positions | Three side entries and one bottom entry; confirm gland thread |
| Wire | Solid 0.75–2.5 mm²; stranded 0.5–2.5 mm² |
| Terminal torque | 0.8 N·m |
| Ambient / storage | −25 to +80 °C / −30 to +120 °C; no condensation or icing |
| Humidity | ≤90% RH |
Selection & installation notes
- This exact model returns automatically. It must not replace a latching emergency-stop device; the family’s pull-to-reset model has a separate V code.
- The source lists AC-15 230 V / 4 A and DC-13 24 V / 1 A. Its separate 10 A 250 VAC / 30 VDC statement is not used as a DC-13 rating.
- The page inconsistently labels cable entries as M20 and PG13.5 and gives an incompatible Ø5.5 mm opening. Confirm actual gland threads and cutouts before machining; M20 and PG13.5 are not interchangeable.
- IP65 does not establish high-pressure washer compatibility. The source’s 100 Pa high-pressure cleaning statement is inconsistent; obtain cleaning instructions before washdown.
- Seal unused entries, match glands to cable diameter and isolate power before wiring. The family brochure is provided for reference; request the current model-specific drawing when designing a machine.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG control components — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
