ENMG / ELECTROMECHANICAL RELAYS
RXG

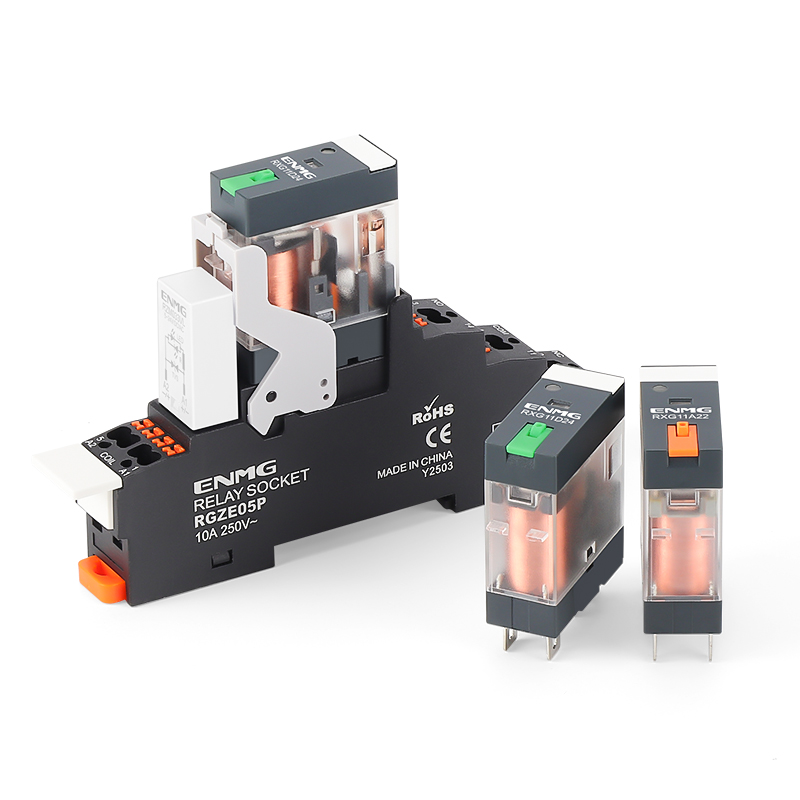

Slim power relays and socket sets
Plug-in industrial relays with selectable contact arrangements, AC or DC coils, and compatible DIN socket configurations.
Request a quote ↗TECHNICAL DATA / RXG
Specifications & selection.
- Standard models include test lever and LED.
- Push-in, cage and barrier socket options.
- Select coil supply, contact form and socket as a matched assembly.
| Model | Contacts | Contact class | Coil |
|---|---|---|---|
| RXG11D24 | 1 CO / 5 pins | 12 A | 24 VDC |
| RXG11A22 | 1 CO / 5 pins | 12 A | 220 VAC |
| RXG21D24 | 2 CO / 8 pins | 8 A | 24 VDC |
| RXG21A22 | 2 CO / 8 pins | 8 A | 220 VAC |
| Contacts | Push-in | Cage | Barrier |
|---|---|---|---|
| 1 CO | RGZE05P / RG05P | RXGZE1S35M | SJ1S-05B |
| 2 CO | RGZE08P / RG08P | RXGZE1S48M | SJ2S-05B |
| Parameter | Value |
|---|---|
| Contact rating voltage | 250 VAC / 30 VDC; current depends on contact model |
| Coil consumption | 0.53 W DC / 0.9 VA AC in shared source |
| Coil thresholds | Operate ≤80%; release ≥10% DC / ≥30% AC |
| Maximum coil voltage | 110% rated; confirm temperature conditions |
| Initial contact resistance | ≤50 mΩ |
| Operate / release | ≤15 / ≤10 ms |
| Ambient | −40 to +70 °C; 5–85% RH; no condensation or icing |
| Assembly | L × W × H (mm) |
|---|---|
| 1 CO push-in, suppressor-ready | 69 × 16 × 105 |
| 1 CO basic push-in | 68 × 16 × 97 |
| 1 CO cage | 70 × 16 × 76 |
| 1 CO barrier | 62 × 16 × 76 |
Selection & installation notes
- Socket codes in the original selection images differ from the shared prose. The table follows the images; confirm exact socket marking and terminal allocation before ordering.
- Outline dimensions refer only to pictured complete sets; the source gives ±0.5 mm manual-measurement tolerance.
- A relay contact rating does not establish complete socket-set or simultaneous multi-pole capacity. Check terminal ratings, load category and thermal derating.
- Function code 1 includes test lever and LED; 2 is lever only, 3 LED only, 4 neither. Confirm AC/DC coil and any suppression module before energizing.
- The test lever can actuate the output independently of the control signal. Isolate connected equipment before testing or replacement.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
