RXM

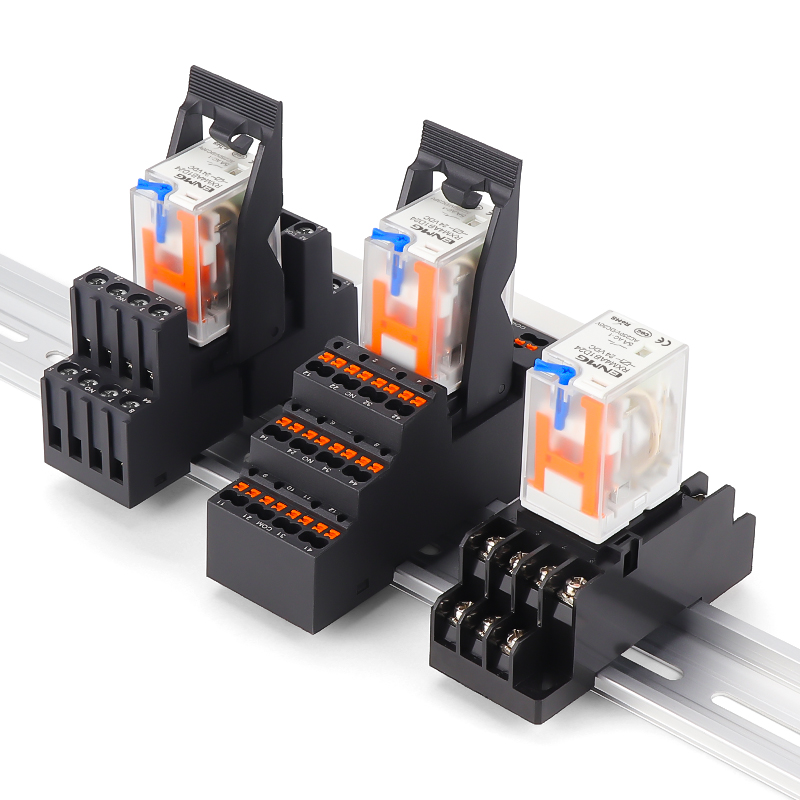

Miniature multi-pole relays and socket sets
Plug-in industrial relays with selectable contact arrangements, AC or DC coils, and compatible DIN socket configurations.
Request a quote ↗TECHNICAL DATA / RXM
Specifications & selection.
- Standard models include test lever and LED.
- Push-in, cage and barrier socket options.
- Select coil supply, contact form and socket as a matched assembly.
| Model | Contacts | Contact class | Coil |
|---|---|---|---|
| RXM2AB1D24 | 2 CO / 8 pins | 10 A | 24 VDC |
| RXM2AB1A22 | 2 CO / 8 pins | 10 A | 220 VAC |
| RXM4AB1D24 | 4 CO / 14 pins | 5 A | 24 VDC |
| RXM4AB1A22 | 4 CO / 14 pins | 5 A | 220 VAC |
| Contacts | Push-in | Cage | Barrier |
|---|---|---|---|
| 2 CO | RXZE08P | RXZE2M114M in image; confirm exact pin allocation | G-PYF08A |
| 4 CO | RXZE14P | RXZE2M114M in image; confirm exact pin allocation | G-PYF14A |
| Parameter | Value |
|---|---|
| Contact rating voltage | 250 VAC / 30 VDC; current depends on contact model |
| Coil consumption | 0.53 W DC / 0.9 VA AC in shared source |
| Coil thresholds | Operate ≤80%; release ≥10% DC / ≥30% AC |
| Maximum coil voltage | 110% rated; confirm temperature conditions |
| Initial contact resistance | ≤50 mΩ |
| Operate / release | ≤15 / ≤10 ms |
| Ambient | −40 to +70 °C; 5–85% RH; no condensation or icing |
| Additional contact variant | 3 CO / 11 pins / 5 A; custom order |
| Mechanical / electrical life | ≥10 million / ≥100,000 operations; electrical test load not specified |
| Assembly | L × W × H (mm) |
|---|---|
| 2 CO push-in | 96 × 27 × 85 |
| 4 CO push-in | 96 × 31 × 85 |
| 2 / 4 CO cage | 84 × 27 × 80 |
| 2 CO barrier | 76 × 23 × 66 |
| 4 CO barrier | 76 × 29.5 × 66 |
Selection & installation notes
- Socket codes in the original selection images differ from the shared prose. The table follows the images; confirm exact socket marking and terminal allocation before ordering.
- Outline dimensions refer only to pictured complete sets; the source gives ±0.5 mm manual-measurement tolerance.
- A relay contact rating does not establish complete socket-set or simultaneous multi-pole capacity. Check terminal ratings, load category and thermal derating.
- Function code 1 includes test lever and LED; 2 is lever only, 3 LED only, 4 neither. Confirm AC/DC coil and any suppression module before energizing.
- The test lever can actuate the output independently of the control signal. Isolate connected equipment before testing or replacement.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
