SB50

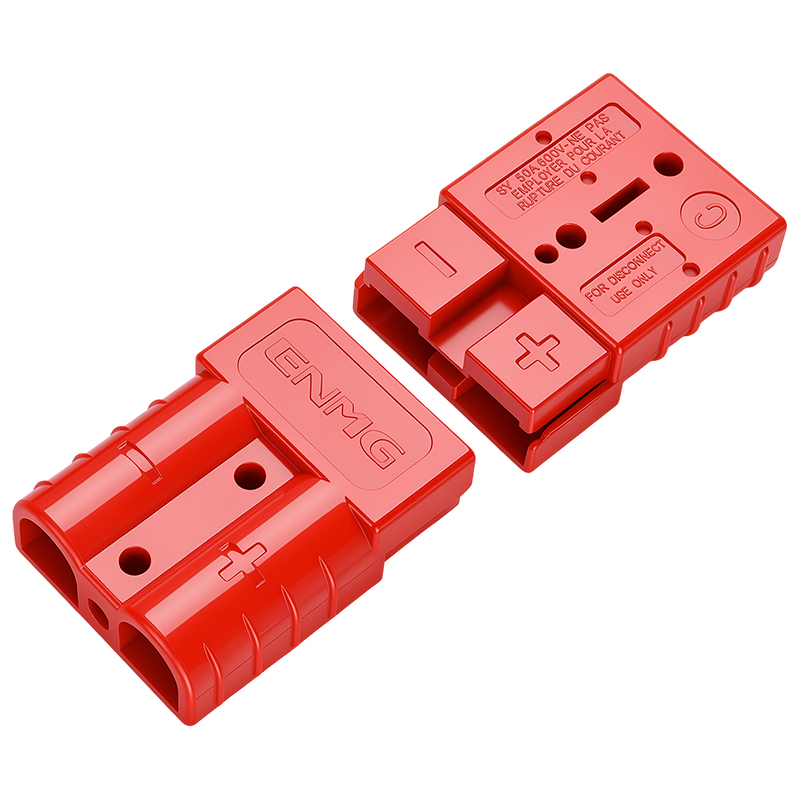

50 A keyed power connector
A separable power-cable connector with silver-plated copper contacts, keyed red or gray housings and optional handles or dust covers.
Request a quote ↗TECHNICAL DATA / SB50
Specifications & selection.
- 50 A / 600 V published connector class.
- PC housing; UL94 V-0 material classification stated by source.
- 6, 8 and 10–12 AWG contact options.
| Parameter | Published value |
|---|---|
| Rated current / voltage | 50 A / 600 V; exact conditions and AC/DC application to be confirmed |
| Contacts | Silver-plated copper |
| Housing / spring | PC / 65Mn steel |
| Colors | Red and gray; match identical keyed housings |
| Ambient | −20 to +105 °C |
| Accessories | Dust cover and pull handle; separate options |
| Wire | Cross section | Selection note |
|---|---|---|
| 6 AWG | 13.3 mm² | Match contact barrel and crimp die |
| 8 AWG | 8.4 mm² | Confirm installed ampacity and temperature rise |
| 10–12 AWG | Approximately 5.3–3.3 mm² in prose | Select load-appropriate wire and contact |
| Item | Dimension |
|---|---|
| Mated pair length | 81 mm |
| Housing width | 36 mm |
| Mated side-view height | 16 mm |
| Single housing length chain | 22.5 + 19 + 6.5 = 48 mm |
| Mounting-hole diameter | 3.7 mm |
| Mass / ingress protection | Not specified |
Selection & installation notes
- The prose calls 22.5 mm the height, but the original drawing uses it as a length segment and shows 16 mm side-view height. The dimensions above follow the original drawing; confirm the production connector before machining.
- Matching color helps mechanical keying but does not verify polarity or voltage. Check both contacts and circuit labels before mating; never modify keying.
- Crimp contacts before inserting into housings, using the correct barrel, conductor and tool. Confirm retention and provide strain relief.
- Disconnect the load and isolate supply before mating or separating. This page does not establish a load-break or hot-plug rating.
- The 50 A class is not guaranteed for every wire size, temperature or bundling condition. Confirm current derating and protection coordination. Dust covers do not establish a waterproof rating.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
