ENMG / DIN-RAIL MOUNTING HARDWARE
ABL2K02

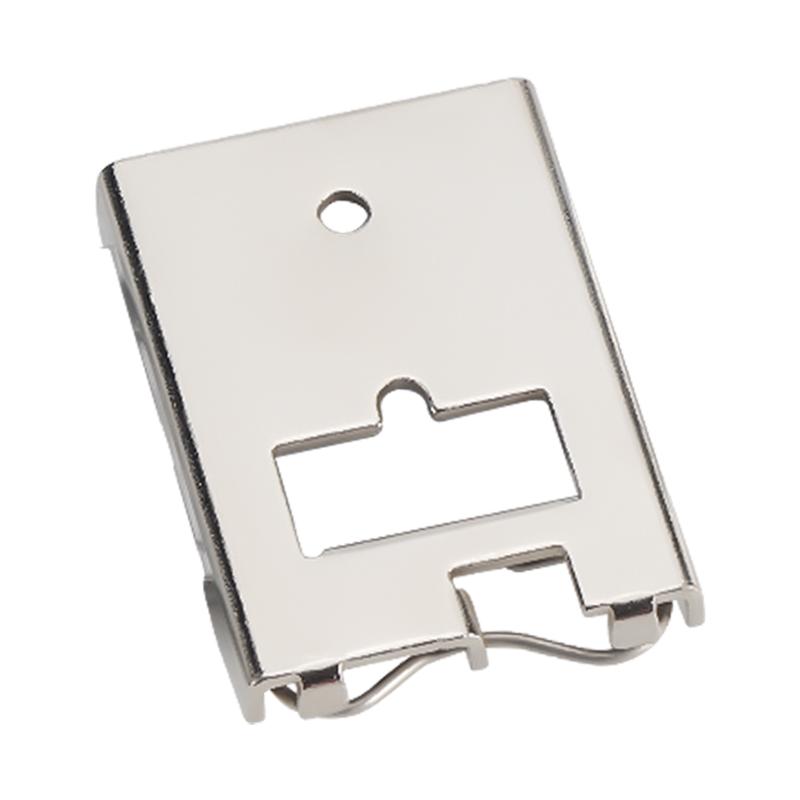

Metal clip-on DIN mounting brackets
Compact steel brackets for attaching power supplies, relays and control modules to 35 mm DIN rail.
Request a quote ↗TECHNICAL DATA / ABL2K02
Specifications & selection.
- Nickel-plated stamped-steel body.
- SUS304 spring clip described in official materials.
- M4 mounting point and clip-on rail attachment.
| Parameter | Value |
|---|---|
| Rail | 35 mm DIN |
| Front outline | 39 mm across rail × 56 mm perpendicular to rail |
| Mounting marking | M4 |
| Additional vertical dimension | 20 mm between marked hole centre and lower feature; verify drawing |
| Body / finish | Steel / nickel plated |
| Parameter | Value |
|---|---|
| Approximate thickness / mass | 10 mm / 28 g |
| Packing | 20 pieces per box in source |
| Humidity | ≤85% RH, no condensation |
| Load capacity / operating temperature / IP rating | Not provided |
Selection & installation notes
- The original dimension image labels an M4 mounting point and 20 mm spacing; the prose instead calls it a 4 mm through-hole 10 mm from the top. Confirm the actual threaded/clearance hole and mounting coordinates before fabrication.
- The prose reverses the along-rail dimension description relative to the photograph. Use the labelled image orientation and the confirmed drawing.
- Confirm screw engagement and tightening torque for the actual mating parts; do not assume the source suggestion of 1.0–1.3 N·m applies to every installation.
- No supported-mass or vibration rating is supplied. Confirm bracket count, load centre and retention for the mounted equipment; secure the spring end in the manufacturer-specified orientation.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG electrical accessories — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
