ENMG / CABINET HEATING
CH500 / CH650

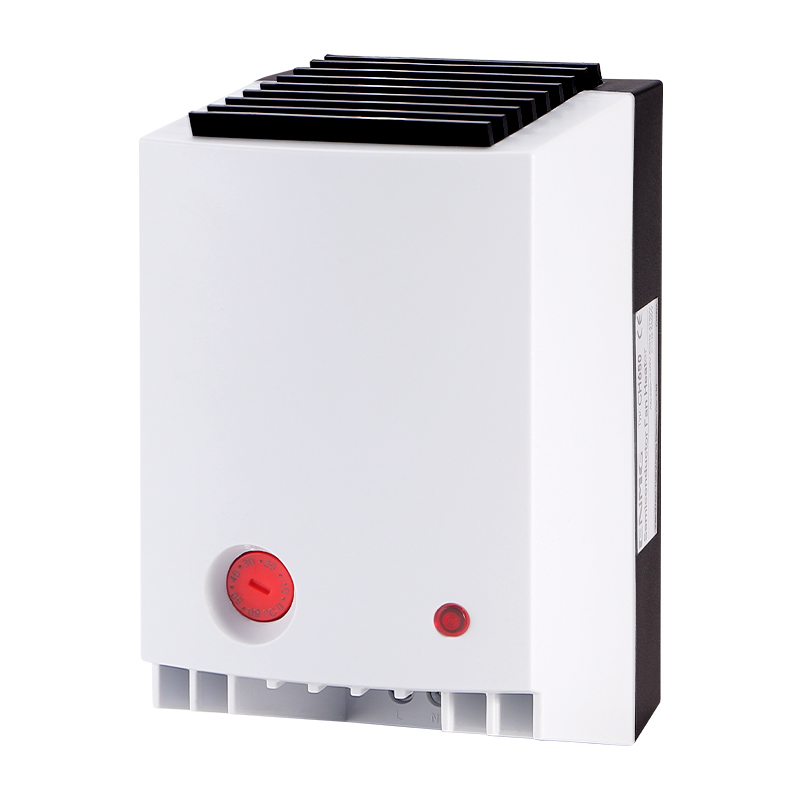

PTC cabinet fan heaters with thermostat
Fan-assisted cabinet heaters with integrated adjustable thermostat and front operation indicator.
Request a quote ↗TECHNICAL DATA / CH500 / CH650
Specifications & selection.
- 500 W and 650 W nominal power classes.
- 0–60 °C thermostat setting range.
- 35 mm DIN-rail mounting, vertical upward airflow.
| Model | Nominal power | Supply in text | Maximum inrush in text |
|---|---|---|---|
| CH500-110VAC | 500 W | 100–120 VAC | 14 A |
| CH500-220VAC | 500 W | 220–240 VAC | 11 A |
| CH650-110VAC | 650 W | 100–120 VAC | 15 A |
| CH650-220VAC | 650 W | 220–240 VAC | 13 A |
| Parameter | Published specification |
|---|---|
| Supply frequency | 50/60 Hz |
| Image power ranges | CH500: 475–700 W; CH650: 550–800 W; image footnote specifies −40 to +40 °C ambient |
| Thermostat setting / differential | 0–60 °C (32–140 °F) / 7 K (±4 K) in text |
| Fan | Ball-bearing axial fan |
| Airflow discrepancy | Image: 18 CFM; text: 35 m³/h for CH500 and 45 m³/h for CH650 |
| Temperature protection | Fan-failure / overtemperature cutout, automatic reset per image |
| Wiring from image | Solid maximum 2.5 mm²; flexible maximum 1.5 mm² with ferrule |
| Terminal torque / strip | Maximum 0.8 N·m / 8–9 mm in text |
| Mounting clearance in text | At least 50 mm above/below and 20 mm at sides; confirm drawing |
| Housing / protection | Light gray, UL94 V-0 material designation in source; IP20 / Class II |
| Environment | −45 to +70 °C; ≤90% RH; no condensation or icing |
| Dimensions discrepancy | Text: H165 × W100 × D128 mm; image: W100 × H128 × L165 mm |
| Mass discrepancy | Text: 0.9 kg CH500 / 1.1 kg CH650; image: approximately 0.9 kg for series |
Selection & installation notes
- The image gives 110–120 VAC for the low-voltage version, while the text gives 100–120 VAC. Verify the exact nameplate before selection.
- The text calls the automatic-reset device a thermal fuse; its construction and reset behavior require clarification. Do not bypass protection or assume a fuse resets.
- The text recommends a 10 A time-delay fuse, but inrush duration and protection coordination are not supplied. Confirm protective-device selection for the circuit.
- Airflow, dimensional orientation and mass differ between the table and image. Obtain a confirmed drawing and performance sheet. PTC power varies with ambient temperature and airflow.
- Mount vertically with the outlet upward and keep the airflow path clear. The text reverses inlet/outlet names in one clearance note; use the unit markings.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG cabinet environment systems — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
