ENMG / AC POWER CONTROLLERS
CPS / CPD
Single-phase power controllers

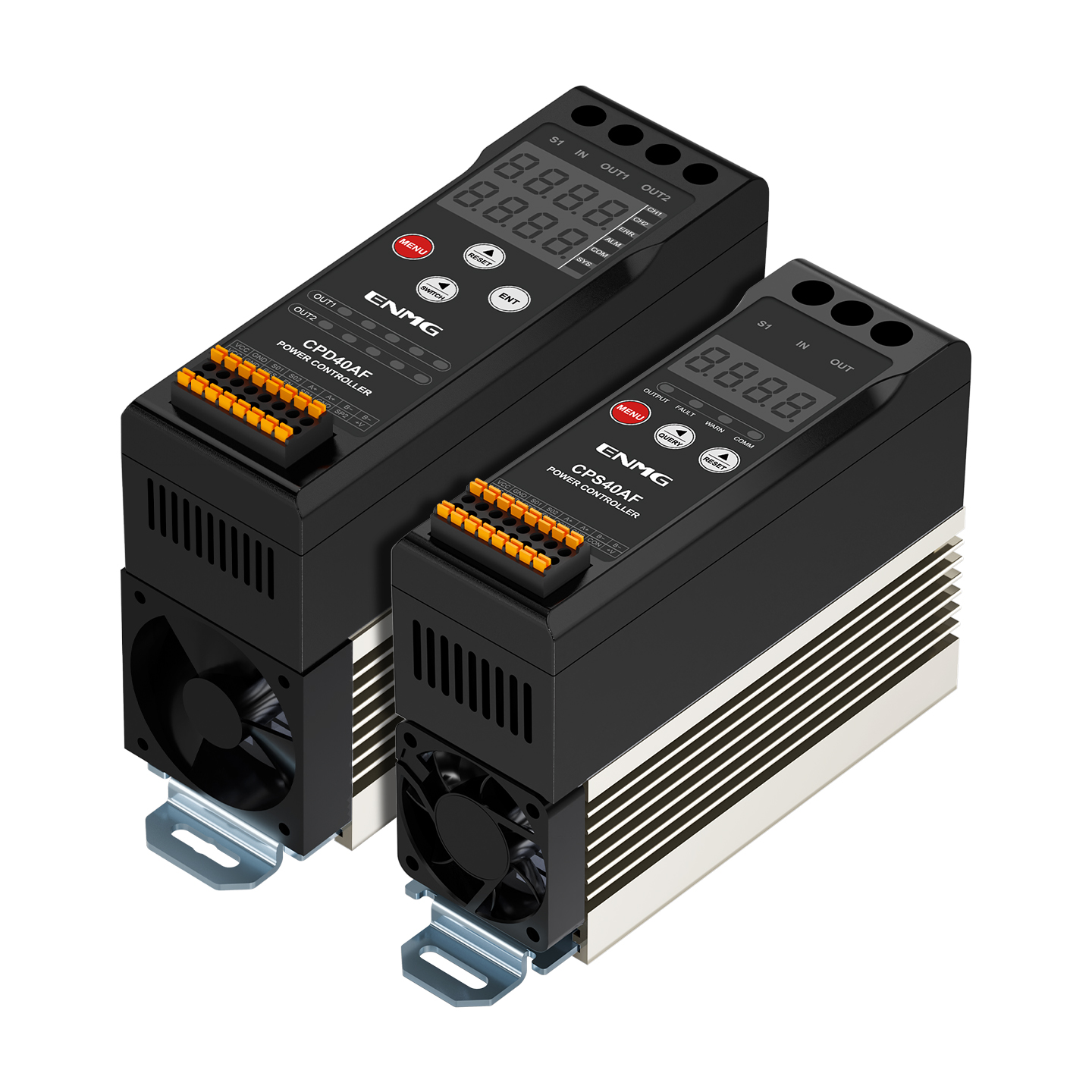

Single- and dual-channel phase-angle controllers for industrial heating, with true-RMS measurement, analog setpoints and RS485 communication.
Request a quote ↗TECHNICAL DATA / CPS / CPD
Specifications & selection.
- Constant-voltage, constant-current, constant-power and open-loop modes.
- 0–10 V,4–20 mA or10 kΩ potentiometer control.
- Separate24 VDC control supply and AC power circuit.
| Model | Channels | Maximum current | Aggregate limit | Approximate mass |
|---|---|---|---|---|
| CPS-20F | 1 | 20 A | 20 A | 500 g |
| CPS-40F | 1 | 40 A | 40 A | 500 g |
| CPD-25F | 2 | 25 A per channel | 25 A total | 600 g |
| CPD-40F | 2 | 40 A per channel | 41 A total in prose — confirm revision | 600 g |
| Parameter | CPS | CPD |
|---|---|---|
| Control supply | 24 VDC recommended;15–30 V range;≤3 W | Same source values |
| Main input | 100–380 VAC;220/380 setting | 100–380 VAC;450 V maximum quoted, not nominal |
| Supply frequency | 50/60 Hz automatic | 50/60 Hz automatic |
| Voltage-input impedance | 100 kΩ | 85 kΩ |
| Current-input impedance | 160 Ω | 160 Ω |
| Default setpoint source | 0–10 V | 4–20 mA |
| Status contact ceiling | 80 VDC /2 A, source recommends≤1 A | 60 VDC /0.55 A |
| Voltage asymmetry / instability | <2% /<0.5% | <2% /<0.5% |
| CPS soft start | F007,0.1 s units; default50=5 s | Obtain exact parameter table |
| Parameter | Value |
|---|---|
| CPD outline | 162.8 ×47 ×99.7 mm; mounting centers145.2 mm,Ø5 mm |
| CPS outline | Not specified; request model drawing |
| Mounting / clearance | 35 mm rail or screw mounting, vertical;≥100 mm around unit in source |
| CPD ambient / enclosure | −25 to +45 °C /IP20 |
| RS485 | Modbus RTU, normally non-isolated |
| Serial defaults | 9600 baud,8N1,address1; allowed addresses1–247 |
| Rates | 4800/9600/19200/38400;CPD also115200 |
| EN input | Closed toGND stops; open runs, source logic |
| RES input | Momentarily close toGND for reset after fault is resolved |
| Item | Prose | Original selection image |
|---|---|---|
| Single-channel names | CPS-20F /CPS-40F | CPS20AF /CPS40AF |
| Dual-channel low-current model | CPD-25F | CPD20AF,20 A |
| Unfanned options | Main prose lists fan versions | CPS20A/40A andCPD20A/40A also shown |
Selection & installation notes
- Confirm full model and revision before ordering: the original selection chart and current prose disagree on the dual-channel low-current rating and naming. They are not assumed interchangeable.
- Two independent control channels do not imply galvanic isolation or two times the total current capacity. Respect both per-channel and aggregate limits.
- CPS and CPD use different parameter numbers, register maps and defaults. Obtain the correct firmware manual; do not reuse register writes across the families or write reserved70–99 registers.
- An EN stop or semiconductor output-off state is not isolation. A shorted thyristor cannot be made safe by a software command alone; coordinate upstream disconnect, fault handling and independent heater protection.
- Select semiconductor fuses and breakers from actual prospective fault current, conductor capacity and deviceI²t, rather than generic current suggestions.
- De-energize both power supplies before wiring or service, wait at least5 minutes as specified, and verify absence of voltage. Keep fan paths clear and connect protective earth.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG control components — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
