ENMG / CABINET HEATING
CSH3B-K
Cabinet heaters with two published power configurations

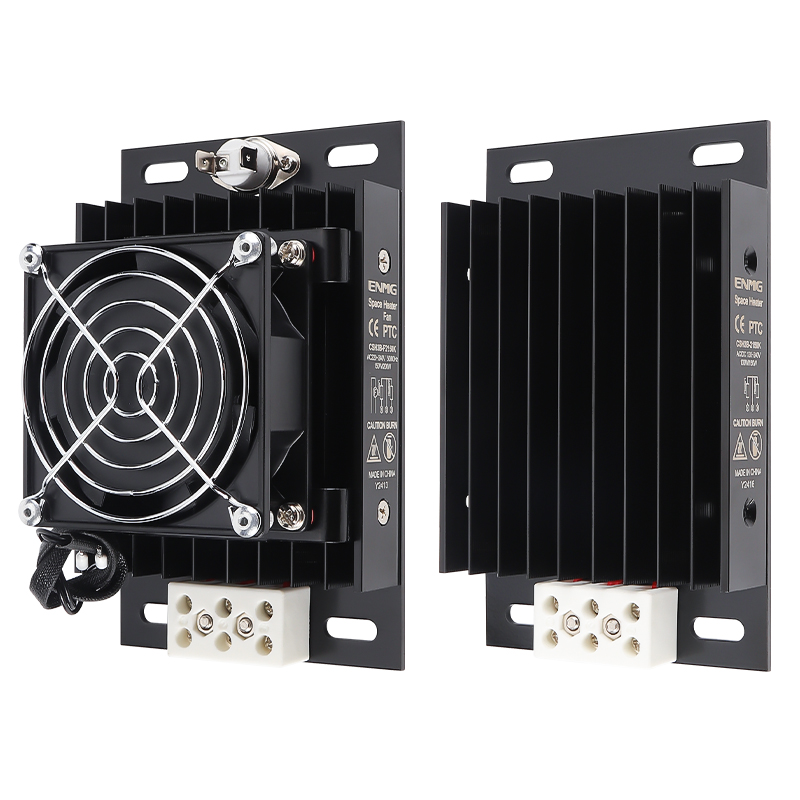

K-series cabinet heaters offered with or without a fan and protective guard, with two power configurations shown in the official selection chart.
Request a quote ↗TECHNICAL DATA / CSH3B-K
Specifications & selection.
- 100 / 150 W chart configurations without fan; 150 / 200 W with fan.
- High-voltage, 24 V and 12 V versions.
- Aluminum heat-transfer body and vertical DIN-rail mounting.
| Basic model | Guarded model | Fan | Use 1 / use 2 | Supply |
|---|---|---|---|---|
| CSH3B-2150K | CSH3B-G2150K | No | 100 / 150 W | 120–240 VAC/DC |
| CSH3B-F2150K | CSH3B-GF2150K | Yes | 150 / 200 W | 220–240 VAC, 50/60 Hz |
| CSH3B-D24150K | CSH3B-GD24150K | No | 100 / 150 W | 24 VAC/DC |
| CSH3B-FD24150K | CSH3B-GFD24150K | Yes | 150 / 200 W | 24 VDC |
| CSH3B-D12150K | CSH3B-GD12150K | No | 100 / 150 W | 12 VAC/DC |
| CSH3B-FD12150K | CSH3B-GFD12150K | Yes | 150 / 200 W | 12 VDC |
| Parameter | Published specification |
|---|---|
| Element identification | Naming image and product label: PTC; page body: nickel-chromium—manufacturer confirmation required |
| Power tolerance | ±20%, 25 °C, vertical with terminals downward; excludes fan power |
| Terminals in text | Spring terminals; 18–12 AWG and 0.5–2.5 mm² are inconsistent; confirm conductor range |
| Strip length in text | 8–9 mm |
| Dielectric / insulation in text | 1500 VAC, 50/60 Hz, 1 minute / 100 MΩ at 500 VDC |
| Operation / storage | −45 to +70 °C / −45 to +120 °C; no condensation or icing |
| Humidity / ingress protection | ≤90% RH / IP20 |
| Protective class | Text simultaneously says Class II and requires earthing; unresolved |
| Mounting | 35 mm DIN rail, vertical, airflow upward |
| Basic no-fan reference outline / mass | W70 × H120 × approximately L80 mm / 0.55 kg |
| Guarded no-fan reference outline / mass | W70 × H125 × approximately L85 mm / 0.70 kg |
| Basic fan reference outline / mass | W70 × H135 × approximately L100 mm / 0.95 kg |
| Guarded fan reference outline / mass | W70 × H145 × approximately L110 mm / 1.10 kg |
Selection & installation notes
- Element type, protective class and terminal construction conflict between page text and product images. Request the exact model datasheet and wiring drawing before selection or connection.
- The selection chart defines two usage configurations but does not establish a safe field switching procedure. Do not rewire under power or infer terminal connections from the order code.
- The general naming image uses a hyphen before K while the selection chart omits it. Order codes above follow the selection chart; confirm the complete manufacturer code.
- Fan versions accept only their listed AC or DC supply; the no-fan AC/DC range does not extend to fan versions.
- Reference dimensions are explicitly estimated in the source. Obtain a production drawing. Use ON/OFF control, allow clearance around hot surfaces, and confirm thermal protection and inrush with the manufacturer.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG cabinet environment systems — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
