ENMG / CABINET HEATING
CSH3B

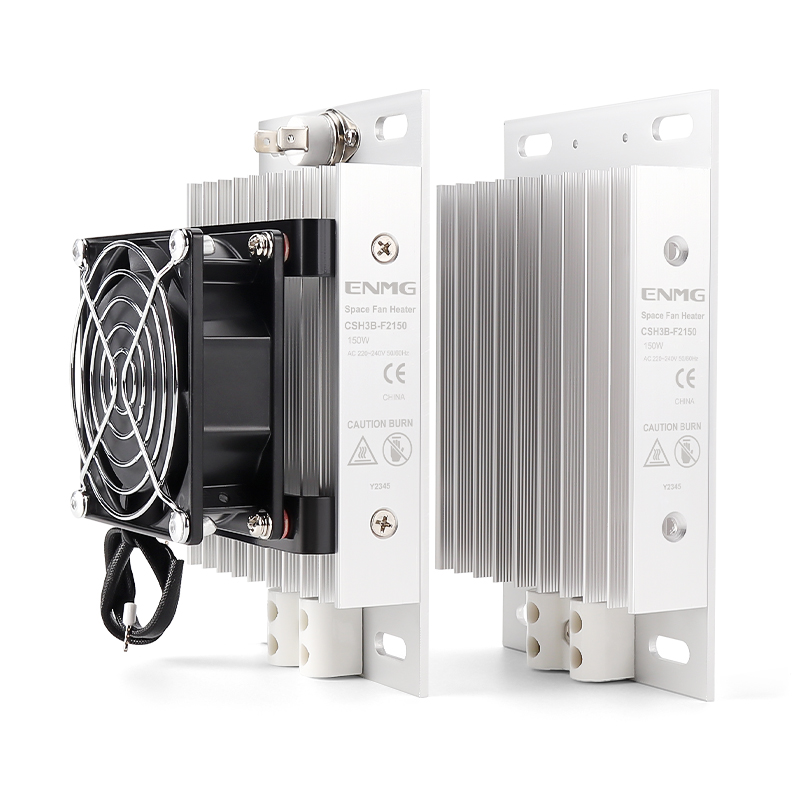

Nickel-chromium cabinet heaters
Standard CSH3B cabinet heaters with aluminum heat-transfer bodies and optional protective guard and fan.
Request a quote ↗TECHNICAL DATA / CSH3B
Specifications & selection.
- 50–200 W options; 12 V versions limited to 50 / 100 W in the chart.
- Bare, guarded, fan and guarded-fan configurations.
- 35 mm DIN-rail mounting, installed vertically with terminals downward.
| Model | Power | Construction | Voltage code |
|---|---|---|---|
| CSH3B-2050 | 50 W | Bare | 2 |
| CSH3B-2100 | 100 W | Bare | 2 |
| CSH3B-2150 | 150 W | Bare | 2 |
| CSH3B-2200 | 200 W | Bare | 2 |
| CSH3B-1050 | 50 W | Bare | 1 |
| CSH3B-1100 | 100 W | Bare | 1 |
| CSH3B-1150 | 150 W | Bare | 1 |
| CSH3B-1200 | 200 W | Bare | 1 |
| CSH3B-D24050 | 50 W | Bare | D24 |
| CSH3B-D24100 | 100 W | Bare | D24 |
| CSH3B-D24150 | 150 W | Bare | D24 |
| CSH3B-D24200 | 200 W | Bare | D24 |
| CSH3B-D12050 | 50 W | Bare | D12 |
| CSH3B-D12100 | 100 W | Bare | D12 |
| CSH3B-G2050 | 50 W | Guard | 2 |
| CSH3B-G2100 | 100 W | Guard | 2 |
| CSH3B-G2150 | 150 W | Guard | 2 |
| CSH3B-G2200 | 200 W | Guard | 2 |
| CSH3B-G1050 | 50 W | Guard | 1 |
| CSH3B-G1100 | 100 W | Guard | 1 |
| CSH3B-G1150 | 150 W | Guard | 1 |
| CSH3B-G1200 | 200 W | Guard | 1 |
| CSH3B-GD24050 | 50 W | Guard | D24 |
| CSH3B-GD24100 | 100 W | Guard | D24 |
| CSH3B-GD24150 | 150 W | Guard | D24 |
| CSH3B-GD24200 | 200 W | Guard | D24 |
| CSH3B-GD12050 | 50 W | Guard | D12 |
| CSH3B-GD12100 | 100 W | Guard | D12 |
| CSH3B-F2050 | 50 W | Fan | 2 |
| CSH3B-F2100 | 100 W | Fan | 2 |
| CSH3B-F2150 | 150 W | Fan | 2 |
| CSH3B-F2200 | 200 W | Fan | 2 |
| CSH3B-F1050 | 50 W | Fan | 1 |
| CSH3B-F1100 | 100 W | Fan | 1 |
| CSH3B-F1150 | 150 W | Fan | 1 |
| CSH3B-F1200 | 200 W | Fan | 1 |
| CSH3B-FD24050 | 50 W | Fan | D24 |
| CSH3B-FD24100 | 100 W | Fan | D24 |
| CSH3B-FD24150 | 150 W | Fan | D24 |
| CSH3B-FD24200 | 200 W | Fan | D24 |
| CSH3B-FD12050 | 50 W | Fan | D12 |
| CSH3B-FD12100 | 100 W | Fan | D12 |
| CSH3B-GF2050 | 50 W | Guard + fan | 2 |
| CSH3B-GF2100 | 100 W | Guard + fan | 2 |
| CSH3B-GF2150 | 150 W | Guard + fan | 2 |
| CSH3B-GF2200 | 200 W | Guard + fan | 2 |
| CSH3B-GF1050 | 50 W | Guard + fan | 1 |
| CSH3B-GF1100 | 100 W | Guard + fan | 1 |
| CSH3B-GF1150 | 150 W | Guard + fan | 1 |
| CSH3B-GF1200 | 200 W | Guard + fan | 1 |
| CSH3B-GFD24050 | 50 W | Guard + fan | D24 |
| CSH3B-GFD24100 | 100 W | Guard + fan | D24 |
| CSH3B-GFD24150 | 150 W | Guard + fan | D24 |
| CSH3B-GFD24200 | 200 W | Guard + fan | D24 |
| CSH3B-GFD12050 | 50 W | Guard + fan | D12 |
| CSH3B-GFD12100 | 100 W | Guard + fan | D12 |
| Code | Without fan | With fan |
|---|---|---|
| 2 | 200–240 VAC/DC | 220–240 VAC, 50/60 Hz |
| 1 | 100–120 VAC/DC | 110–120 VAC, 50/60 Hz |
| D24 | 24 VAC/DC | 24 VDC |
| D12 | 12 VAC/DC | 12 VDC |
| Parameter | Published specification |
|---|---|
| Power tolerance | ±20% at 25 °C, vertical installation and natural convection; excludes fan |
| Terminals | Tool-free spring; source lists 18–12 AWG and 0.5–2.5 mm²; confirm range |
| Strip length | 8–9 mm |
| Dielectric / insulation | 1500 VAC, 50/60 Hz, 1 minute / 100 MΩ at 500 VDC |
| Operation / storage | −45 to +70 °C / −45 to +120 °C |
| Humidity / protection | ≤90% RH, no condensation or icing / IP20 |
| Published life | ≥50,000 hours at 25 °C and rated operation; test basis not supplied |
| Construction | W × H × L, mm | Mass range |
|---|---|---|
| Bare | 70 × 120 × approximately 30 | 0.45–0.85 kg |
| Guard | 70 × 125 × approximately 30 | 0.55–1.00 kg |
| Fan | 70 × 135 × approximately 40 | 0.70–1.20 kg |
| Guard + fan | 70 × 145 × approximately 45 | 0.85–1.40 kg |
Selection & installation notes
- This is the standard CSH3B series, distinct from the -K series. Verify the complete model and AC/DC supply before connection.
- The source simultaneously claims Class II construction and requires earthing. The protective class and earthing arrangement need manufacturer confirmation; no resolved Class II claim is made here.
- Use ON/OFF control as specified in the source. Confirm inrush, overcurrent protection, clearances and thermal protection for the exact heater.
- Reference dimensions are approximate and must not be used as a fabrication drawing. Hot surfaces require suitable placement and protection.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
