ENMG / ENCLOSURE HEATERS
CSH8-T

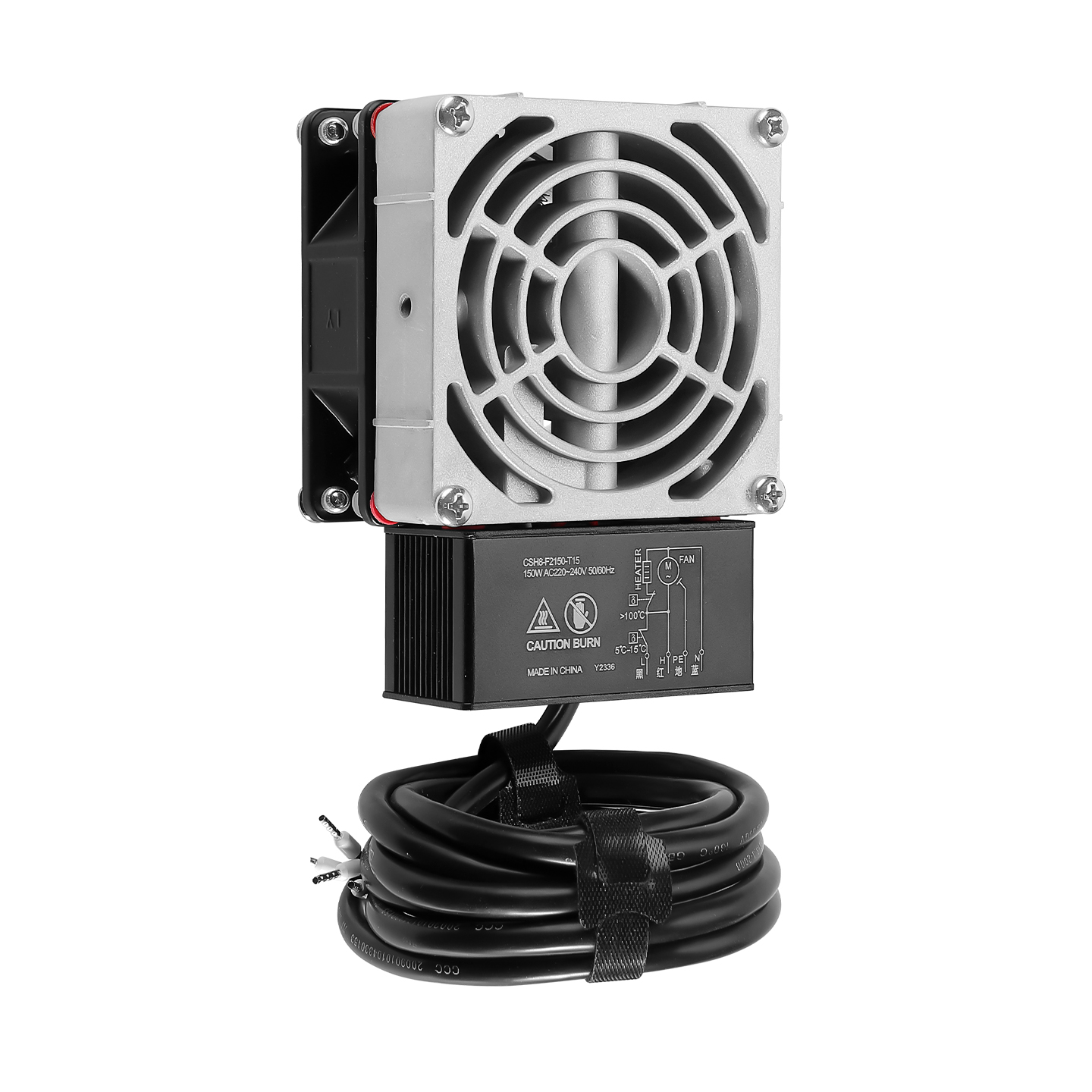

Thermostat-equipped enclosure fan heaters
Cast-aluminum resistance heaters with axial fans, fixed-temperature thermostats, overtemperature protection and a two-metre silicone cable.
Request a quote ↗TECHNICAL DATA / CSH8-T
Specifications & selection.
- 150 W and 300 W versions in the exact selection chart.
- T15: 5–15 °C; T25: 15–25 °C control bands.
- 35 mm DIN and surface mounting brackets described in source.
| T15 model | T25 model | Heating power | Outline | Mass |
|---|---|---|---|---|
| CSH8-F2150-T15 | CSH8-F2150-T25 | 150 W | 116 × 80 × 53 mm; 80 × 25 mm fan | Approximately 700 g |
| CSH8-F2300-T15 | CSH8-F2300-T25 | 300 W | 154 × 120 × 66 mm; 120 × 38 mm fan | Approximately 1150 g |
| Item | Specification |
|---|---|
| Supply | 220–240 VAC, 50/60 Hz |
| Power reference | Measured at 230 V; ±20%; excludes axial fan consumption |
| Switching temperature tolerance | ±5 °C in selection footnote |
| Mass reference | Excludes accessories |
| Cable | 2 m high-temperature silicone sheathed cable |
| Protection | Built-in overtemperature cut-out |
Selection & installation notes
- The naming graphic includes F3 380–400 VAC and additional powers, while the exact T selection chart lists only the four 220–240 VAC models above. Confirm other combinations before ordering.
- Follow the exact cable diagram for heater, fan, thermostat and protective earth. Keep airflow clear and allow the heater to cool before handling.
- Do not substitute basic CSH8 dimensions for this thermostat/cable assembly. Confirm installation clearances, ambient limits and fan consumption for the selected T model.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG cabinet environment systems — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
