ENMG / ENCLOSURE HEATERS
CSP029 / CSP029-EC

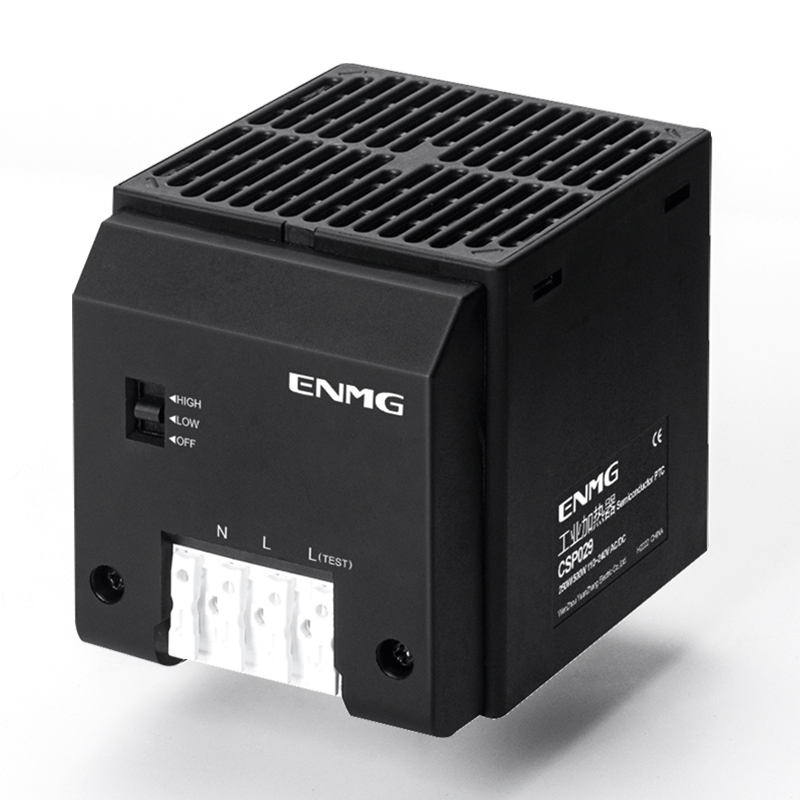

Compact fan-assisted PTC enclosure heaters
Dual-power PTC fan heaters for cabinet warming and condensation prevention, offered with a standard AC fan or an EC pressure-enhanced fan.
Request a quote ↗TECHNICAL DATA / CSP029 / CSP029-EC
Specifications & selection.
- Standard 250 / 400 W; EC 300 / 500 W.
- 86 × 113 × 91 mm enclosure.
- 90 °C automatically resetting overtemperature protection.
| Parameter | CSP029 | CSP029-EC |
|---|---|---|
| Supply | 220–240 VAC, 50/60 Hz | 110–240 VAC/DC in image; prose lists AC only — confirm DC use |
| Low / high heating power | 250 / 400 W | 300 / 500 W |
| Fan | 80 × 80 × 38 mm AC aluminum axial | 80 × 80 × 38 mm EC pressure-enhanced axial |
| Speed / airflow | 2600 rpm / 26 CFM | 4000 rpm / 55 CFM |
| Fan consumption / stated life | 16 VA / 5000 h | ≤10 VA / 5000 h |
| Mass | Approximately 0.55 kg | Approximately 0.43 kg |
| Parameter | Value |
|---|---|
| Heating element | Ceramic PTC |
| Power reference | ±20% at 25 °C; vertical installation with unobstructed convection |
| Starting current / specified fuse | Maximum 15 A / 16 A; confirm exact variant and fuse curve |
| Terminals | WAGO 294-4004, four-position spring terminals in source |
| Wire / strip | 18–12 AWG (0.5–2.5 mm² in source) / 8–9 mm; confirm terminal limits |
| Terminal component current | 24 A; not heater consumption |
| Overtemperature cutoff | 90 °C, automatic reset |
| Enclosure | Flame-retardant reinforced PA66; exact UL94 grade not fully specified |
| Mounting | 35 mm DIN rail; surface screw mounting with separate accessory |
| Withstand / insulation | 1500 VAC, 1 minute / 100 MΩ at 500 VDC |
| Ambient / storage | −40 to +70 °C / −40 to +120 °C; ≤90% RH, no condensation or icing |
| W × H × L / protection | 86 × 113 × 91 mm / IP20, Class II in source |
Selection & installation notes
- The EC supply image includes DC, while prose says AC only. Confirm the complete heater/fan supply compatibility before DC operation; the stated 265 V maximum is not a new nominal supply rating.
- The source Class II label and generic grounding instruction are inconsistent. Follow the exact heater terminal markings and insulation design, and bond the cabinet as required.
- Use ON/OFF temperature control; the source excludes PWM or voltage-dimming power control. Allow for PTC cold-start current and coordinate supply switching and fuse protection.
- Mount vertically with warm air upward and clear space around the outlet. Do not cover or touch hot surfaces. Repeated thermal trips require investigation before reuse.
- Both fan versions list 5000 h; a longer EC fan lifetime is not established by the comparison table.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
