ENMG / ENCLOSURE HEATERS
CSP030

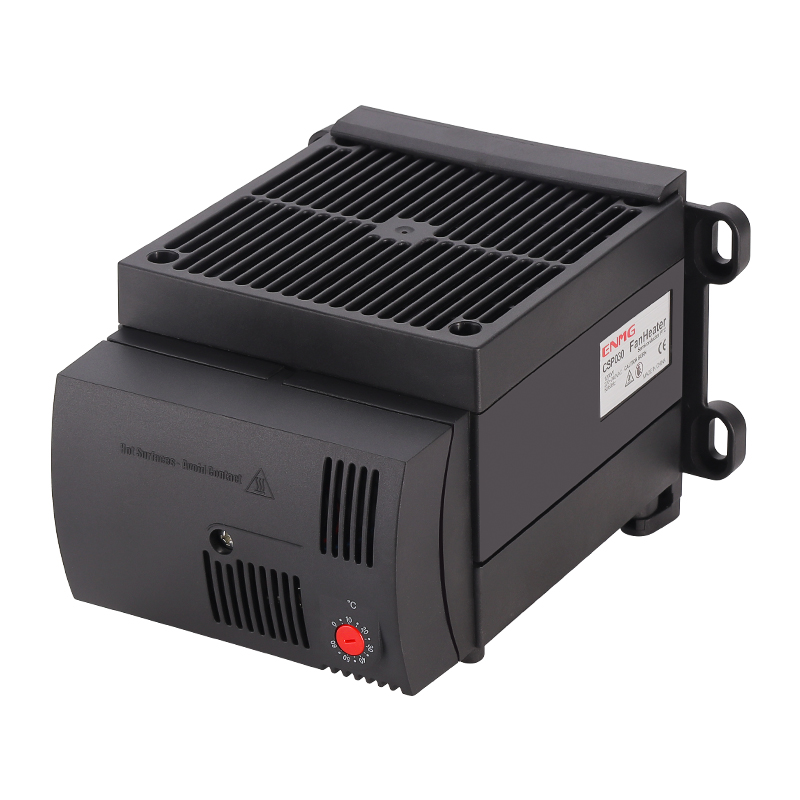

1200 W PTC enclosure fan heater with thermostat
High-output PTC cabinet heater with an adjustable thermostat and forced-air circulation for industrial enclosures.
Request a quote ↗TECHNICAL DATA / CSP030
Specifications & selection.
- 1200 W nominal heating output.
- Integrated 0–60 °C adjustment knob.
- 160 m³/h published airflow and automatic-reset overtemperature protection.
| Parameter | Specification |
|---|---|
| Supply | 220–240 VAC, 50/60 Hz |
| Power | 1200 W; ±20% at 25 °C in the stated test arrangement |
| Thermostat range | 0 to +60 °C / +32 to +140 °F |
| Element | Ceramic PTC |
| Airflow | 160 m³/h |
| Thermal protection | Automatic reset for overheating / fan fault |
| Parameter | Specification |
|---|---|
| Mounting | 35 mm DIN or four M6 screws; vertical, outlet upward |
| Conductors | Solid maximum 2.5 mm²; flexible with pin terminal maximum 1.5 mm² |
| Maximum terminal torque | 0.8 N·m |
| Housing | Flame-retardant engineering plastic; source states UL94-V0 |
| Protection designation | IP20 / Class II in technical chart |
| Ambient | −45 to +70 °C; maximum 90% RH; no condensation or icing |
| Outline / mass | Source text: W120 × H70 × L275 mm / approximately 1.3 kg; verify drawing |
Selection & installation notes
- Keep the outlet unobstructed and allow the heater to cool before handling. Confirm required cabinet clearances and switching-device inrush capability.
- Use ON/OFF control; the source excludes phase-voltage and PWM power regulation for this PTC heater. Do not bypass thermal protection.
- The source gives inconsistent external-thermostat series/parallel instructions. Obtain the exact wiring diagram before adding an external controller.
- The chart lists Class II while generic prose mentions earthing. Follow the actual heater class and terminals; cabinet bonding is a separate installation requirement.
- The life row contains a unit inconsistency in the image; no guaranteed life is stated here. Confirm the outline because the source lacks a dedicated dimension drawing.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
