CSP13

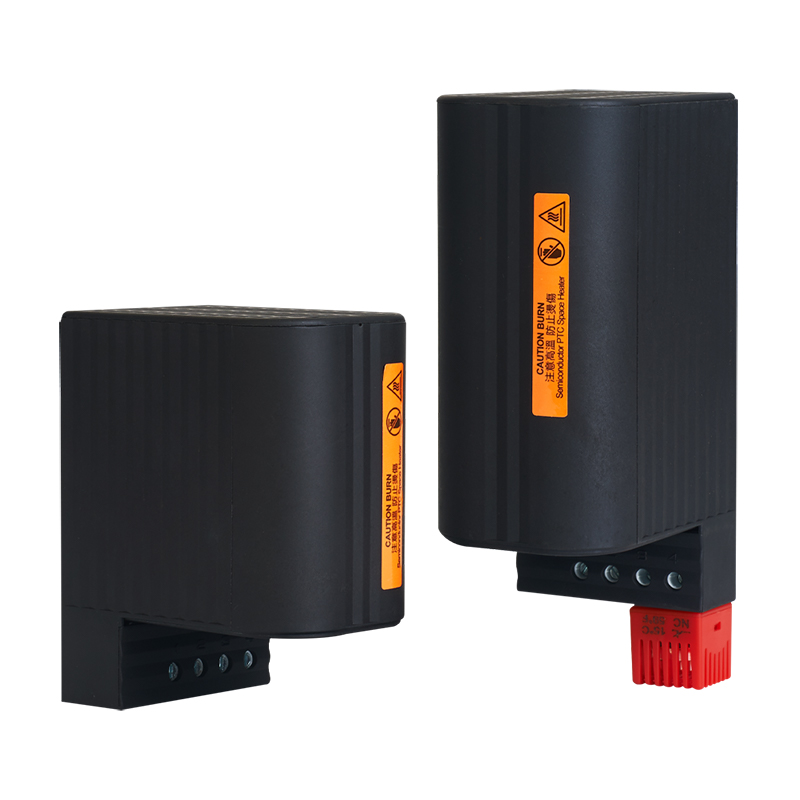

Guarded PTC cabinet heaters
Natural-convection PTC heaters with a protective housing for cabinet heating and condensation prevention.
Request a quote ↗TECHNICAL DATA / CSP13
Specifications & selection.
- 50, 100 and 150 W variants.
- 120–240 VAC/DC supply range.
- Vertical 35 mm DIN-rail installation.
| Model | Power | W × H × L | Mass |
|---|---|---|---|
| CSP13-2050 | 50 W | 60 × 90 × 110 mm | 0.30 kg |
| CSP13-2100 | 100 W | 60 × 90 × 110 mm | 0.30 kg |
| CSP13-2150 | 150 W | 60 × 90 × 150 mm | 0.50 kg |
| Parameter | Published specification |
|---|---|
| Heating element | Ceramic semiconductor PTC |
| Rated supply | 120–240 VAC/DC; text additionally lists 110–265 V limits—confirm |
| Power tolerance | ±20% at 25 °C; vertical, terminals downward, indoor natural convection |
| Dielectric / insulation | 1500 VAC, 50/60 Hz, 1 minute / 100 MΩ at 500 VDC |
| Operation / storage | −45 to +70 °C / −45 to +120 °C |
| Humidity | ≤90% RH; no condensation or icing |
| Terminals in text | Spring terminals; wire range is inconsistent, confirm exact terminal |
| Strip length in text | 8–9 mm |
| Ingress protection in text | IP20 |
Selection & installation notes
- The image identifies an engineering-plastic housing; the text describes a metal guard. Confirm the ordered construction and included thermostat/accessories. A guard does not make the hot outlet safe to touch.
- The text explicitly estimates dimensions and mass from power density and differs from the image. The selection table above follows the image; obtain a production drawing before layout.
- The source claims Class II while requiring earthing. Confirm the protective class and earthing arrangement for the exact unit.
- Use ON/OFF control as specified, keep ventilation openings clear and mount vertically. The text gives 100 mm between heaters; confirm clearances and protective-device coordination for the installation.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
