ENMG / ENCLOSURE FANS
EAF / ETF

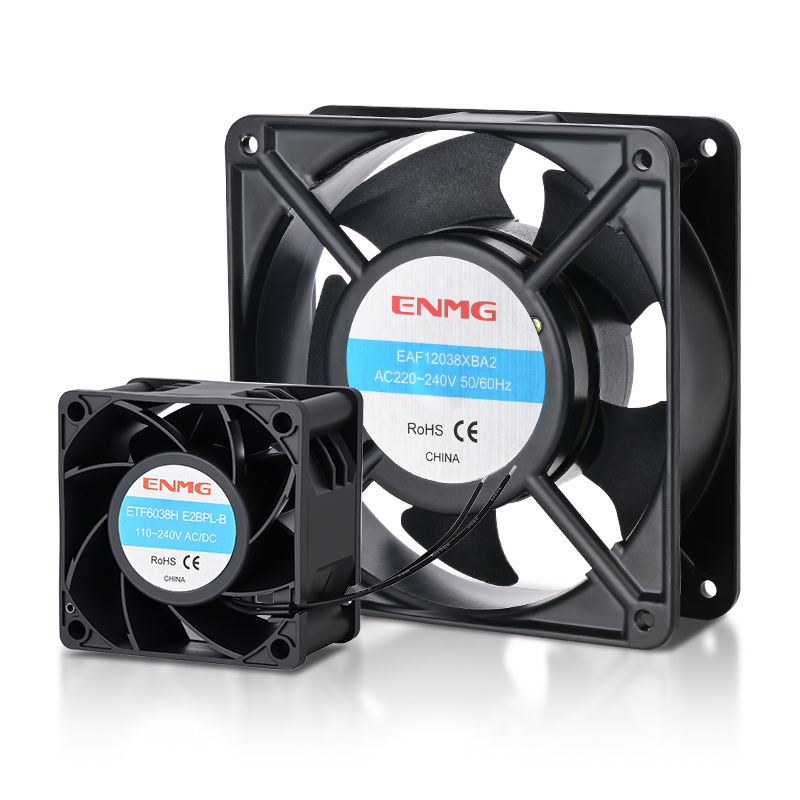

AC/DC axial fans and pressure-enhanced fans
Compact enclosure ventilation fans in 60, 80 and 120 mm frame sizes, with supply-specific EAF axial, ETF pressure-enhanced and EDF DC variants.
Request a quote ↗Email insteadPRODUCT PHOTOS
EAF / ETF gallery
Select a thumbnail to enlarge. EAF and ETF fans, related EDF models and a mounting bracket are shown; confirm the exact model and supply voltage when ordering.
TECHNICAL DATA / EAF / ETF
Specifications & selection.
- Eight models listed in the current English brochure.
- Published airflow spans 21–140 CFM.
- Working temperature −30 to +65 °C.
| Model | Frame mm | Supply | Power | Speed | Airflow | Housing |
|---|---|---|---|---|---|---|
| ETF6038H E2BPL-B | 60 × 60 × 38 | 110–240 VAC/DC | 2 W | 3900 rpm | 21 CFM | Plastic |
| ETF8025H E2BPL | 80 × 80 × 25 | 110–240 VAC/DC | 4 W | 3500 rpm | 48 CFM | Plastic |
| ETF8038H E2BPL-B | 80 × 80 × 38 | 110–240 VAC/DC | 6 W | 4000 rpm | 50 CFM | Plastic |
| ETF12038H E2BPL-B | 120 × 120 × 38 | 110–240 VAC/DC | 15 W | 4000 rpm | 140 CFM | Plastic |
| EAF8025H A2BPL | 80 × 80 × 25 | 220–240 VAC, 50/60 Hz | 17 W | 2500 rpm | 30 CFM | Aluminum alloy |
| EAF12038X A2BPL | 120 × 120 × 38 | 220–240 VAC, 50/60 Hz | 23 W | 2500 rpm | 35 CFM | Aluminum alloy |
| EDF12025M-D24BPL-B | 120 × 120 × 25 | 24 VDC | 4.08 W | 2700 rpm | 82.11 CFM | Plastic |
| EDF12038M-D48BPL-B | 120 × 120 × 38 | 48 VDC | 6.24 W | 3000 rpm | 113.89 CFM | Plastic |
Selection & installation notes
- The current brochure marks column-wrapping construction for the three listed ETF -B models. Confirm the exact construction and protection requirements for the selected unit.
- Airflow is the published fan value; installed flow depends on filters and cabinet resistance. Pressure curves, noise, ingress protection, lifetime and mass are not specified in the extracted chart.
- Match the exact AC/DC supply printed on the fan; the shared family title does not make every fan universal-input.
- Confirm mounting holes, airflow direction, guarding, connector and earth requirements from the exact drawing. Frame dimensions alone are not a panel cutout specification. Isolate power before installation or servicing.
- Gallery images also show variants that are not listed in this brochure table. Confirm their current availability and ratings with ENMG.
Selection-table source: ENMG EAF & ETF English technical specification (filename edition YZ266I21), PDF page 2 (printed page 01). Model availability is confirmed separately.
TECHNICAL RESOURCES
Plan your integration.
EAF and ETF cabinet axial fans — English technical specification, YZ266I21.
Confirm the exact fan model, supply voltage and installation dimensions against this technical specification before ordering.
