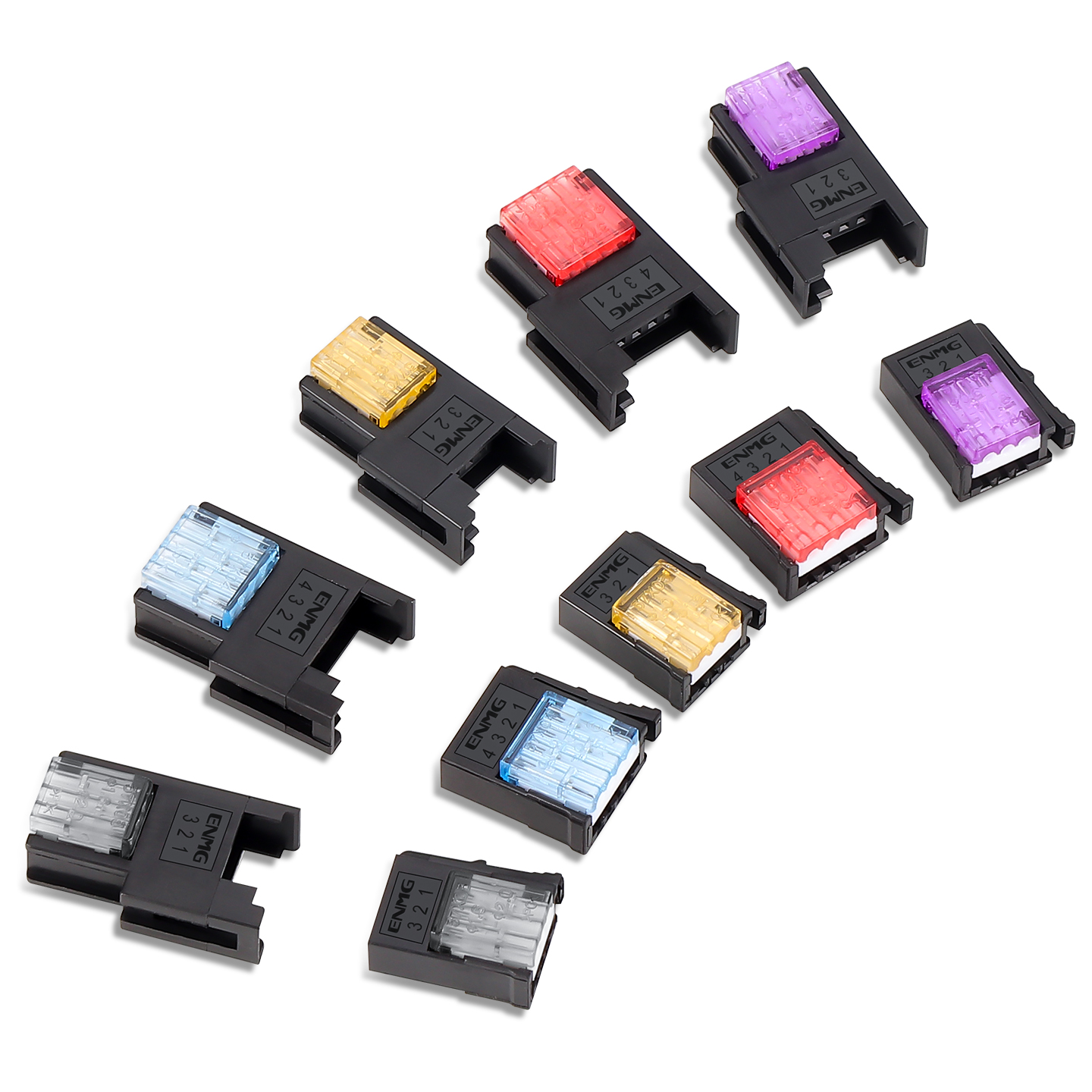

Mini-clamp sensor connectors and PCB sockets
Insulation-displacement connectors for three- and four-wire sensors, with color-coded insulation ranges, PCB sockets and a four-way splitter.
Request a quote ↗TECHNICAL DATA / ECON
Specifications & selection.
- No wire stripping required for compatible cables.
- Transparent cover for checking wire insertion; nickel-underplated, gold-plated phosphor-bronze contacts.
- Five cable-size colors and matching 3/4-wire plugs and sockets.
| Color / code | AWG | Insulation diameter, mm | Conductor area, mm² |
|---|---|---|---|
| Purple / PU | 24–26 | 0.6–0.8 | 0.13–0.21 |
| Red / RE | 24–26 | 0.8–1.0 | 0.13–0.21 |
| Yellow / YW | 24–26 | 1.0–1.2 | 0.13–0.21 |
| Blue / BL | 20–22 | 1.2–1.6 | 0.32–0.5 |
| Gray / GR | 20–22 | 1.6–2.0 | 0.32–0.5 |
| Color | Conductors | Plug | Socket |
|---|---|---|---|
| Purple | 3 | ECON-PU03-P | ECON-PU03-S |
| Purple | 4 | ECON-PU04-P | ECON-PU04-S |
| Red | 3 | ECON-RE03-P | ECON-RE03-S |
| Red | 4 | ECON-RE04-P | ECON-RE04-S |
| Yellow | 3 | ECON-YW03-P | ECON-YW03-S |
| Yellow | 4 | ECON-YW04-P | ECON-YW04-S |
| Blue | 3 | ECON-BL03-P | ECON-BL03-S |
| Blue | 4 | ECON-BL04-P | ECON-BL04-S |
| Gray | 3 | ECON-GR03-P | ECON-GR03-S |
| Gray | 4 | ECON-GR04-P | ECON-GR04-S |
| Model | Configuration |
|---|---|
| ECON-B031 | 3 pins × 1 positions |
| ECON-B032 | 3 pins × 2 positions |
| ECON-B034 | 3 pins × 4 positions |
| ECON-B041 | 4 pins × 1 positions |
| ECON-B042 | 4 pins × 2 positions |
| ECON-B044 | 4 pins × 4 positions |
| ECON-4-4S | 4-wire input, 4 branch receptacles |
| Parameter | Specification |
|---|---|
| Rated voltage / current | Below 32 VAC/DC / maximum 3.0 A; observe temperature derating |
| Initial contact resistance | ≤50 mΩ |
| Insulation resistance | ≥1000 MΩ at 600 VDC / 1 minute |
| Dielectric withstand | 1000 VAC / 1 minute |
| Insertion force | ≤200 gf per pin at 5 mm/min |
| Withdrawal force | 50 gf per pin |
| Pitch | 2.00 mm |
| Ambient at 1 / 2 / 3 A | −20 to +85 °C / −20 to +75 °C / −20 to +60 °C |
| Reference condition | 25 °C unless otherwise specified |
| Part | Published material / finish |
|---|---|
| Insulator | PA nylon, black, UL94 V-0 stated |
| Top cover | PC polycarbonate, five colors, UL94 V-0 stated |
| Base cover | PA, white, UL94 V-0 stated |
| Contacts | Phosphor bronze, nickel underplate and gold surface |
Selection & installation notes
- Choose by both conductor size and insulation diameter. Color is a selection aid; verify pin count, pinout and mating compatibility.
- The ESTB accessory chart gives different yellow/blue insulation ranges (yellow 1.0–1.4 mm; blue 1.4–1.6 mm). Confirm the exact connector revision before ordering.
- Insert each wire fully and inspect through the cover. Do not exceed the stated current-dependent ambient limit.
- Outline dimensions, mass, soldering temperature/time and mating-cycle life are not provided; request the model-specific drawing and assembly instructions.
- Disconnect power before insertion/removal, grip the connector body and provide strain relief in vibrating equipment.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG wiring terminals — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
