Fused DC power distribution terminals

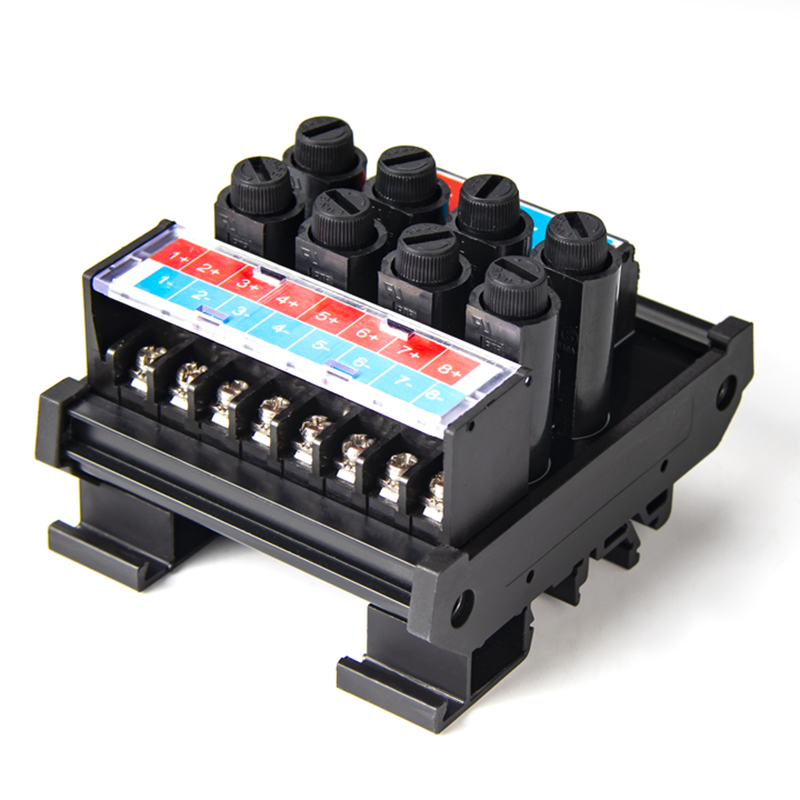

DIN rail modules for distributing DC power to multiple branch circuits, with a 5 × 20 mm glass fuse and blown-fuse indicator for each branch.
Request a quote ↗TECHNICAL DATA / EPTB
Specifications & selection.
- 8- and 16-branch standard models with positive/negative power distribution.
- Individual blown-fuse LEDs for locating a failed branch.
- Barrier screw terminals and 35 mm DIN rail mounting.
| Model | Branches | L × W × H (mm) | Mass | Standard fuse |
|---|---|---|---|---|
| EPTB-08Y-F02L | 8 | 73 × 87 × 58 | 200 g | 5 × 20 mm, 2 A |
| EPTB-16Y-F02L | 16 | 134 × 87 × 58 | 340 g | 5 × 20 mm, 2 A |
| Parameter | Specification |
|---|---|
| Working voltage options | 5 / 12 / 24 VDC |
| Total input current | 30 A maximum |
| Branch hardware current limit | 10 A maximum; actual permitted current is also limited by the fitted fuse and wiring |
| Standard fuse | 2 A glass fuse, diameter 5 × length 20 mm |
| Other fuse values listed | 0.5 / 1 / 3 / 5 / 8 / 10 A; confirm approved configuration |
| Dielectric strength | 1,500 VAC, 50/60 Hz, 1 min |
| Insulation resistance | ≥100 MΩ at 500 VDC |
| LED indication | Individual indicator lights when the corresponding fuse blows |
| Parameter | Specification |
|---|---|
| Supply side | M4 barrier screw; 9.5 mm pitch; 30 A / 300 V terminal rating; 1.2 N·m torque |
| Branch side | M3 barrier screw; 7.62 mm pitch; 15 A / 300 V terminal rating; 0.5 N·m torque |
| Wire range in source table | 22–12 AWG; supply 4 mm² and branch 2.5 mm² also stated — confirm actual terminal wire range |
| Parameter | Specification |
|---|---|
| Rail | 35 mm DIN rail, EN 60715 TH35 |
| Operating temperature | −10 to +50°C, no condensation or ice |
| Humidity | 45–85% RH |
| Housing | Flame-retardant engineering plastic |
| Reference test temperature | 25°C unless otherwise stated |
| Customization | Other branch counts, fuse values, LED colours and common-bus configurations on request |
Selection & installation notes
- Do not run a standard 2 A-fused branch at the 10 A hardware limit. Select protection for the load, conductor and approved module configuration; never increase fuse size solely to stop nuisance operation.
- Observe the 30 A total-input limit. Terminal component voltage ratings do not raise the module’s stated 5/12/24 VDC working-voltage options.
- The source lists inconsistent AWG/mm² limits, including 12 AWG and 2.5 mm² on the branch side. Obtain the exact terminal wire specification before wiring.
- Isolate power before wiring or replacing fuses. Clear the fault first and fit an approved fuse of the required rating; never bridge a fuse with wire.
- Use the specified 1.2 N·m supply and 0.5 N·m branch terminal torque. Confirm rail retention and avoid vibration, corrosive gases, dust and direct sunlight.
- Dimensions and masses are reference values. Request the installation drawing for customized versions.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
