ENMG / SENSOR INTERFACES
ESCR

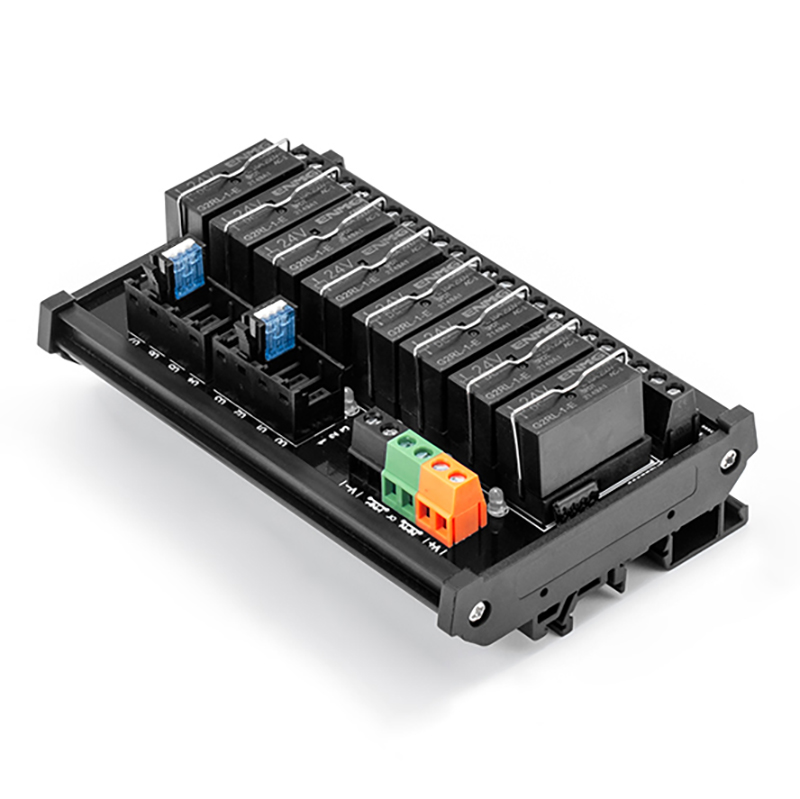

Sensor-to-relay signal conversion modules
Interfaces that convert three-wire photoelectric or proximity-sensor signals to independent changeover relay outputs.
Request a quote ↗TECHNICAL DATA / ESCR
Specifications & selection.
- Jumper-selectable NPN/PNP operation.
- Plug-in ENMG G2RL-1-E relays in gold-plated PCB sockets.
- Insulation-displacement sensor connectors and screw or spring output terminals.
- 35 mm DIN-rail or surface-screw mounting.
| Channels | Cage screw terminals | Spring terminals | Relay class | L × W × H |
|---|---|---|---|---|
| 4 | ESCR-GL04S | ESCR-GL04M | G2RL-1-E, SPDT 1C, 16 A | 70 × 87 × 50 mm |
| 8 | ESCR-GL08S | ESCR-GL08M | G2RL-1-E, SPDT 1C, 16 A | 130 × 87 × 50 mm |
| Item | Information |
|---|---|
| Sensor input | Three-wire photoelectric / proximity sensors |
| Mode selection | NPN/PNP jumper |
| Status indication | Source: green for NPN; red for PNP |
| GL relay code | ENMG G2RL-1-E |
| M relay code in naming diagram | OMRON G2R alternative; complete selection not listed |
| Final S / M suffix | Cage screw / spring terminal |
Selection & installation notes
- The 16 A figure is the relay class; the source does not establish the complete assembly load-voltage/current rating or simultaneous-channel limit. Confirm these before selection.
- Confirm sensor supply voltage, input thresholds, connector wire range, output load category and terminal wiring data; these are not listed in the page.
- Set the jumper with power isolated and verify the sensor NPN/PNP mode before connecting.
- Request the exact module drawing and environmental specification, especially for alternatives using the M relay code.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG wiring terminals — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
