ENMG / SWITCH ACCESSORIES
ESDS-K
Actuator keys for safety door switches
Matched stainless-steel actuator keys for the ENMG ESDS and ESDL guard-switch families, with fixed and adjustable mounting options.
Request a quote ↗TECHNICAL DATA / ESDS-K
Specifications & selection.
- 304 stainless steel according to official product text.
- Horizontal, vertical and adjustable configurations.
- K2 standard for ESDS; K5 standard for ESDL.
| Model | Mounting direction | Adjustment | Listed compatibility | Standard pairing |
|---|---|---|---|---|
| ESDS-K1 | Horizontal | Fixed | ESDS / ESDL | Optional |
| ESDS-K2 | Vertical | Fixed | ESDS / ESDL | ESDS |
| ESDS-K3 | Horizontal | Adjustable | ESDS / ESDL | Optional |
| ESDS-K4 | Horizontal / vertical | Two directions | ESDS | Optional |
| ESDS-K5 | Horizontal / vertical | Two directions | ESDL | ESDL |
| Parameter | Published value |
|---|---|
| Insertion force | Maximum 15 N |
| Withdrawal force | Maximum 30 N with lock released where applicable |
| ESDS pretravel / total travel | 6 ±3 mm / 28 mm |
| ESDL pretravel / locking travel | Maximum 9 mm / at least 5 mm |
| Key dimensions / mounting holes / mass | Not specified; request the selected key drawing |
Selection & installation notes
- This is a mechanical actuator accessory. Switch current, enclosure IP rating and locking-force figures are not standalone key ratings.

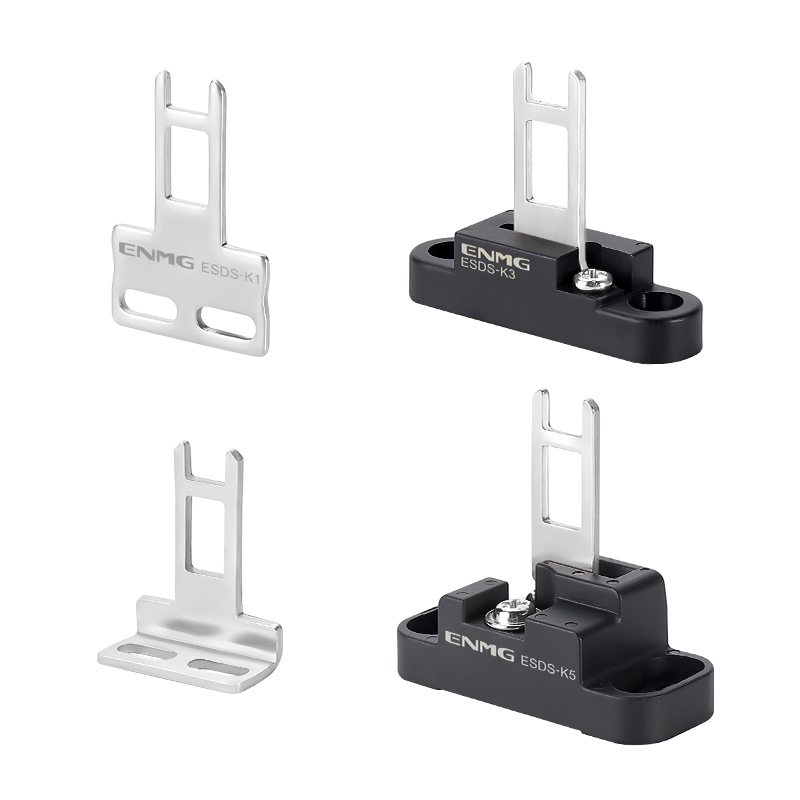

- Compatibility must be verified for the complete switch and head revision. The photograph shows representative actuator shapes, not a dimensioned identification chart for every code.
- Secure the actuator to the guard in its intended alignment. Use manufacturer-approved matching parts and never use a spare actuator to defeat an interlock.
- Check insertion, withdrawal and locking travel with the exact assembly and follow the machine commissioning procedure.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG safety products — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
