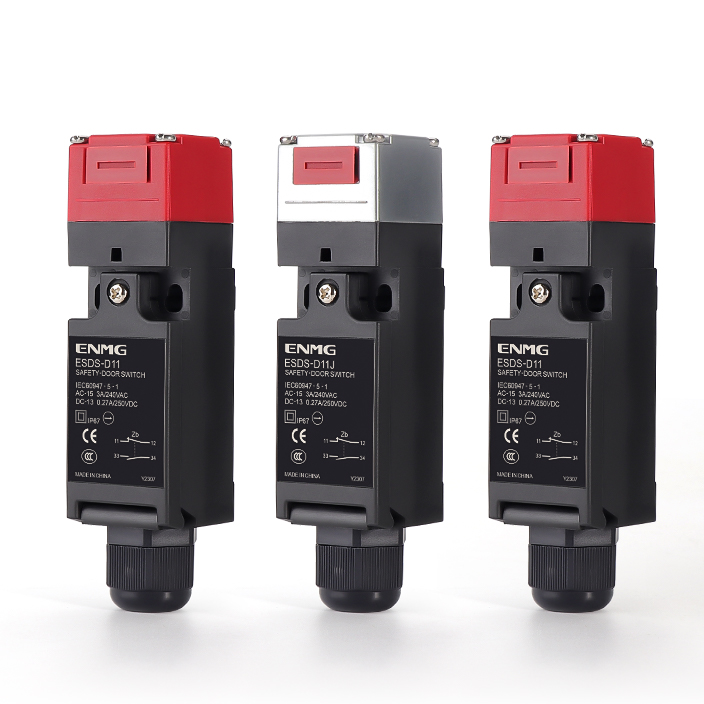

Key-operated guard-door interlock switches
Mechanical key-operated switches for detecting guard-door position, with slow-action contact combinations and plastic or metal heads.
Request a quote ↗TECHNICAL DATA / ESDS
Specifications & selection.
- 1 NO + 1 NC, 2 NC, 1 NO + 2 NC and 3 NC options.
- Four-direction adjustable head.
- IP65, Class II construction stated in source.
| Contacts | Plastic head | Metal head |
|---|---|---|
| 1 NO + 1 NC | ESDS-D11 | ESDS-D11-J |
| 2 NC | ESDS-D02 | ESDS-D02-J |
| 1 NO + 2 NC | ESDS-D12 | ESDS-D12-J |
| 3 NC | ESDS-D03 | ESDS-D03-J |
| Parameter | Source value |
|---|---|
| AC-1 / DC-1 | 10 A at 250 VAC / 10 A at 30 VDC |
| AC-15 | 3 A at 250 VAC; 2 A at 400 VAC |
| DC-13 in shared prose | 3 A at 125 VDC; 0.5 A at 250 VDC; confirm current technical sheet before design |
| Ith / Ui | 10 A / 500 V |
| Contact / minimum load | Gold-plated alloy slow-action; ≤25 mΩ / 1 mA at 5 VDC |
| Insulation | ≥100 MΩ at 500 VDC |
| Withstand in prose | 2500 VAC same-pole; 4000 VAC between poles; 6000 VAC live-to-metal; duration not stated |
| Parameter | Value |
|---|---|
| Actuator insertion / withdrawal force | Maximum 15 / 30 N |
| Positive opening | Source lists >60 N force and ≥10 mm travel; exact test conditions required |
| Pretravel / total travel | 6 ±3 / 28 mm in source |
| Mechanical / electrical life | ≥1 million / ≥300,000 operations; exact electrical load required |
| Operating speed | 0.05–0.5 m/s |
| Ambient | −30 to +70 °C; <90% RH, no condensation or icing |
| Reference outline / mass | 30.6 × 30 × 90 mm / approximately 96 g; confirm head and gland envelope |
| Actuator | ESDS-K2 standard; matched K1/K3/K4 alternatives |
| Cable entry | PG11 in technical table; naming prose also states Pg13.5 — confirm |
Selection & installation notes
- ESDS detects guard position and does not provide the ESDL electromagnetic guard-locking function. Do not apply the ESDL 1300 N locking figure to ESDS.
- Verify the exact positive-opening contacts, actuator engagement and complete machine safety circuit. No PL or SIL rating is established by this page.
- Use only the matched actuator, mount it securely and prevent unintended defeat. The switch must not serve as a mechanical door stop.
- Confirm the current electrical categories, gland thread, terminal torque and installation drawing. IP65 requires correct seals and glands and does not permit prolonged immersion or pressure washing.
- Isolate power before wiring or adjusting the head; verify contact transitions and interlock behavior after installation.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG safety products — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
