ENMG / CABINET TEMPERATURE AND HUMIDITY CONTROL
ETH11

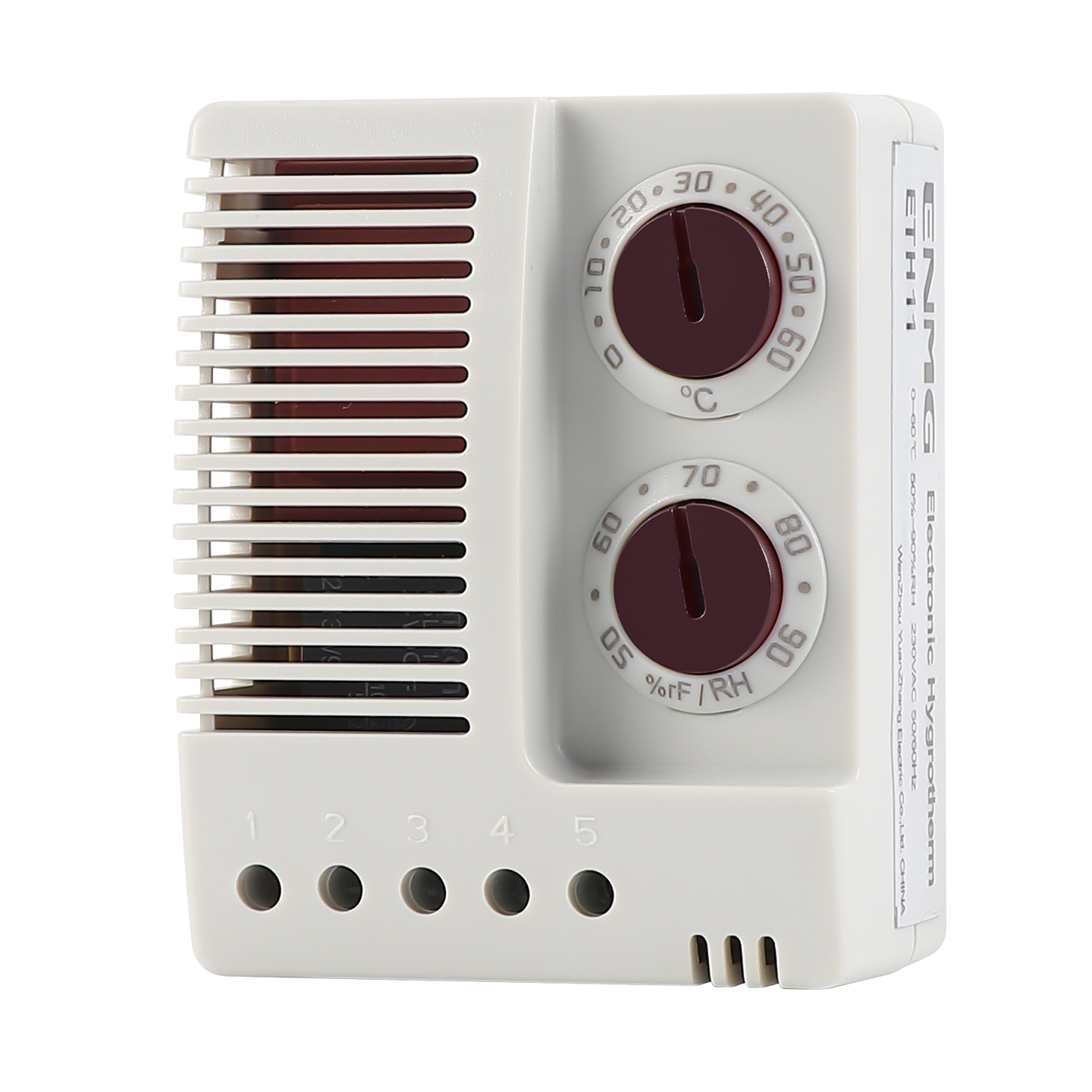

Combined electronic temperature and humidity controller
A cabinet controller with built-in temperature and humidity sensing, two illuminated setting dials and one SPDT relay output.
Request a quote ↗TECHNICAL DATA / ETH11
Specifications & selection.
- Temperature setting 0–60 °C.
- Humidity setting range depends on the published specification variant.
- Heating demand is indicated when either temperature or humidity condition is active.
| Parameter | Published specification |
|---|---|
| Temperature setting | 0–60 °C |
| Humidity setting discrepancy | Technical PNG: 35–90% RH; detailed image and photographed scale: 50–90% RH |
| Differential in specification tables | 2 K (±1 K) / 4% RH (±1% RH), at 25 °C and 50% RH |
| Illustrated switching example | Temperature ±3 °C and humidity ±5% RH around settings; differs from specification tables |
| Response | 5 seconds |
| Supply variants in technical PNG | 200–240 VAC 50/60 Hz; 100–120 VAC; 24 VDC |
| Supply in detailed image | 230 VAC (220–240 V), 50/60 Hz |
| Output | One SPDT changeover relay |
| Load discrepancy | Summary/PNG: 16 A at 250 VAC / 30 VDC; detailed image: NO 10(4) A, NC 5(2) A at 250 VAC / 30 VDC |
| Contact resistance | ≤50 mΩ |
| Terminals | 5-pole screw terminal; maximum 0.5 N·m |
| Conductors | Solid 2.5 mm² or flexible 1.5 mm² |
| Outline / mass | L77 × W60 × H43 mm / 0.25 kg |
| Mounting | 35 mm DIN rail, vertical |
| Housing | Gray ABS; source specifies UL94 V-0 material |
| Operation / storage | 0–60 °C / −20 to +80 °C |
| Humidity / protection | ≤90% RH, no condensation or icing / IP20 |
| Condition | Published behavior |
|---|---|
| Temperature below lower threshold | Temperature indicator on |
| Temperature above upper threshold | Temperature indicator off |
| Humidity above upper threshold | Humidity indicator on |
| Humidity below lower threshold | Humidity indicator off |
| Either or both indicators on | Heating output demand on |
| Both indicators off | Heating output demand off |
Selection & installation notes
- The page contains incompatible supply, humidity-range and output-current specifications. Request the exact ETH11 variant datasheet before ordering; do not assume a universal 16 A load rating.
- The source does not define the parenthesized load categories in the detailed image. Confirm AC/DC and inductive-load limits, inrush and any required contactor.
- One relay combines the two demand conditions; this is not two independently wired control outputs. Confirm hysteresis, supply pinout and contact diagram on the supplied unit.
- Install in representative cabinet air and isolate both operating and load supplies before wiring. No variant suffixes have been invented for the listed supply choices.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
