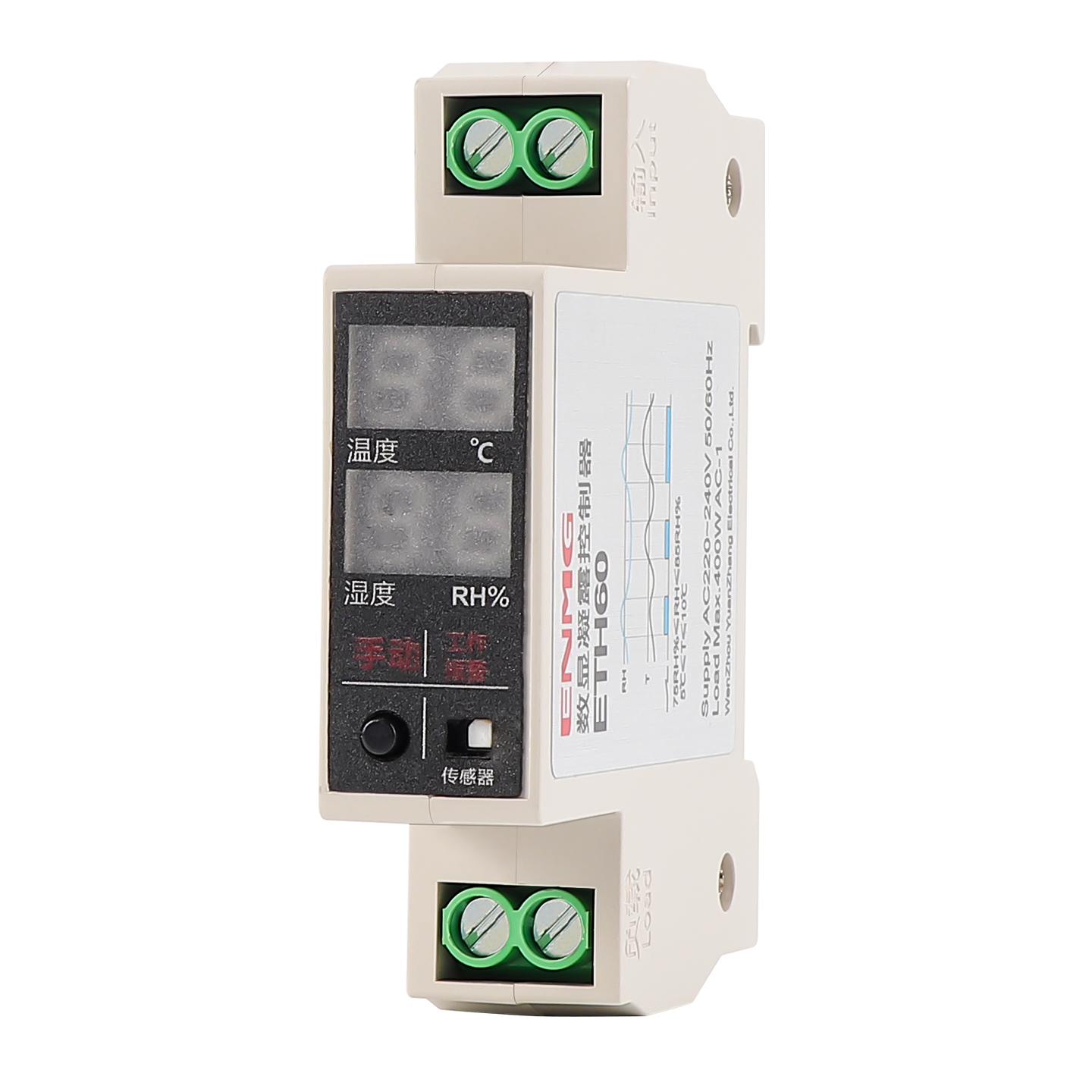

ETH60
Digital anti-condensation controller
A compact temperature and humidity controller for electrical cabinets, with an internal sensor and relay output for an external resistive heater. Heating starts when temperature is low or humidity is high and stops once both return within the reset thresholds.
Request a quote ↗TECHNICAL DATA / ETH60
Specifications & selection.
- Built-in MCU and digital temperature/humidity sensor; no external probe required.
- Two 2-digit LED displays with normal, threshold, fault and output indicators.
- Factory-set thresholds, manual mode and forced-test button.
| Parameter | Specification |
|---|---|
| Supply | 220–240 VAC, 50/60 Hz |
| Consumption | Approx. 0.5 VA |
| Control | ON/OFF |
| Temperature start / reset | ≤5°C / ≥10°C |
| Humidity start / reset | ≥85% RH / ≤75% RH |
| Temperature accuracy | ±1°C |
| Humidity accuracy | ±8% RH |
| Maximum resistive load | 400 W |
| Relay contact rating | 2 A at 250 VAC |
| Load monitoring | Built-in load-disconnection monitoring |
| Parameter | Specification |
|---|---|
| Temperature range | −6 to +60°C |
| Humidity range | 35–95% RH |
| Temperature codes | TH: upper limit; TL: lower limit or sensor open circuit |
| Humidity codes | HH: upper limit/open circuit; HL: short circuit, according to source notes |
| Threshold indication | Green below 80% RH; yellow above 80% RH; separate from the 85% start setting |
| Fault response | Output off and fault indicator on, as described by source |
| Parameter | Specification |
|---|---|
| Body L × W × H | 80 × 18.7 × 68.5 mm |
| Terminal projection | Approx. 8 mm beyond body; allow wiring clearance |
| Mass | Approx. 60 g |
| Mounting | 35 mm DIN rail |
| Housing | Flame-retardant engineering plastic |
| Protection | IP20, indoor installation |
| Operating temperature | −30 to +60°C; no condensation or ice |
| Storage temperature | −30 to +90°C; no condensation or ice |
| Operating humidity | Below 90% RH at 25°C |
| Altitude | Below 2,000 m |
| Reference test temperature | 25°C unless otherwise stated |
Selection & installation notes
- Use resistive heaters only, within both 400 W and the relay rating; do not connect motors or contactor coils directly.
- Thresholds are factory-set and not user-adjustable. Request specified settings for custom orders.
- Connect supply to the top terminals and load to the bottom terminals according to the unit label. Mount vertically and keep the internal sensor away from direct heater airflow.
- The source describes forced-test lamp behaviour separately from normal fault indication. Confirm the test procedure before diagnosing an open load.
- Avoid condensation, ice, corrosive gases, strong vibration and electromagnetic interference. Isolate power before wiring.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
