ENMG / RELAY SOCKETS
G2R-1-SSG / G2R-2-SSG

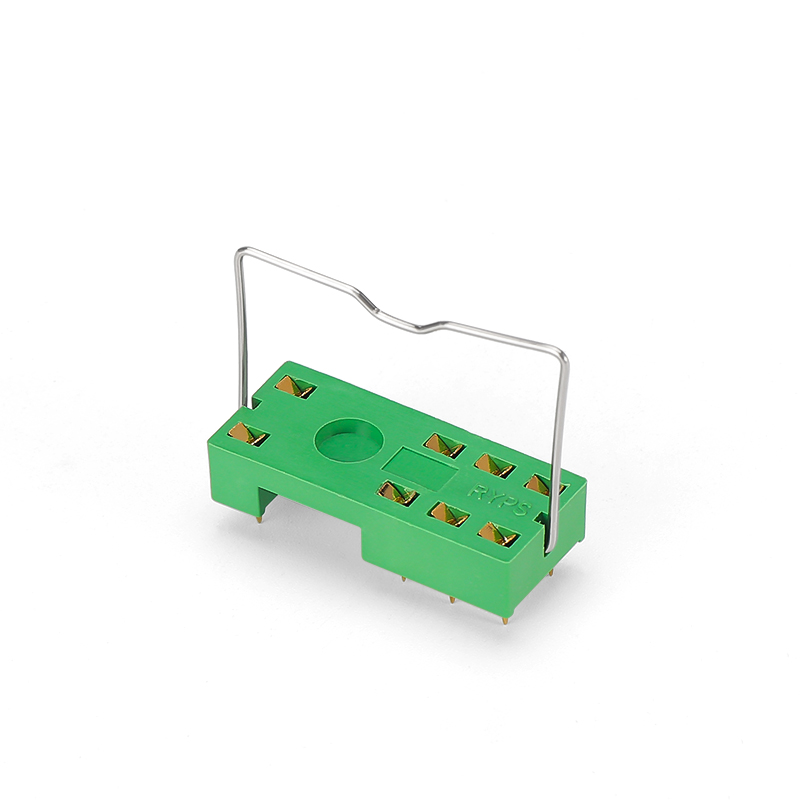

PCB relay sockets with stainless spring clips
Through-hole sockets for compatible G2R, G2RL and SSK relays, with a stainless spring retaining clip.
Request a quote ↗TECHNICAL DATA / G2R-1-SSG / G2R-2-SSG
Specifications & selection.
- 5-pin / 3.5 mm and 8-pin / 5.0 mm selections.
- Green housing and gold-plated contacts in the selection image.
- Plug-in relay servicing without desoldering.
| Model | Pins | Published pitch | Electromechanical relays | Solid-state relays |
|---|---|---|---|---|
| G2R-1-SSG | 5 | 3.5 mm | G2R-1 / G2RL-1 | SSK4A / SSK3D / SSK4D |
| G2R-2-SSG | 8 | 5.0 mm | G2R-2 / G2R-1-E / G2RL-2 / G2RL-1-E | SSK10D / SSK4K |
| Type | 5-pin / 8-pin |
|---|---|
| Spring terminals | RSZE05P / RSZE08P |
| Cage screw terminals | RSZE2M35M / RSZE2M48M |
Selection & installation notes
- Verify the complete PCB footprint and relay pinout before manufacture. Fully seat and solder socket pins and inspect for solder bridges.
- Obtain socket current, voltage, insulation, solder temperature/time, outline and environmental limits; the source does not provide these independently. Do not substitute relay ratings for socket ratings.
- Isolate the circuit before inserting or removing a relay. Release its retaining clip before removal and avoid stressing PCB solder joints.
- The published pitch is a selection reference, not a complete PCB drilling drawing. Confirm all pin coordinates and hole sizes.
- The spring clip is a retaining feature; the page supplies no numerical vibration test rating.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
