G38F

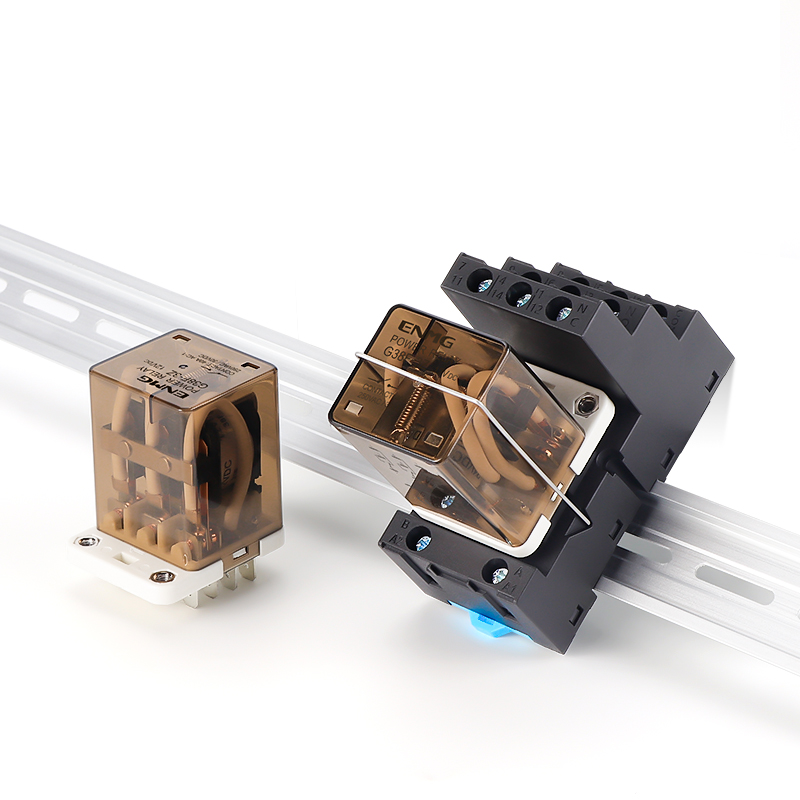

High-capacity 3PDT power relays
Three-pole changeover power relays with 40 A normally-open and 30 A normally-closed contact limits, in multiple mounting configurations.
Request a quote ↗TECHNICAL DATA / G38F
Specifications & selection.
- NO 40 A / NC 30 A; resistive load application.
- Flange, socket, rear-ear and sealed PCB versions.
- Optional RPHE11S 35 mm DIN socket.
| Model | Mounting |
|---|---|
| G38F-3C | Base flange |
| G38F-S3C | Socket |
| G38F-B3C | Rear ears |
| G38F-Y3C | Sealed PCB |
| Parameter | Specification |
|---|---|
| Contact voltage | 250 VAC / 30 VDC |
| Contact form / material | 3PDT / silver alloy |
| Initial resistance / minimum load | ≤100 mΩ / 100 mA at 5 VDC |
| Standard coils | 12 / 24 VDC; 24 / 110 / 220 / 380 VAC |
| AC coil bands in prose | 110:100–120; 220:200–240; 380:380–400 VAC |
| Coil power | DC <1.5 W / AC <2.5 VA |
| Operate / release threshold | DC ≤75% / ≥10%; AC ≤80% / ≥30% rated |
| Maximum coil voltage | 110% rated; confirm duty conditions |
| Withstand: open contact / poles / coil-contact | 1200 / 1500 / 1500 Vrms, 50/60 Hz, 1 minute |
| Insulation resistance | 100 MΩ at 500 VDC |
| Electrical / mechanical life | 10,000 at rated AC-1 load / 100,000 operations |
| Operation / storage | −25 to +55 °C / −40 to +125 °C |
| Humidity / body mass | 35–80% RH non-condensing / approximately 135 g |
| Parameter | Value |
|---|---|
| Pins / current / insulation voltage | 11 / 40 A / Ui 500 V |
| Terminals | M4-14 screw |
| Solid / stranded wire | 0.5–4 / 0.5–3.5 mm² with ferrule for stranded |
| Protection / mounting | IP20 / 35 mm DIN or screws |
| Overall assembly dimensions in prose | 49.5 × 95.5 × 97 mm; verify full drawing |
| Separate B/Y outline | Exact model drawing required |
Selection & installation notes
- The generic selection row says 40 A, but normally-closed contacts are limited to 30 A. Do not apply the NO rating to NC paths.
- The source mixes relay-body and socket-assembly dimensions. Treat 49.5 × 95.5 × 97 mm as an assembly reference pending the exact drawing; body mass excludes socket.
- Socket Ui 500 V and its wider temperature range do not increase relay contact voltage or complete-assembly ambient limits.
- Use the load category and verified derating for motors, inductive and capacitive loads. Do not parallel poles to increase current. Isolate all circuits before replacement.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
