G58F-1C

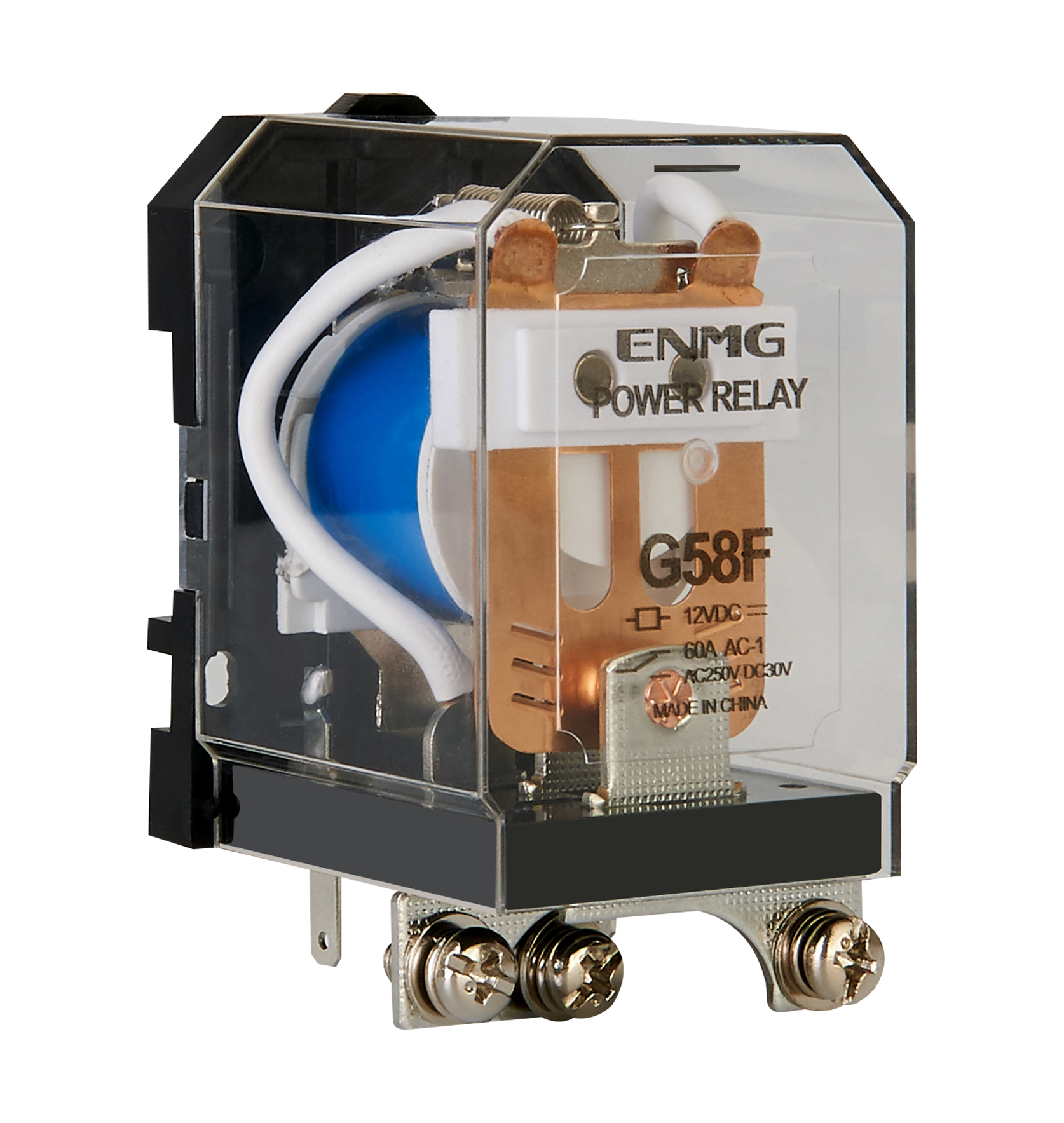

60 A SPDT high-capacity power relay
A single-pole changeover electromagnetic relay for high-current resistive loads, with a transparent cover and DIN-rail or panel mounting.
Request a quote ↗TECHNICAL DATA / G58F-1C
Specifications & selection.
- SPDT silver tin oxide contacts.
- 60 A at 250 VAC / 30 VDC in the source resistive-load table.
- AC or DC coil versions selected at ordering.
| Order code | Coil |
|---|---|
| G58F-1C 12VDC | 12VDC |
| G58F-1C 24VDC | 24VDC |
| G58F-1C 24VAC | 24VAC |
| G58F-1C 110VAC | 110VAC |
| G58F-1C 220VAC | 220VAC |
| G58F-1C 380VAC | 380VAC |
| Parameter | Published specification |
|---|---|
| Contact form / material | SPDT, 1C / silver tin oxide alloy |
| Rated resistive load | 60 A at 250 VAC / 30 VDC; AC-1 designation applies to AC |
| Maximum switching current / voltage | 60 A / 250 VAC or 125 VDC; not simultaneous maxima |
| Initial contact resistance | ≤100 mΩ |
| Minimum load | 100 mA at 5 VDC |
| Coil consumption | DC ≤2.0 W; AC ≤4.5 VA |
| Operate threshold | DC ≤75%; AC ≤80% of nominal coil voltage |
| Release threshold | DC ≥10%; AC ≥30% of nominal coil voltage |
| Maximum coil voltage | 110% nominal, short time only; duration not specified |
| Contact dielectric strength | ≥1500 Vrms, 50/60 Hz, 1 minute |
| Coil–contact dielectric strength | ≥2500 Vrms, 50/60 Hz, 1 minute |
| Insulation resistance | 1000 MΩ at 500 VDC |
| Electrical life | 10,000 cycles, 1 second on / 1 second off |
| Mechanical life | 100,000 cycles, 300 operations/minute in source |
| Contact terminals | M5 screw terminals |
| Coil terminals | 0.8 × 4.0 mm tin-plated brass |
| Mounting | 35 mm DIN rail / four M3 panel screws |
| Outline / mass | W48 × H51 × L80 mm, ±1 mm / approximately 168 g |
| Operation / storage | −25 to +55 °C / −40 to +125 °C |
| Humidity | 35–80% RH; no condensation or icing |
Selection & installation notes
- The source lists 6–220 VDC and 6–440 VAC as family coil options; these are not the input range of one relay. Match the ordered coil to its supply.
- The source associates 380 VAC coils with 380–440 VAC yet limits short-time voltage to 110% of nominal. Confirm this variant range before applying an upper-end supply.
- Use a manufacturer load curve for DC voltages above 30 V or inductive and motor loads. The maximum voltage and current cannot be combined into a load rating.
- Confirm terminal torque, conductor sizing, mounting drawing and operating/release times, which are not supplied. LED and suppression are custom options, not included in standard codes.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
