G62F

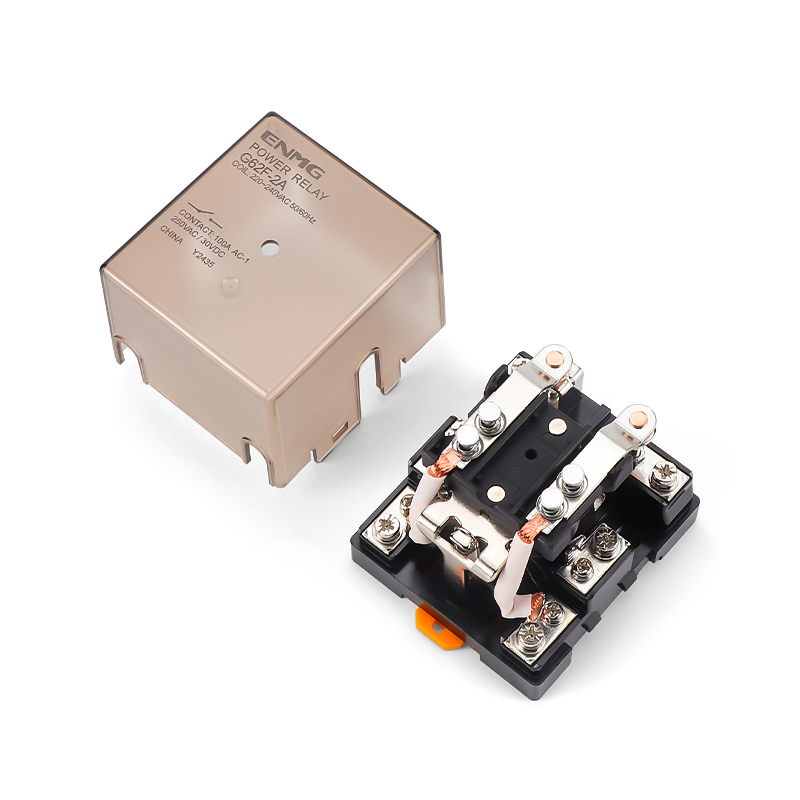

100 A screw-terminal power relays
High-current electromagnetic relays with SPDT, DPST-NO or DPDT contacts and DIN or surface mounting options.
Request a quote ↗TECHNICAL DATA / G62F
Specifications & selection.
- 100 A at 250 VAC / 28 VDC, resistive class.
- AgSnO₂In₂O₃ contact alloy.
- 12/24 VDC and 220 VAC coils; other voltages by confirmed custom order.
| Model | Contacts | Outline (mm) | Reference mass |
|---|---|---|---|
| G62F-1C | SPDT | 74 × 64 × 58 | 264 g |
| G62F-2A | DPST-NO | 74 × 64 × 58 | 270 g |
| G62F-2C | DPDT | 93 × 64 × 58 | 313 g |
| Parameter | Published value |
|---|---|
| Coil power | DC ≤3 W / AC ≤10 VA |
| Operate / release threshold | DC ≤75% / ≥10%; AC ≤80% / ≥30% rated |
| Maximum coil voltage | 110% rated |
| Initial contact resistance | ≤100 mΩ |
| Withstand: open contacts / poles / coil-contact | ≥1500 / ≥2500 / ≥2500 VAC, 50 Hz, 1 minute |
| Insulation resistance | ≥1000 MΩ |
| Mechanical life | 1 million operations; stated test 300 per minute |
| Electrical life in technical image | 100,000 operations; 1 s ON / 1 s OFF |
| Ambient | −25 to +55 °C |
| Terminal / socket | Screw terminals / JQX-62F referenced |
| Enclosure | Closed PC body; exact IP rating not given |
Selection & installation notes
- The catalogue title mentions 100–120 A, but the detailed image specifies 100 A resistive. No 120 A operating rating is established here.
- Electrical life is 100,000 in the original image but only 1,000 in the prose. Obtain the exact load-life report before selecting a maintenance interval.
- Dimensions are source measurements and weights are explicitly same-type references. Confirm the actual unit, mounting holes, conductor size, screw torque and socket capacity for a 100 A installation.
- Resistive ratings do not establish motor or contactor-duty capacity. Confirm load category, inrush, thermal limits and protective-device coordination. Do not insert or remove under power.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
