G7L / G20F

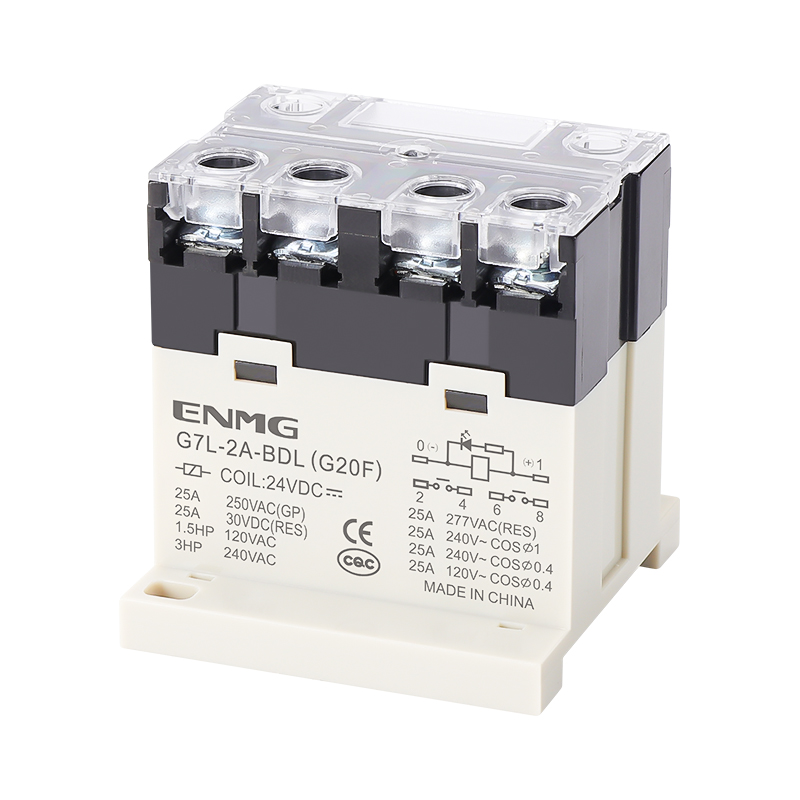

Industrial power relay family
Power relays for industrial load switching. The detailed ratings below apply to G7L; the Chinese page names G20F but does not provide a separate G20F specification.
Request a quote ↗TECHNICAL DATA / G7L / G20F
Specifications & selection.
- 1A: one normally open contact; 2A: two normally open contacts.
- BDL: screw/DIN-rail mounting, indicator and test button; TUB: 6.35 mm quick-connect terminals and upper mounting bracket; P: PCB mounting.
| Model | Coil supply |
|---|---|
| G7L-2A-BDL-12 | 12 VDC |
| G7L-2A-BDL-24 | 24 VDC |
| G7L-2A-BDL-220 | 220–240 VAC |
| G7L-2A-TUB-12 | 12 VDC |
| G7L-2A-TUB-24 | 24 VDC |
| G7L-2A-TUB-220 | 220–240 VAC |
| G7L-2A-P-12 | 12 VDC |
| G7L-2A-P-24 | 24 VDC |
| Mount / contact | Resistive (cos φ = 1) | Inductive (cos φ = 0.4) | Rated-load endurance |
|---|---|---|---|
| BDL / 1A | 30 A at 250 VAC | 25 A at 250 VAC | 50,000 operations |
| BDL / 2A | 25 A at 277 VAC | 25 A at 277 VAC | 50,000 operations |
| TUB / 1A or 2A | 25 A at 277 VAC | 25 A at 277 VAC | 50,000 operations |
| P / 1A or 2A | 25 A at 277 VAC | 25 A at 277 VAC | 50,000 operations |
| Rated supply | Current | Resistance | Power |
|---|---|---|---|
| 12 VDC | 158 mA | 75 Ω | Approx. 1.9 W |
| 24 VDC | 79 mA | 303 Ω | Approx. 1.9 W |
| 220–240 VAC | 8.5–10.2 mA | Not specified | 1.7–2.5 VA |
| Parameter | Value |
|---|---|
| Operate / release voltage | ≤75% / ≥15% of rated coil voltage |
| Maximum coil voltage | 110% of rated |
| Contact material / gap | Silver alloy / 3 mm |
| Initial contact resistance | ≤50 mΩ, at 5 VDC / 1 A |
| Operate / release time | ≤30 ms |
| Insulation resistance | ≥1,000 MΩ at 500 VDC |
| Coil-to-contact dielectric strength | 4,000 VAC, 50/60 Hz, 1 min |
| Between contacts of same / different polarity | 2,000 VAC, 1 min |
| Impulse withstand | 10,000 V, 1.2 × 50 μs |
| Vibration | 10–55 Hz; 1.5 mm double amplitude |
| Shock: destructive / malfunction | 1,000 / 100 m/s² |
| Mechanical endurance | ≥1,000,000 operations at 1,800 operations/hour |
| General-table electrical endurance | ≥100,000 operations at 1,800 operations/hour; see duty-specific note |
| Ambient temperature / humidity | −25 to +60°C, no freezing / 35–85% RH |
| Housing flammability | UL 94 V-0 |
| Mounting type | Maximum outline (L × W × H, mm) | Approx. mass |
|---|---|---|
| BDL | 69 × 55.5 × 65.5 | 120 g |
| TUB | 68.5 × 60 × 47 | 90 g |
| P | 52.5 × 35.5 × 41 | 100 g |
Selection & installation notes
- Order code: G7L-[1A or 2A]-[BDL, TUB or P]-[coil code]. Verify the exact available combination.
- The source gives 50,000 operations in the load-rating table and ≥100,000 in the general characteristics table. Use the duty-specific rating and request endurance confirmation for your load.
- Mount upright with the coil up; secure DIN-mounted BDL units with rail end stops. Use suitable RC/MOV suppression for inductive loads.
- The test button mechanically forces the contacts. Do not operate it during normal powered service. Avoid condensation, freezing, corrosive atmospheres and dust.
- Request a dedicated G20F datasheet before selecting G20F; G7L ratings must not be applied to it.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
