GK

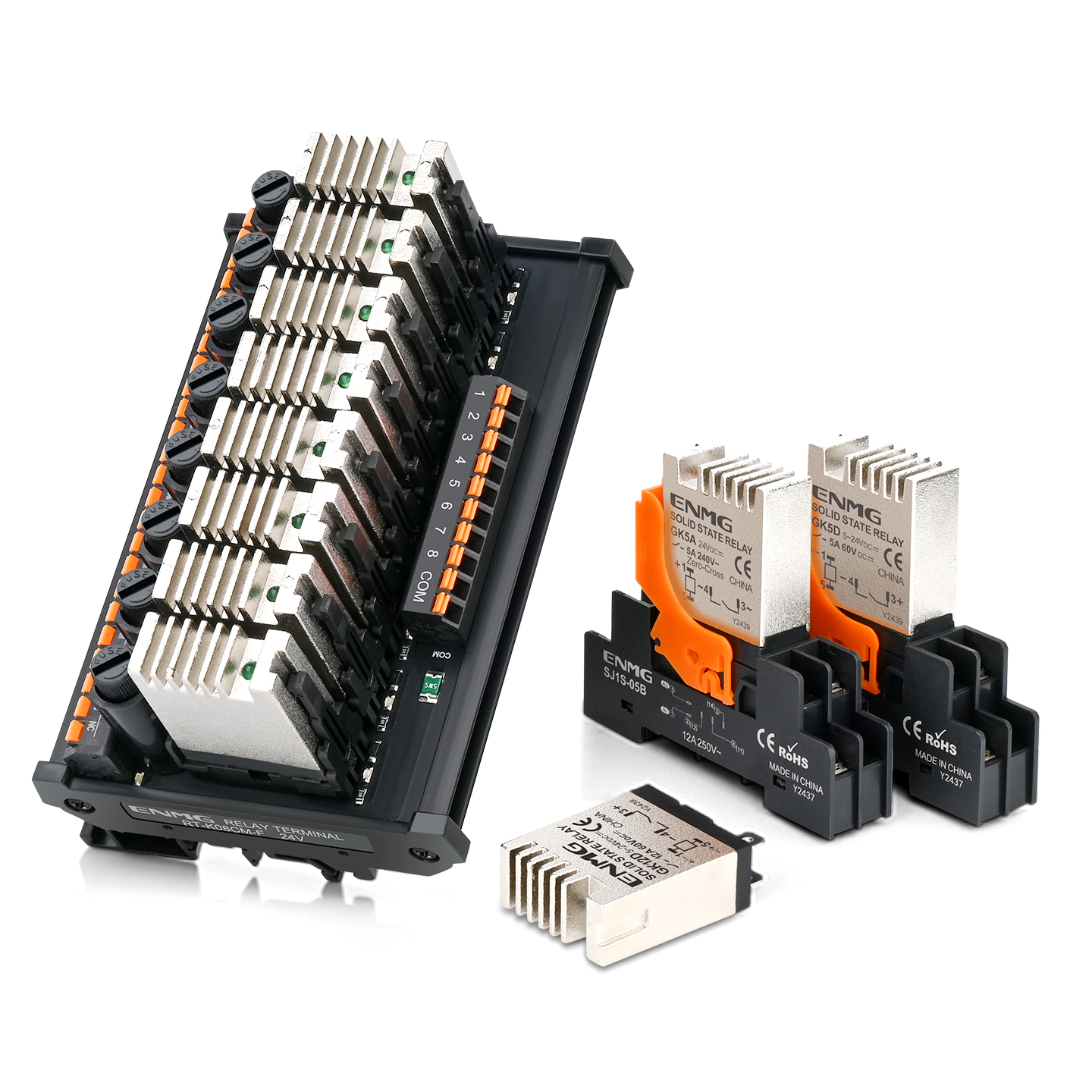

Plug-in solid-state relays
Compact plug-in AC and DC solid-state relays with a cast-aluminium heat-dissipating housing, with compatible sockets and RT-GK multi-channel interface modules.
Request a quote ↗TECHNICAL DATA / GK
Specifications & selection.
- GK5A: TRIAC AC output with an RC snubber.
- GK5D: bipolar-transistor DC output with a flyback diode.
- GK12D: MOSFET DC output with a flyback diode.
| Control input | 5 A DC output | 12 A DC output | 5 A AC zero-cross | 5 A AC random |
|---|---|---|---|---|
| 5–24 VDC | GK5D6132 | GK12D6132 | GK5A2032 | GK5A2132 |
| 24 VDC | GK5D6124 | GK12D6124 | GK5A2024 | Not listed |
| 200–240 VAC, 50/60 Hz | GK5D6122 | Not listed | GK5A2022 | Not listed |
| Family | Output marking | Technology |
|---|---|---|
| GK5A | 5 A / 240 VAC | TRIAC |
| GK5D | 5 A / 60 VDC | Bipolar transistor |
| GK12D | 12 A / 60 VDC | MOSFET |
| Socket | Connection |
|---|---|
| RXGZE1S35M | Cage screw terminals |
| SJ1S-05B | Barrier screw terminals |
| RG05P | Screwless spring terminals |
| SJ1S-61 | PCB solder terminals |
| Channels | Length (mm) | Width (mm) | Height from mounting surface (mm) |
|---|---|---|---|
| 2 | 42 | 87 | 61 |
| 4 | 70 | 87 | 61 |
| 6 | 100 | 87 | 61 |
| 8 | 130 | 87 | 61 |
| 10 | 160 | 87 | 61 |
| 12 | 190 | 87 | 61 |
| 16 | 250 | 87 | 61 |
| Item | Specification |
|---|---|
| Dimensional tolerance | ±1.0 mm |
| Mounting | 35 mm DIN rail |
| Control | 5–24 VDC; COM+/−; NPN/PNP |
| Terminals | S: screw; M: spring; CS/CM: MIL input with screw/spring output |
| Protection options | V: varistor; F: semiconductor fast fuse |
| Channel options | 2, 4, 6, 8, 10, 12 or 16 |
Selection & installation notes
- Select AC or DC output to match the load; verify operating voltage, thermal derating and surge capacity for the exact relay. Output markings are not a complete application rating.
- The source compares the form factor with RJ1S and G2R-1-S. Verify pinout and socket compatibility before replacement; isolate all power before inserting or removing a relay.
- RT-GK dimensions and interface options apply to assembled modules, not bare GK relays. Confirm the module, fuse and terminal combination when ordering.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
