ENMG / RELAY SOCKETS
GPYF08A / GPYF11A / GPYF14A / GPTF14A
Barrier-terminal DIN relay sockets
PYF and PTF interface sockets for plug-in control relays, with barrier screw terminals and DIN-rail installation.
Request a quote ↗TECHNICAL DATA / GPYF08A / GPYF11A / GPYF14A / GPTF14A
Specifications & selection.
- 8-, 11- and 14-pin variants named on the source page.
- 35 mm DIN mounting and replaceable plug-in relays.
- PYF and PTF interfaces serve different relay pin patterns.
| Model | Pins | Socket rating | Relay family in image |
|---|---|---|---|
| GPYF08A / GPYF08A-E | 8 | 7 A / 300 VAC | MY2; GM / SM |
| GPYF14A / GPYF14A-E | 14 | 7 A / 300 VAC | MY4; GM |
| GPTF14A / GPTF14A-E | 14 | 10 A / 300 VAC | LY4; GL |
| GPYF11A | 11 | Not specified | Not specified |
| Item | Published information |
|---|---|
| PYF text cross-reference | RXM2 / GMY2 for 08; RXM4 / GMY4 for 14 |
| PTF image cross-reference | LY family, wide-pin interface |
| -E suffix | Image identifies touch protection; text calls it an ENMG variant |
Selection & installation notes
- Isolate supplies before wiring or replacing a relay. Engage the 35 mm DIN clip and check retention. Match the complete relay pinout rather than relying on the family name alone.
- Confirm terminal wire range, strip length and tightening torque from the ordered product specification; these numerical limits are absent from the page. Tighten correctly and tug-check conductors.
- Socket ratings do not establish relay contact or complete assembly ratings. Confirm environmental limits, dimensions and mass before cabinet design.
- Use the marked terminal diagram and keep commoning-busbar current within its rating.
- The prose assigns RXM relays to PTF models, whereas the selection image identifies LY4 for GPTF14A. Follow the exact pin drawing; do not assume PYF/PTF interchangeability.

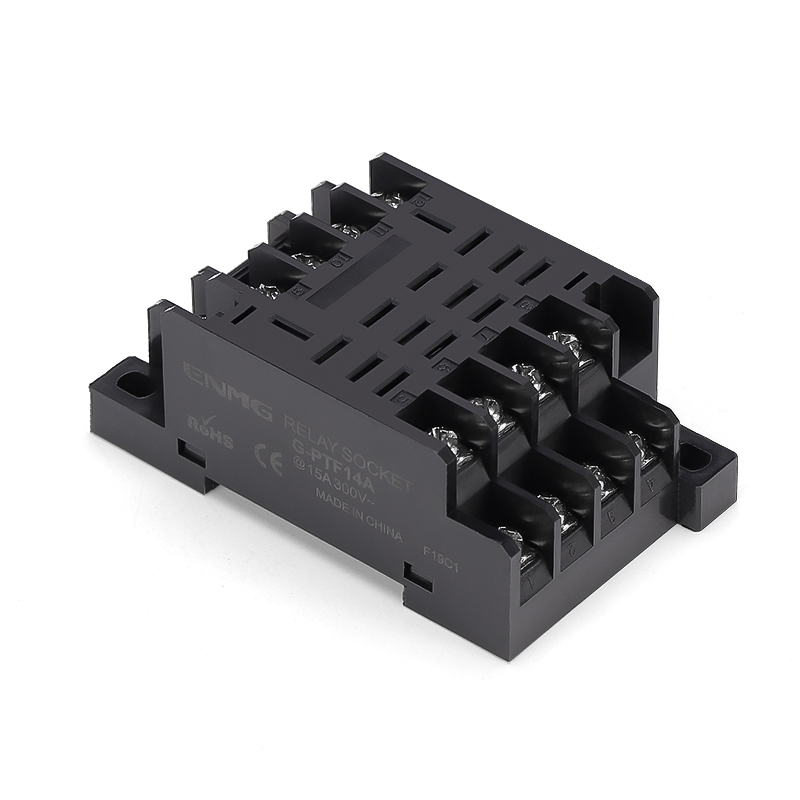

- The photographed GPTF14A is marked 15 A / 300 VAC while the selection table gives 10 A / 300 VAC. The table above reproduces the selection value; obtain the exact revision rating before loading.
- Confirm the -E construction and touch-protection details when ordering.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
