ENMG / CABINET HEATING
HG140 / HG141 / CSP3

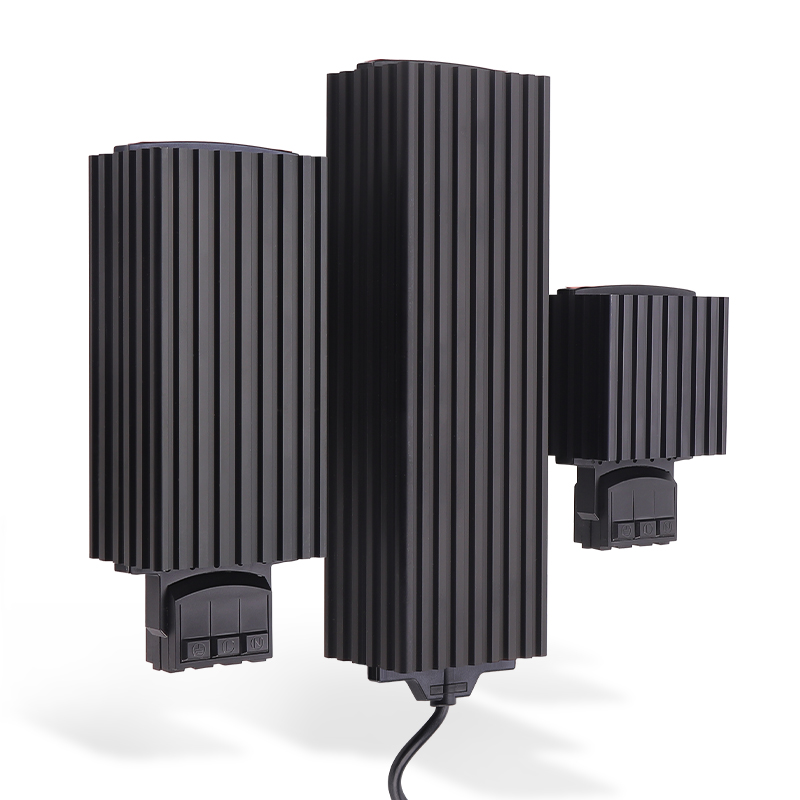

Natural-convection PTC cabinet heaters
Fanless PTC cabinet heaters with black anodized aluminum heat-transfer profiles, offered with terminals or an integral cable.
Request a quote ↗TECHNICAL DATA / HG140 / HG141 / CSP3
Specifications & selection.
- Seven power levels from 15 to 150 W.
- HG140 terminal and HG141 cable variants.
- 35 mm DIN-rail or surface mounting, with vertical convection.
| Terminal model | Cable model | CSP3 mapping | Power | Inrush | Heater-body L | Mass |
|---|---|---|---|---|---|---|
| HG14000.0-00 | HG14100.0-00 | CSP3-2015 | 15 W | 1.5 A | 65 mm | 0.3 kg |
| HG14001.0-00 | HG14101.0-00 | CSP3-2030 | 30 W | 3 A | 65 mm | 0.3 kg |
| HG14003.0-00 | HG14103.0-00 | CSP3-2045 | 45 W | 3.5 A | 65 mm | 0.3 kg |
| HG14005.0-00 | HG14105.0-00 | CSP3-2060 | 60 W | 2.5 A | 140 mm | 0.5 kg |
| HG14006.0-00 | HG14106.0-00 | CSP3-2075 | 75 W | 4 A | 140 mm | 0.5 kg |
| HG14007.0-00 | HG14107.0-00 | CSP3-2100 | 100 W | 4.5 A | 140 mm | 0.5 kg |
| HG14008.0-00 | HG14108.0-00 | CSP3-2150 | 150 W | 9 A | 220 mm | 0.7 kg |
| Parameter | Published specification |
|---|---|
| Supply | 120–240 VAC/DC; minimum 110 V, maximum 265 V; AC 50/60 Hz |
| Power conditions | ±20% at 25 °C; vertical, terminals down, indoor natural convection |
| Low-voltage power change | Source states approximately 10% lower power below 140 VAC/DC |
| Material | Black anodized aluminum profile; ceramic PTC element |
| Terminal wiring in image | Three spring terminals; solid 0.5–2.5 mm², stranded 0.5–1.5 mm² with ferrules; verify AWG equivalents |
| Dielectric / insulation | 1500 VAC, 50/60 Hz, 1 minute / 100 MΩ at 500 VDC |
| Operation / storage | −45 to +70 °C / −45 to +120 °C |
| Humidity | ≤90% RH; no condensation or icing |
| Mounting | 35 mm DIN rail or screws; vertical, terminals down |
Selection & installation notes
- Body length and mass above come from the image. The text contains different dimensions explicitly described as estimates; obtain the exact full outline and cable-variant mass.
- Inrush duration and test voltage are not supplied. Coordinate upstream protection with the manufacturer rather than treating inrush as continuous current.
- The image specifies spring terminals, while a text instruction discusses screw tightening. Wire ranges and AWG equivalents also differ. Follow the exact terminal markings.
- The source claims Class II and separately requires earthing. Confirm the protective class and earth connection. Do not infer dust protection from the fanless design.
- Keep the heater convection path clear, use ON/OFF control and avoid touching hot surfaces. External cabinet ventilation requirements depend on the installation.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG cabinet environment systems — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
