ENMG / DIN-RAIL MOUNTING HARDWARE
HS-A35-ZK

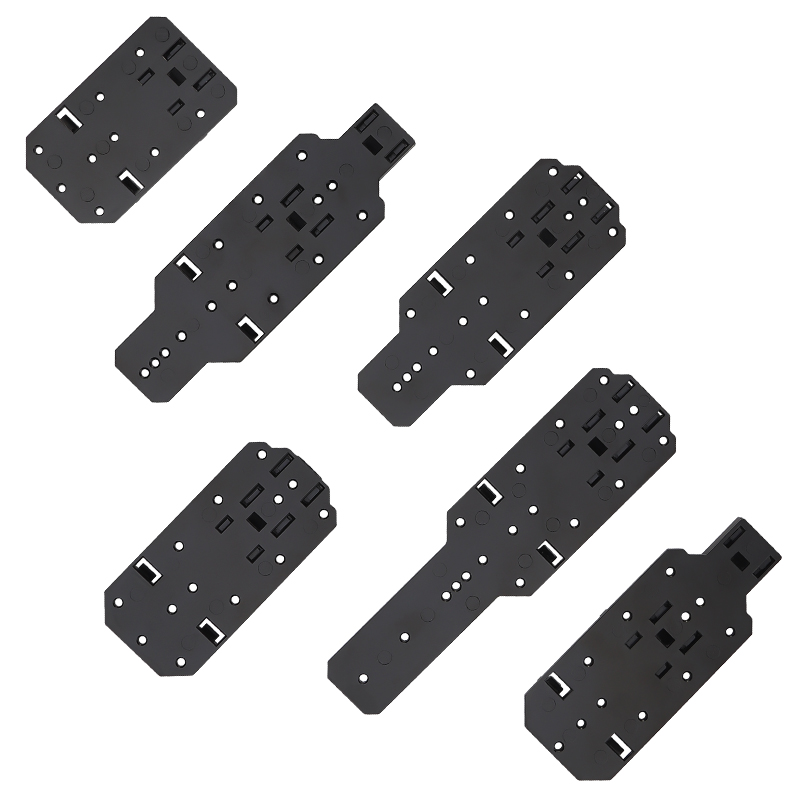

Heavy-duty die-cast DIN mounting brackets
Die-cast aluminium adapters for mounting components of different sizes on 35 mm DIN rail.
Request a quote ↗TECHNICAL DATA / HS-A35-ZK
Specifications & selection.
- Six bracket lengths in the official selection chart.
- Natural aluminium and electrophoretic black finishes.
- Related zinc-alloy HS-X35 brackets are a separate family.
| Natural aluminium | Black finish | W × H × L (mm) | Mass (g) |
|---|---|---|---|
| HS-A35-ZL00 | HS-A35-ZL00K | 52 × 9.6 × 89 | 45 |
| HS-A35-ZL10 | HS-A35-ZL10K | 52 × 9.6 × 107 | 54 |
| HS-A35-ZL20 | HS-A35-ZL20K | 52 × 9.6 × 130 | 65 |
| HS-A35-ZL21 | HS-A35-ZL21K | 52 × 9.6 × 136 | 66 |
| HS-A35-ZL30 | HS-A35-ZL30K | 52 × 9.6 × 159 | 74 |
| HS-A35-ZL40 | HS-A35-ZL40K | 52 × 9.6 × 184 | 76 |
| Item | Published information |
|---|---|
| Rail | 35 mm DIN |
| Material | Die-cast aluminium alloy |
| Rated supported load / torque | Not specified in the source |
| Hole pattern | Request drawing for the selected length |
Selection & installation notes
- The catalogue entry is titled HS-A35-ZK, while its actual ordering chart uses HS-A35-ZL00K through HS-A35-ZL40K. Specify the complete chart code when enquiring.
- Heavy-duty is a product description, not a verified load rating. Confirm component mass, orientation, vibration, retention and screw engagement before installation.
- Verify mounting-hole coordinates against the exact production drawing; do not scale dimensions from photographs.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG electrical accessories — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
