ENMG / MOUNTING ACCESSORIES
HS-A35-ZL

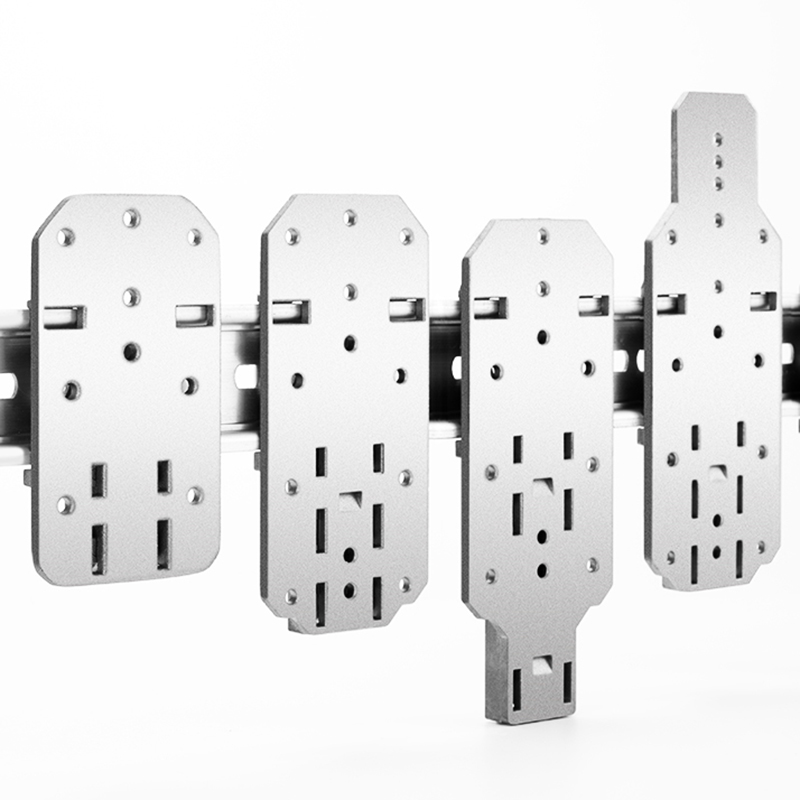

Die-cast aluminium DIN rail brackets
Aluminium-alloy mounting brackets for installing electrical components on 35 mm DIN rail, with six lengths and natural or black electrophoretic finishes.
Request a quote ↗TECHNICAL DATA / HS-A35-ZL
Specifications & selection.
- One-piece die-cast aluminium construction.
- Natural aluminium finish; suffix K identifies the black electrophoretic finish.
- For mounting compatible relays, contactors, terminals and power supplies.
| Natural finish | Black finish | W × H × L (mm) | Mass (g) |
|---|---|---|---|
| HS-A35-ZL00 | HS-A35-ZL00K | 52 × 9.6 × 89 | 45 |
| HS-A35-ZL10 | HS-A35-ZL10K | 52 × 9.6 × 107 | 54 |
| HS-A35-ZL20 | HS-A35-ZL20K | 52 × 9.6 × 130 | 65 |
| HS-A35-ZL21 | HS-A35-ZL21K | 52 × 9.6 × 136 | 66 |
| HS-A35-ZL30 | HS-A35-ZL30K | 52 × 9.6 × 159 | 74 |
| HS-A35-ZL40 | HS-A35-ZL40K | 52 × 9.6 × 184 | 76 |
| Parameter | Specification |
|---|---|
| Material | Die-cast aluminium alloy |
| Mounting | Clip onto 35 mm DIN rail |
| Finish variants | Natural aluminium / black electrophoretic coating |
| Black variant dimensions and mass | Same as corresponding natural-finish model, according to source |
Selection & installation notes
- Confirm mounting-hole pattern, screws, clearances and the supported equipment before selection.
- The source does not give a mechanical load rating, torque or impact/vibration test rating. Request the appropriate drawing and load specification; do not infer load capacity from the heavy-duty description.
- Secure the bracket fully to the rail and verify the assembled equipment is retained before use.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG electrical accessories — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
