ENMG / DIN-RAIL ACCESSORIES
HS-B35
35 mm DIN-rail mounting plate

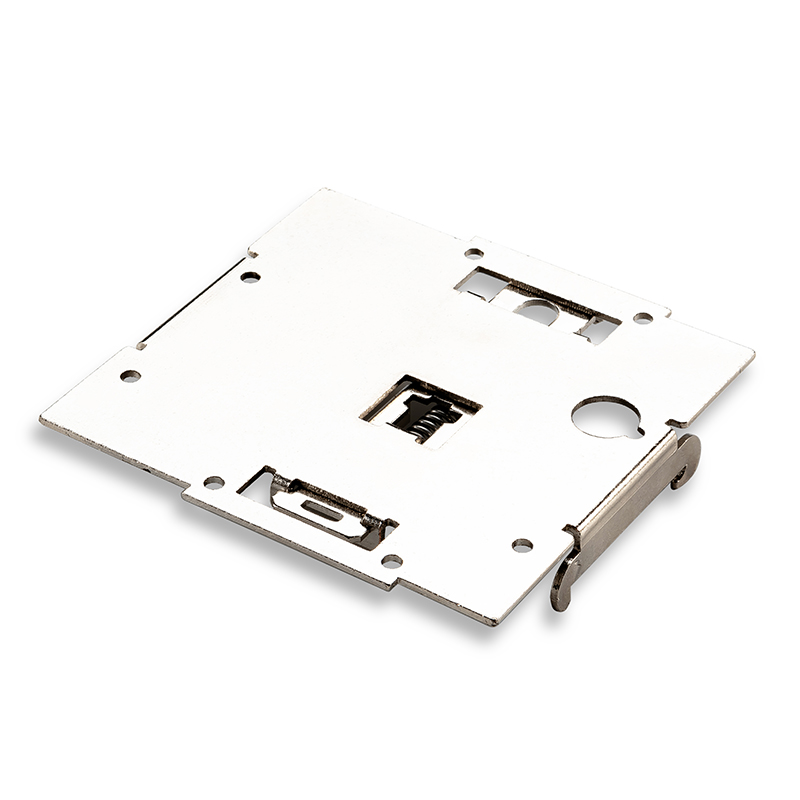

A mounting plate for attaching suitable devices or assemblies to a 35 mm DIN rail, as illustrated in the official product gallery.
Request a quote ↗TECHNICAL DATA / HS-B35
Specifications & selection.
- DIN 35 mm rail interface identified by the source.
- Gallery shows a metal plate, spring latch and fixing holes.
| Item | Specification |
|---|---|
| Model | HS-B35 |
| Rail interface | 35 mm DIN |
| Construction shown | Metal plate with spring-loaded latch |
| Mounting-hole pattern / overall dimensions | Not specified on the source page |
| Material grade / finish / thickness | Not specified |
| Load capacity / torque / mass | Not specified |
Selection & installation notes
- Request a dimensioned drawing, rail-profile compatibility and allowable load for the intended equipment.
- Do not infer material grade, grounding continuity, load rating or vibration qualification from the photograph.
- Select fasteners to the confirmed hole pattern and equipment requirements, then verify secure engagement on the rail.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG electrical accessories — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
