ENMG / DIN-RAIL ACCESSORIES

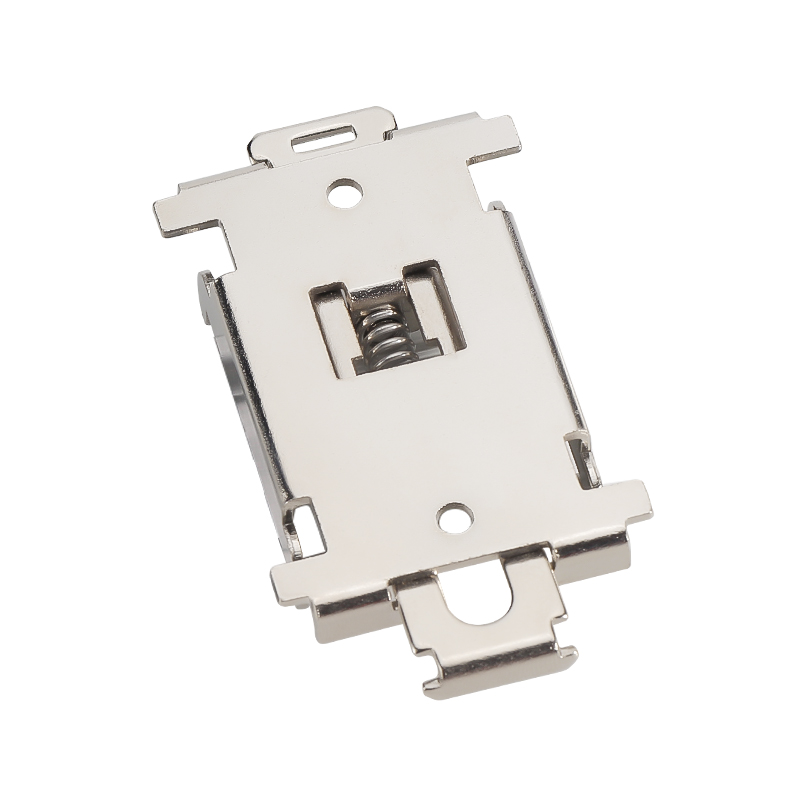

HS-D35
Wide slotted DIN-rail mounting bracket
44.2 mm-wide spring mounting bracket for adapting compatible electrical components to 35 mm DIN rail.
Request a quote ↗TECHNICAL DATA / HS-D35
Specifications & selection.
- Two slotted fixing holes allow limited pitch adjustment.
- Stamped steel plate, nominal thickness 1.5 mm.
- Spring-operated DIN-rail retention.
| Parameter | Published dimension |
|---|---|
| Rail | 35 mm DIN |
| Width | 44.20 ±0.3 mm |
| Overall length | 80 ±0.5 mm |
| Body length | 65 ±0.5 mm |
| Depth | 13.40 ±1.0 mm |
| Plate thickness | 1.5 ±0.1 mm |
| Slotted-hole pitch limits in drawing | 47.50 ±0.3 mm / 50 ±0.3 mm |
| Hole end radius | R2 mm |
| Item | Source detail |
|---|---|
| Plate | Steel; family description specifies carbon steel |
| Spring | Product image: SUS304; family text: SUS303 |
| Finish | Family description: nickel; product panel: oxidation / electrophoresis |
Selection & installation notes
- Confirm the exact hole pattern, fasteners, rail profile and component clearance before ordering. Isolate electrical equipment before installation or removal.
- No verified load capacity, vibration rating, tightening torque or thermal resistance is supplied. A mounting bracket does not establish the cooling capacity of an SSR assembly.
- The family text identifies a SUS303 spring while product images identify SUS304. Confirm the supplied spring grade.
- The finish descriptions conflict. Specify the required finish and obtain confirmation for the ordered HS-D35. Slots are through-holes for fixing hardware, not M4 threads.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG electrical accessories — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
