HS1

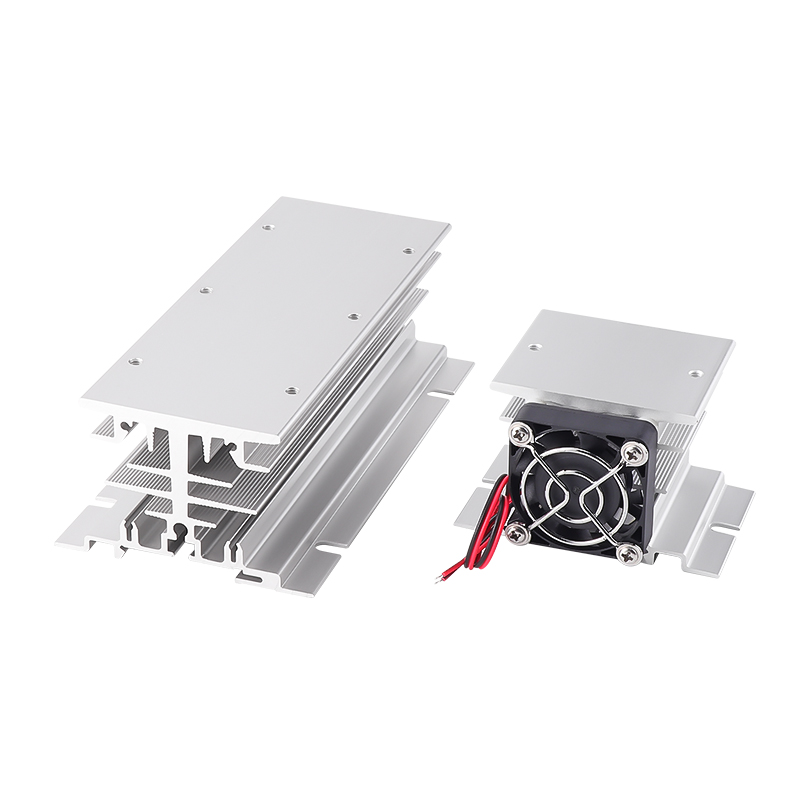

Aluminum heat sinks for single-phase solid-state relays
Extruded aluminum heat sinks for mounting and cooling solid-state relays, with natural-convection and optional fan-assisted configurations.
Request a quote ↗TECHNICAL DATA / HS1
Specifications & selection.
- 6063-T5 aluminum extrusion.
- Natural aluminum finish or black electrophoretic finish.
- 35 mm DIN-rail and panel mounting options.
| Model | Finish | Cooling / supply | Approximate W × H × L |
|---|---|---|---|
| HS1-050 | Natural | Passive | 80 × 50 × 50 mm |
| HS1-050-K | Black | Passive | 80 × 50 × 50 mm |
| HS1-050-F-D05 | Natural | Fan, 5 VDC | 80 × 80 × 70 mm |
| HS1-050-F-D12 | Natural | Fan, 12 VDC | 80 × 80 × 70 mm |
| HS1-050-F-D24 | Natural | Fan, 24 VDC | 80 × 80 × 70 mm |
| HS1-050-K-F-D12 | Black | Fan, 12 VDC | 80 × 80 × 70 mm |
| Parameter | Published specification |
|---|---|
| Length options | 50 / 150 / 180 / 225 mm; longer sections on request |
| Basic section | 80 mm wide × 50 mm high |
| HS1-050 mass | Approximately 120 g |
| HS1-050 surface area | 58 in² / 37,800 mm² as listed |
| Thermal resistance | 2.2 °C/W is explicitly provisional in the source, not a measured ENMG rating |
| SSR mounting pitch | 47 mm; hole / fastener dimensions require confirmation |
| Optional fan | 40 × 40 mm; 5 / 12 / 24 VDC |
| Optional thermal switch | KSD9700; trip temperature to be specified |
| Suggested ambient | −20 to +60 °C; additional derating at higher temperature |
Selection & installation notes
- The source labels the 2.2 °C/W figure as a market-reference value awaiting measurement. The stated 20 A target is also awaiting temperature-rise testing. Neither is a validated load rating.
- The source specifies Ø3.5 through holes together with M4 screws, an incompatible clearance-hole description. Obtain the mechanical drawing and confirmed fixing torque before fabrication.
- Use a suitable thermal interface and determine cooling from device losses, ambient temperature, airflow and allowable case temperature. Larger mass alone does not establish continuous cooling capacity.
- Fan and thermal switch are separately selected accessories. Confirm included items and exact dimensions; extended lengths do not inherit the 50 mm thermal figure.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
