ENMG / SOLID-STATE RELAY HEAT SINKS
HS3D
DIN-rail aluminum heat sinks for solid-state relays

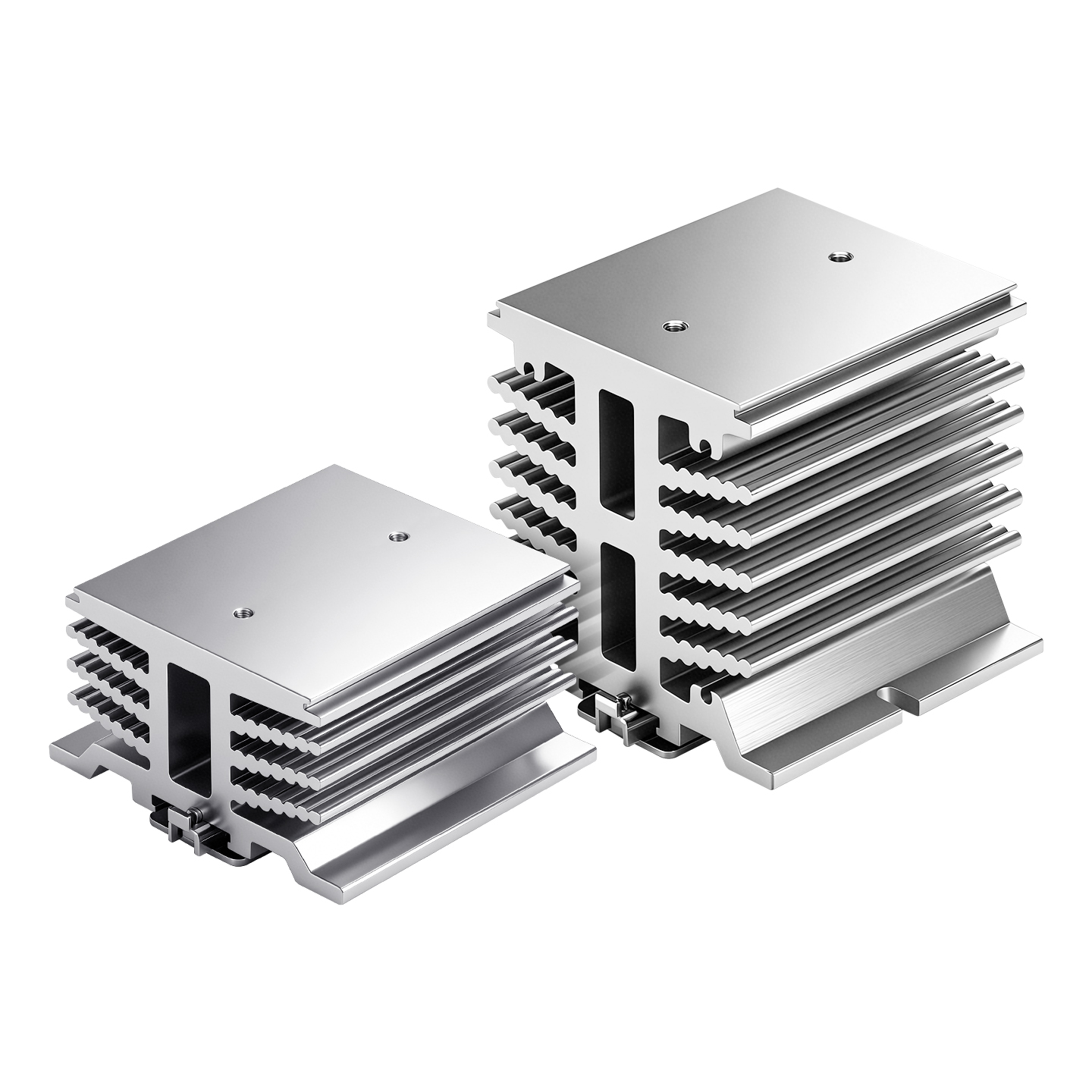

Extruded aluminum heat sinks with device mounting threads and dual DIN-rail or surface mounting, available in two profile heights.
Request a quote ↗TECHNICAL DATA / HS3D
Specifications & selection.
- HS3D-045 and HS3D-075 standard profiles.
- 2 × M4 device threads at47.5 mm centers.
- Natural-convection channels; forced-air configurations by design.
| Model | Profile height | Overall L × W × H | Mass | Source relay-current reference |
|---|---|---|---|---|
| HS3D-045 | 45 mm | 85.2 ×88 ×49 mm | Approximately404 g | 35–50 A |
| HS3D-075 | 75 mm | 85.2 ×88 ×79 mm | Approximately689 g | 75–125 A |
| Parameter | Value |
|---|---|
| Device mounting | 2 × M4 threads,47.5 mm centers |
| Surface mounting | 74 mm centers; original slots markedØ5 mm |
| DIN mounting | 35 mm rail with metal attachment |
| Profile thickness | Up to approximately8.8 mm; average4 mm in source |
| Finish | Natural aluminum or black finish by confirmed process |
| Ambient reference | −25 to +85 °C; thermal design must be checked |
| Custom work | Cut length, mounting holes and finish; examples60/100/150 mm |
Selection & installation notes
- The current ranges are manufacturer selection references, not intrinsic ampere ratings of a heat sink. Verify relay losses, interface resistance, heat-sink thermal resistance, ambient and maximum junction temperature.
- No numerical thermal-resistance or power-dissipation curve is provided in this product record. Do not assume the reference current is available in a sealed cabinet or at85 °C.
- Keep convection channels vertical and unobstructed. Use the relay manufacturer’s flatness, thermal-interface and fastening instructions.
- The045/075 suffix is profile height; overall heights including mounting hardware are49/79 mm. Confirm clearance for relay, terminals and wiring.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG electrical accessories — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
