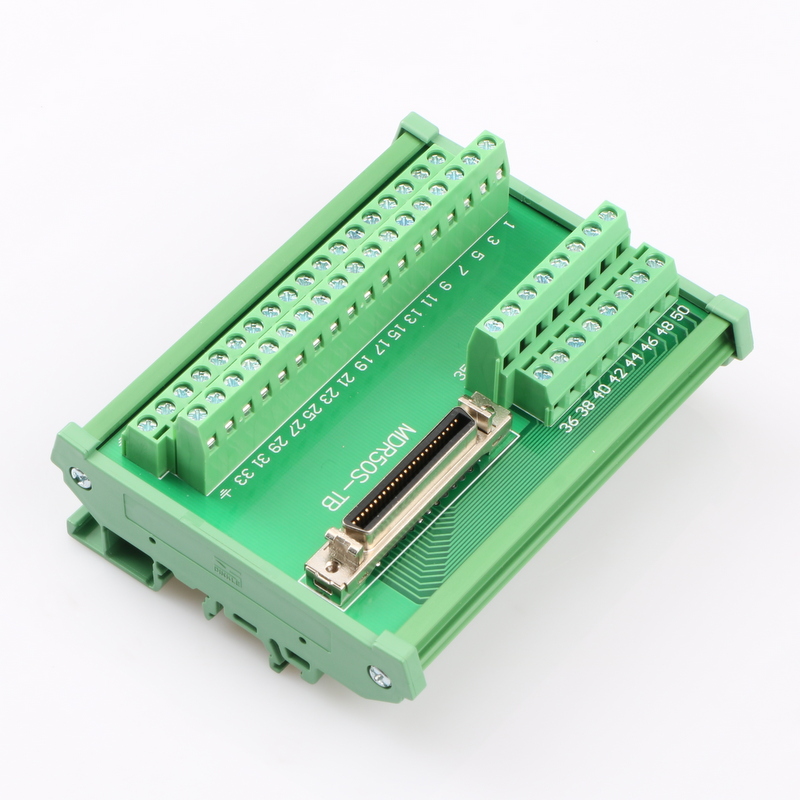

MDR50S-TB
Servo drive CN1 interface terminal module
A 50-position MDR connector-to-screw-terminal interface module for routing servo-drive CN1 signals to accessible field terminals.
Request a quote ↗TECHNICAL DATA / MDR50S-TB
Specifications & selection.
- Numbered PCB terminals simplify signal identification.
- Official photographs show the module and a connector cable; confirm the ordered scope of supply.
| Item | Specification |
|---|---|
| Model | MDR50S-TB |
| Interface | 50-position MDR connector |
| Field connection | Screw terminals |
| Application | Servo-drive CN1 signal interface |
| Board marking | MDR50S-TB; numbered connections through 50 |
Selection & installation notes
- Match the drive-specific CN1 pin assignment and cable wiring; connector fit alone does not establish electrical compatibility.
- The official page does not state voltage/current ratings, wire range, terminal torque, outline dimensions or cable length. Request the exact drawing and electrical specification before integration.
- Confirm cable inclusion, cable pinout and mounting accessories with the quotation. Disconnect power before wiring.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG wiring terminals — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
