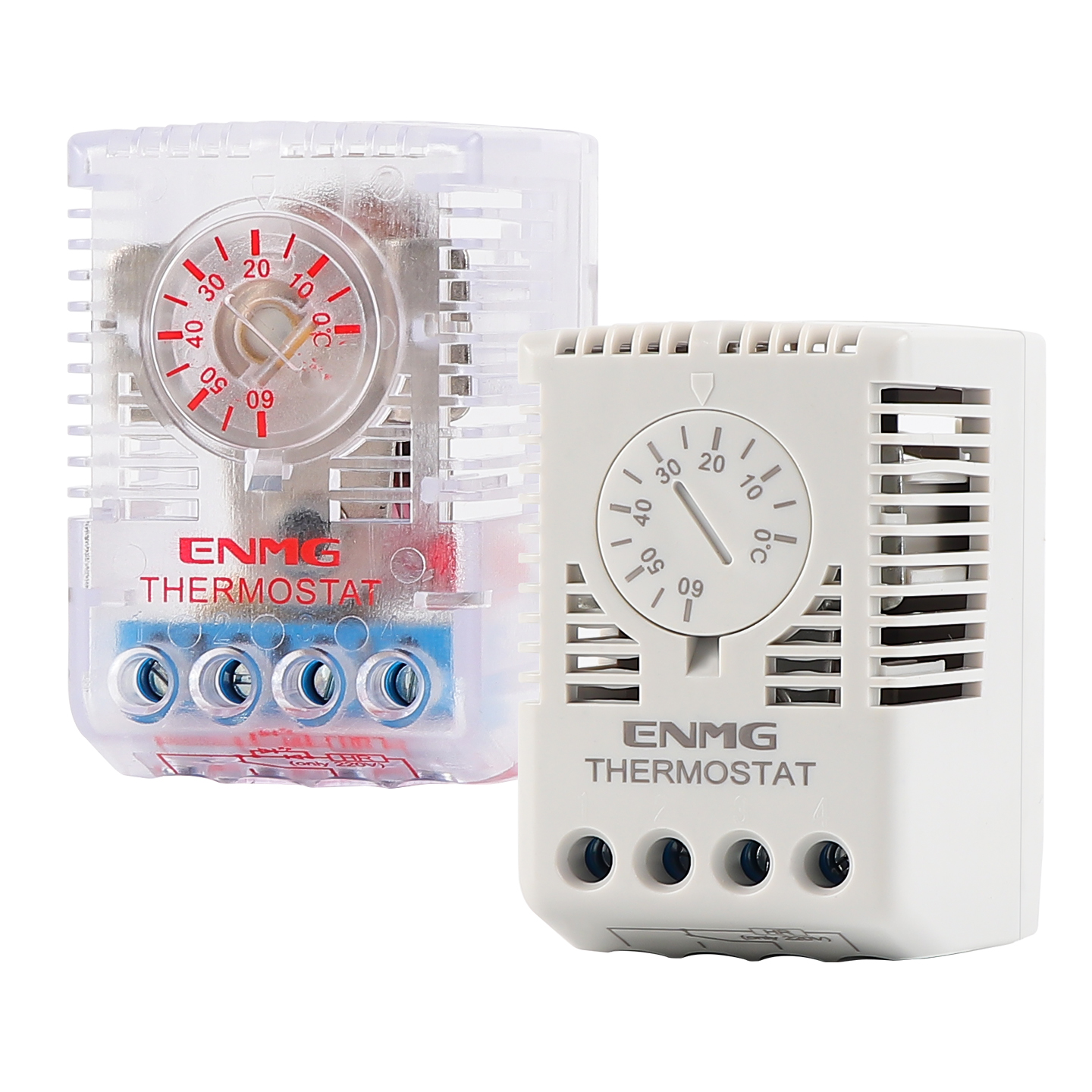

MTC-1K
Mechanical changeover thermostats
Adjustable bimetal snap-action thermostats with one SPDT changeover contact for cabinet heating or cooling control, with optional LED versions.
Request a quote ↗TECHNICAL DATA / MTC-1K
Specifications & selection.
- Integrated bimetal sensor with mechanical switching; no external sensor.
- 35 mm DIN rail mounting and compact changeover-contact design.
- Grey ABS or transparent polycarbonate LED variants, as listed in the source.
| Standard model | LED model | Adjustment range |
|---|---|---|
| MTC-40-1K | MTC-40-1KL | −20 to +40°C |
| MTC-60-1K | MTC-60-1KL | 0 to +60°C |
| MTC-80-1K | MTC-80-1KL | +20 to +80°C |
| Parameter | Specification |
|---|---|
| Contact | 1 SPDT snap-action changeover |
| Contact resistance | ≤50 mΩ |
| Electrical endurance | More than 100,000 operations |
| AC load marking | 10(2) A at 250 VAC; 15(2) A at 120 VAC |
| DC load rating | 30 W at 24–72 VDC |
| Switching differential | 1 K / 3 K in source table; confirm exact variant |
| Sensor | Bimetal |
| Terminals | 4-position screw terminal block |
| Solid wire | 2.5 mm² |
| Stranded wire | 1.5 mm²; ferrules recommended |
| Parameter | Specification |
|---|---|
| Outline L × W × H | 40 × 53 × 60 mm, reference dimensions |
| Mass | Approx. 40 g |
| Rail | 35 mm DIN rail, EN 60715 |
| Mounting position | Any, according to source |
| Housing | Grey ABS / transparent polycarbonate |
| Housing flammability | UL 94 V-0 stated in source |
| Protection | IP20 |
| Ambient temperature | −45 to +80°C, no condensation or ice |
| Humidity | ≤90% RH, no condensation or ice |
| Reference test temperature | 25°C unless otherwise stated |
Selection & installation notes
- The source explicitly says part of its naming explanation is inferred. Its 1K model rows list both 1 K and 3 K differential. Confirm the exact switching differential and full part number before ordering.
- Select contacts according to the heating/cooling terminal diagram and observe the applicable AC load category or DC power limit. Confirm inductive-load suitability for the actual load.
- The mechanical thermostat does not require a separate sensor supply; confirm any LED/compensation wiring requirements from the exact model diagram.
- Install where air temperature is representative, away from direct hot or cold airflow. Adjust the dial gently and allow wiring access.
- Use inside an appropriately protected enclosure. The product is not explosion-proof. Isolate power before wiring or inspection.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
