ENMG / CABINET TEMPERATURE CONTROL
MTC

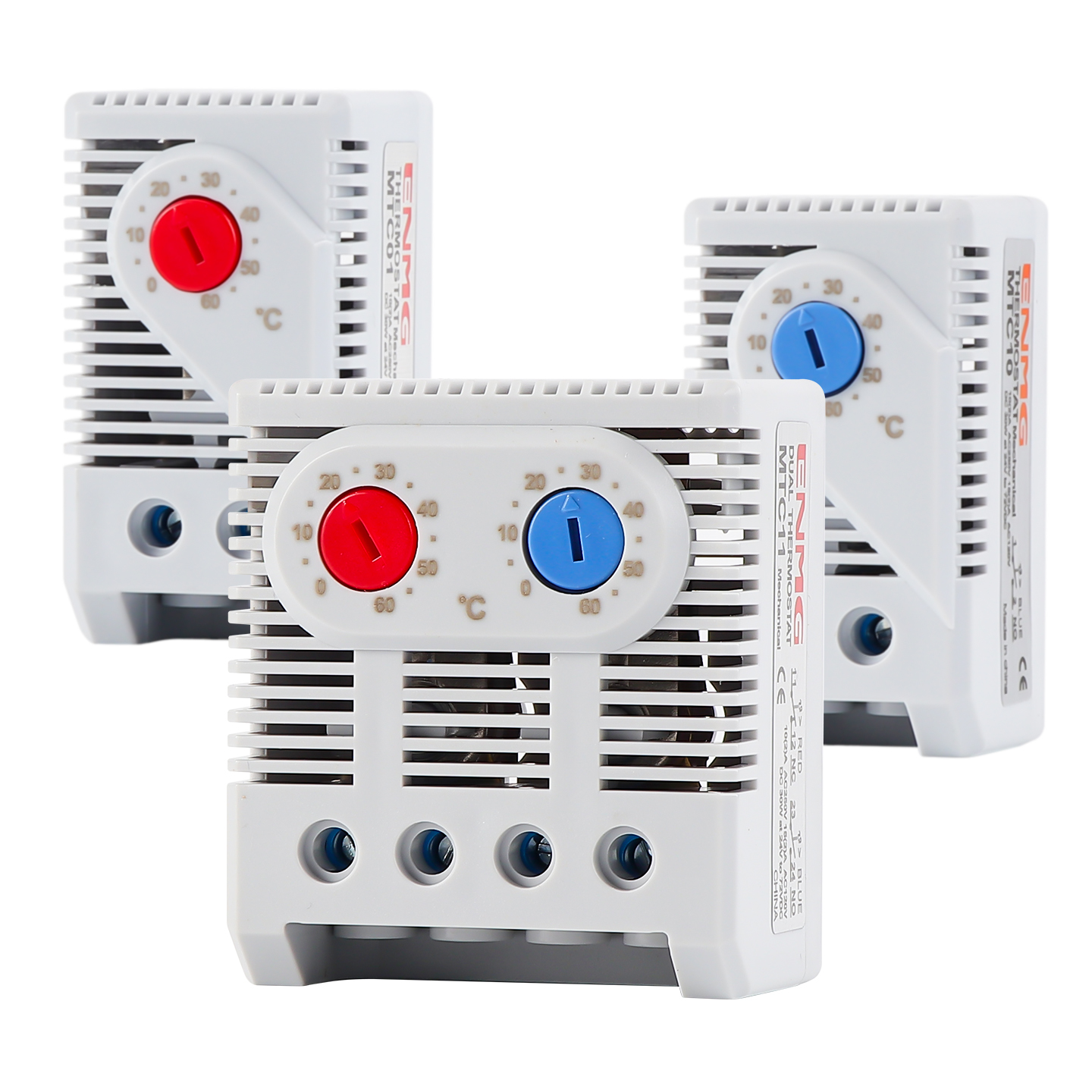

Adjustable mechanical cabinet thermostats
Bimetal cabinet thermostats with normally closed heating contacts, normally open cooling contacts or two independent temperature adjustments.
Request a quote ↗TECHNICAL DATA / MTC
Specifications & selection.
- Single and dual thermostats with 35 mm DIN-rail mounting.
- Red heating and blue cooling adjustment controls.
- Temperature switching; these devices do not directly measure humidity.
| Model | Contact function | Adjustment range |
|---|---|---|
| MTC01-50 | NC | −10 to +50 °C |
| MTC01-60 | NC | 0 to +60 °C |
| MTC01-80 | NC | +20 to +80 °C |
| MTC10-50 | NO | −10 to +50 °C |
| MTC10-60 | NO | 0 to +60 °C |
| MTC10-80 | NO | +20 to +80 °C |
| MTC11-60 | NC + NO | Both 0 to +60 °C |
| MTC11-5080 | NC + NO | NC −10 to +50 °C; NO +20 to +80 °C |
| MTC02-50 (custom) | Dual NC | Both −10 to +50 °C |
| MTC02-60 (custom) | Dual NC | Both 0 to +60 °C |
| MTC20-60 (custom) | Dual NO | Both 0 to +60 °C |
| MTC20-80 (custom) | Dual NO | Both +20 to +80 °C |
| Parameter | Published specification |
|---|---|
| Sensor / contact mechanism | Bimetal / snap action |
| Switching differential | 7 K (±4 K) |
| AC switching capacity, source notation | 10(2) A at 250 VAC; 15(2) A at 120 VAC |
| DC switching capacity | 30 W at 24–72 VDC |
| Electrical life | More than 100,000 cycles; load conditions not stated |
| Connection | Single: 2-pole screw terminal; dual: 4-pole |
| Conductors | Solid 2.5 mm²; flexible 1.5 mm² with ferrules |
| Housing | Gray ABS; source claims UL94 V-0 material |
| Mounting | 35 mm DIN rail, EN 60715; any orientation |
| Operation | −45 to +80 °C; no condensation or icing |
| Humidity / protection | ≤90% RH / IP20 |
| Single outline / mass | 60 × 33 × 43 mm / approximately 40 g |
| Dual outline in table / mass | 67 × 50 × 46 mm / approximately 95 g |
| Dual outline drawing | 62 mm high × 53 mm wide × 44 mm deep; ±0.5 mm |
| Contact resistance | Source prints ≤50 MΩ; unit requires clarification |
Selection & installation notes
- The dual-thermostat outline table and dimension drawing disagree. Request a confirmed drawing for the exact model.
- The source does not define the parenthesized AC load category. Confirm load type, inrush and contactor requirements; the DC rating is 30 watts, not 30 amperes.
- The contact-resistance unit appears inconsistent and has not been silently corrected. Switching differential is not a separate setting-accuracy specification.
- Install where the thermostat senses representative cabinet temperature. Verify terminal markings and isolate supplies before wiring.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
