ENMG / DIN-RAIL POWER SUPPLIES
NDR

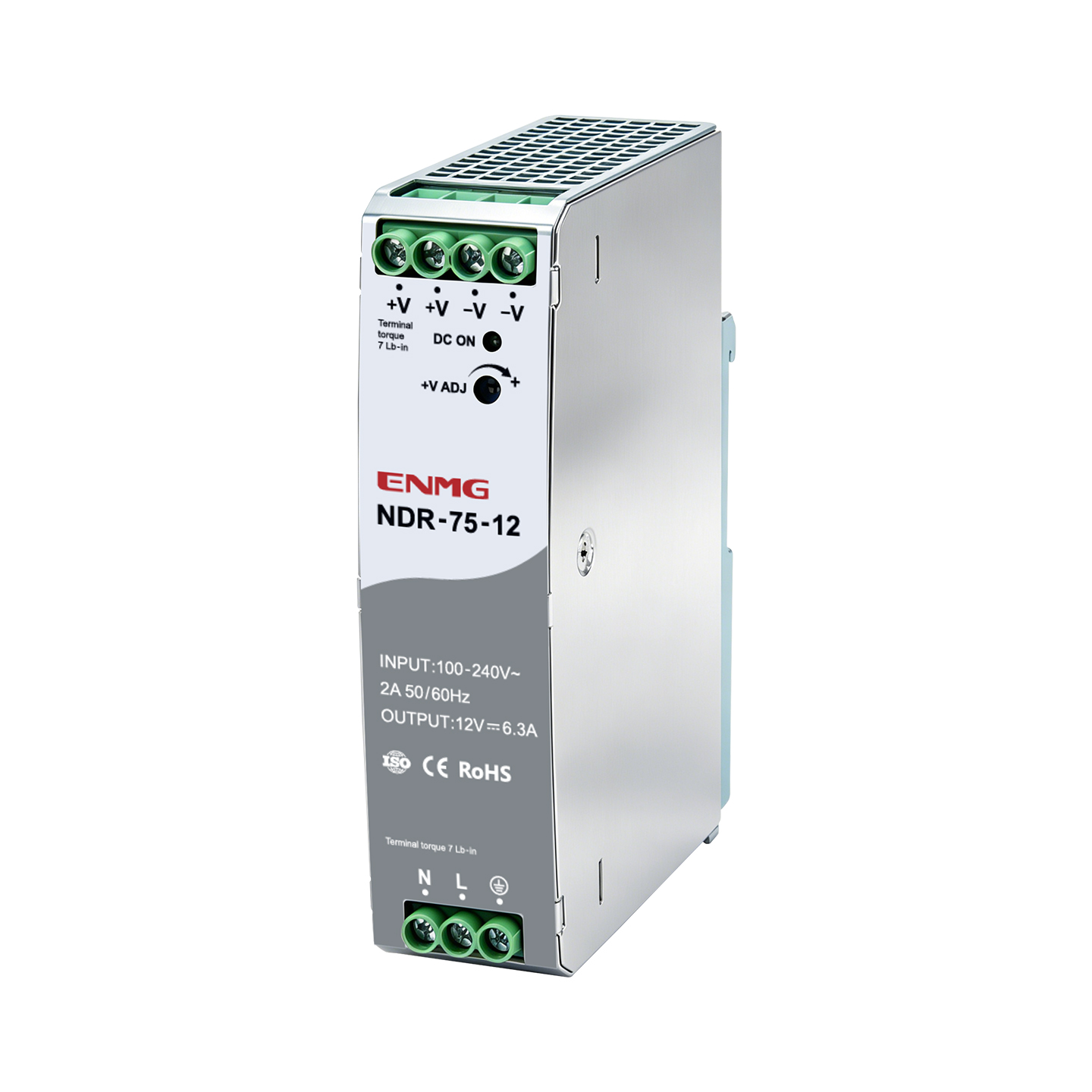

Compact DIN-rail DC power supplies
Natural-convection power supplies for industrial control cabinets, with12,24 or48 V selections and75,120 or150 class housings.
Request a quote ↗TECHNICAL DATA / NDR
Specifications & selection.
- TS-35/7.5 orTS-35/15 DIN-rail mounting.
- Adjustable output and overload protection.
- Optional-QQ conformal coating by order.
| Model | Power W | Output V / A | Adjustment V | Typical efficiency230VAC | Capacitive load µF |
|---|---|---|---|---|---|
| NDR-75-12 | 75.6 | 12 /6.3 | 12–14 | 86% | 6000 |
| NDR-75-24 | 76.8 | 24 /3.2 | 24–28 | 89% | 1500 |
| NDR-75-48 | 76.8 | 48 /1.6 | 48–53 | 90% | 1000 |
| NDR-120-12 | 120 | 12 /10 | 12–14 | 85% | 3000 |
| NDR-120-24 | 120 | 24 /5 | 24–28 | 88% | 1200 |
| NDR-120-48 | 120 | 48 /2.5 | 48–55 | 89% | 800 |
| NDR-150-24 | 156 | 24 /6.5 | 24–28 | 88% | 1200 |
| Parameter | Value |
|---|---|
| NDR-75/120 AC range | 90–264 VAC in prose; nominal100–240 VAC |
| NDR-150 input | 170–240 VAC on label; do not assume90 VAC operation from generic prose |
| DC range | 75:120–370 VDC;120/150:127–370 VDC in prose, confirm150 low-input derating |
| Frequency | 47–63 Hz |
| Accuracy | 12 V:±2%;24/48 V:±1% |
| Ripple maximum | 75:80/120/150 mV for12/24/48 V;120:100/120/150 mV;150:150 mV |
| Overload | 105–150% of nominal, constant-current recovery |
| DC OK contact | Not fitted |
| Ambient | 75:−30 to +70 °C;120/150:−20 to +60 °C; derating required |
| Humidity | 5–95% RH, non-condensing |
| Insulation withstand | I/O3000 VAC; input/earth2000 VAC; output/earth500 VAC |
| Class | Prose body | Original image envelope | Prose mass |
|---|---|---|---|
| 75 | 32 ×125 ×87.5 | 32 ×130 ×98 | 350 g |
| 120 | 36 ×125 ×100 | Confirm full envelope | 410 g |
| 150 | 36 ×125 ×100 | 36 ×130 ×110 | 445 g |
Selection & installation notes
- Output current and power limits apply together, including when voltage is adjusted. Check low-input-voltage and temperature derating curves for the selected model.
- Connect protective earth and maintain vertical convection airflow. The source suggests20 mm above/below and5 mm at the sides; allow more beside hot equipment. Confirm terminal torque and wire size for the actual unit.
- Do not infer certified end-equipment compliance from referenced standards or logos. Request the exact model’s certification and verify EMC in the completed installation.
- A conformal-coating option does not make an open ventilated power supply waterproof.
- The NDR-150 photograph headline says120 W, while its label says24 V/6.5 A and the prose table gives156 W. Confirm the delivered unit’s approved rating; do not rely on the promotional headline.
- The general input-range paragraph conflicts with NDR-150’s170–240 VAC label. Verify its operating range and low-line power before using it on a120 V network.
- Original photos show larger outlines than the prose body dimensions. Confirm mounting and cable clearance against the delivered revision.
- The material table lists aluminum and galvanized steel, so the generic stainless-steel title is not used as a construction specification.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG power supplies — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
