ENMG / CABINET TEMPERATURE CONTROL
NTS01 / NTS10

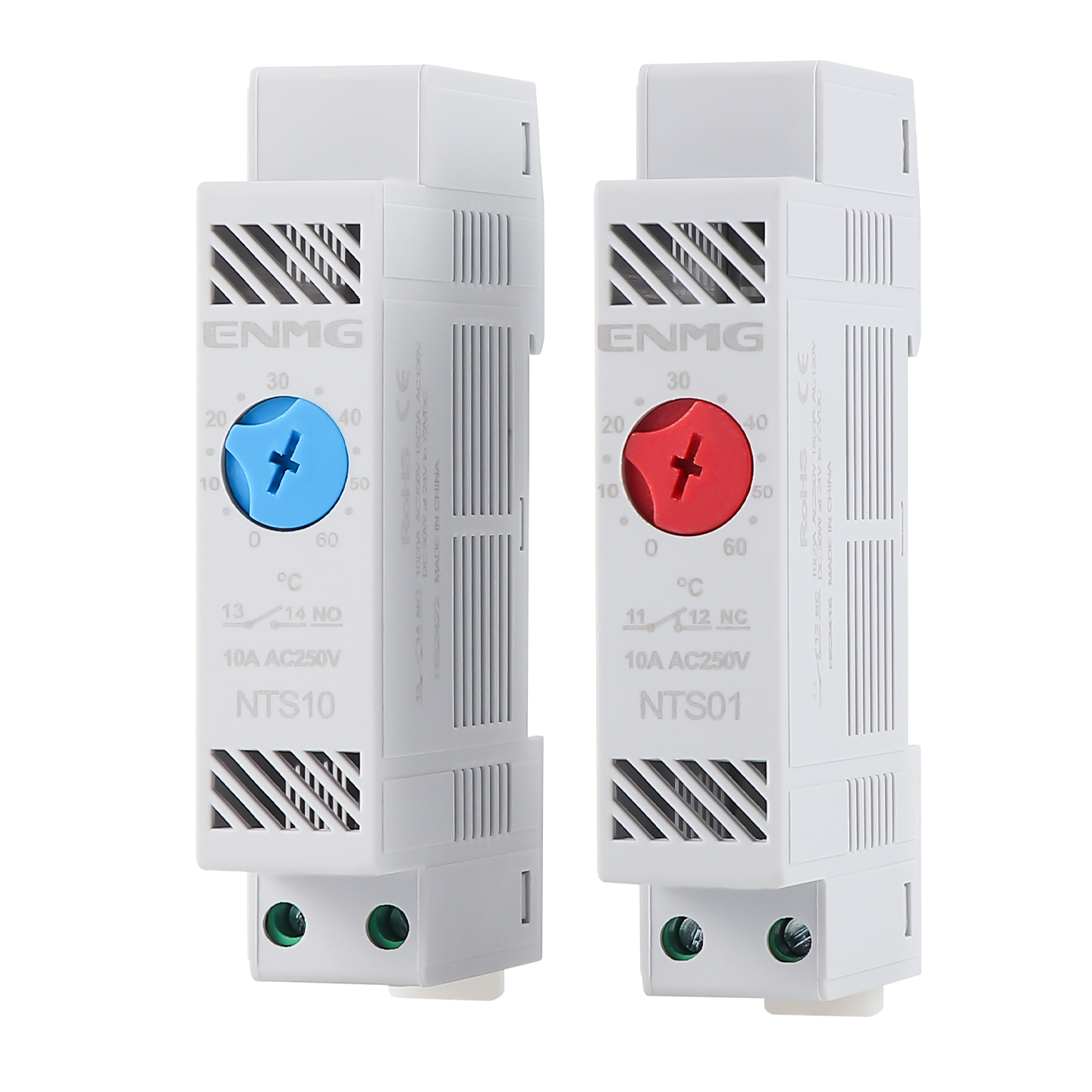

Slim mechanical cabinet thermostats
Bimetal temperature switches for cabinet heating, cooling or temperature alarms, with an 18 mm slim body and two-wire connections.
Request a quote ↗TECHNICAL DATA / NTS01 / NTS10
Specifications & selection.
- Red NC dial for heating control.
- Blue NO dial for cooling or high-temperature indication.
- 0–60 °C adjustment; 35 mm DIN-rail mounting.
| Model | Contact | Dial | Typical use |
|---|---|---|---|
| NTS01-60 | SPST-NC, snap action | Red | Heating; opens as temperature rises |
| NTS10-60 | SPST-NO, snap action | Blue | Cooling; closes as temperature rises |
| Parameter | Published specification |
|---|---|
| Setting range | 0 to +60 °C |
| Switching differential | 7 K (±4 K) |
| Sensor | Bimetal |
| Contact resistance | ≤50 mΩ |
| Electrical life | More than 100,000 cycles; load conditions unspecified |
| AC rating, source notation | 10(2) A at 250 VAC; 15(2) A at 120 VAC |
| DC rating | 30 W at 24–72 VDC |
| Terminals | 2-pole screw terminals |
| Conductors | Solid 2.5 mm²; flexible 1.5 mm² with ferrules |
| Mounting | 35 mm DIN rail, EN 60715; any orientation |
| Housing | Gray ABS; UL94 V-0 material designation in source |
| Outline | Source labels L86 × W48 × H18 mm; slim body is 18 mm |
| Operation / humidity | −45 to +80 °C / ≤90% RH; no condensation or icing |
| Protection / mass | IP20 / approximately 40 g |
Selection & installation notes
- The parenthesized AC load categories are not defined in the source; confirm suitability for inductive loads and inrush. The DC rating is 30 W, not 30 A.
- The source gives no tightening torque or strip length. Follow exact terminal markings and use the full outline drawing for mounting orientation.
- The adjustment range is distinct from the ambient operating range. Use a representative sensing location and isolate load power before wiring.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
