Slim SIP PCB solid-state relays

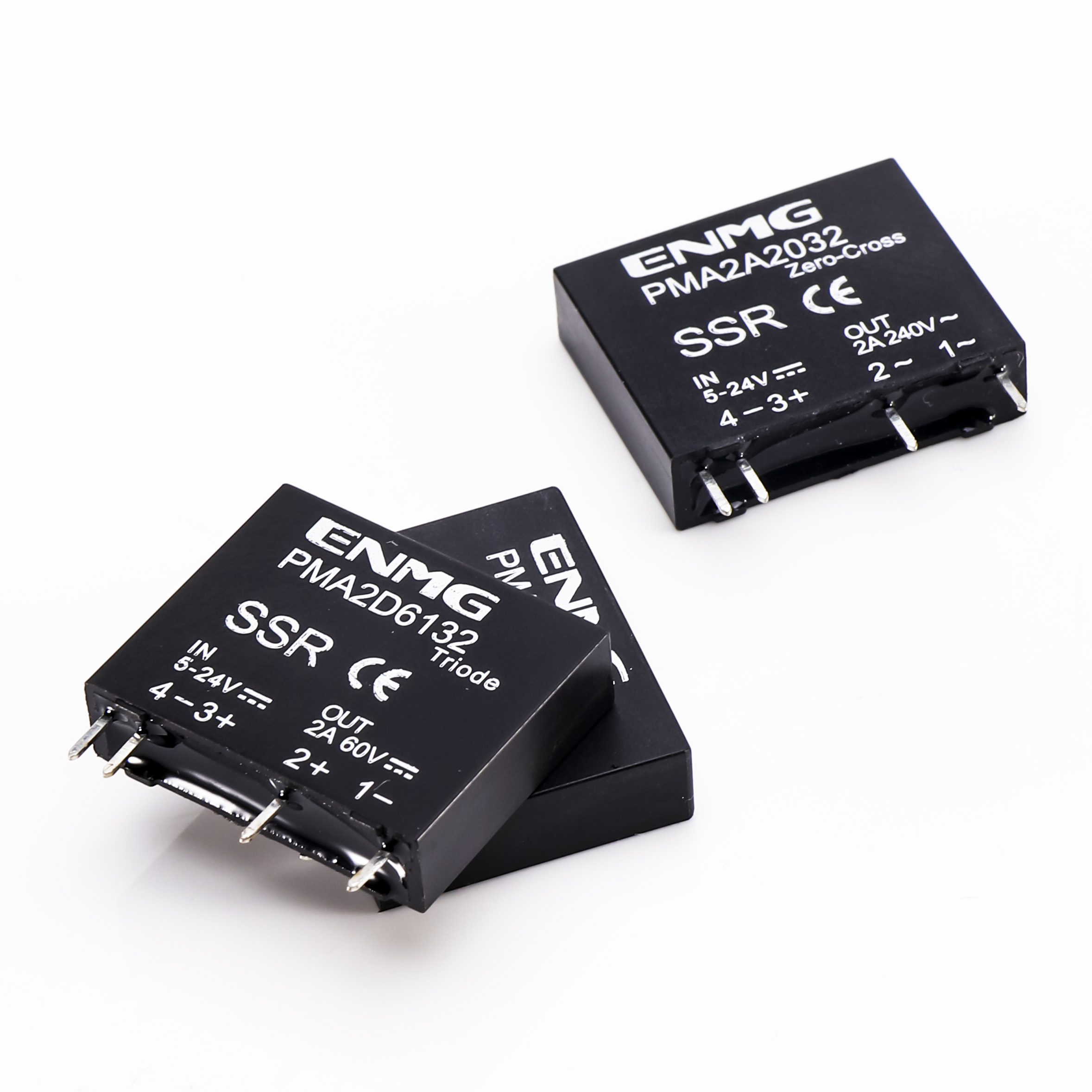

Optically isolated, epoxy-potted solid-state relays in a 24.2 × 6.7 × 21.4 mm single-in-line package.
Request a quote ↗TECHNICAL DATA / PMA
Specifications & selection.
- Approximately 6.7 mm thick for compact PCB layouts.
- AC, DC and non-polarized output options in the selection matrix.
- 5, 12, 24 VDC or 5–24 VDC input codes; no status LED.
| Output | Pattern | Published description |
|---|---|---|
| Basic DC | PMA2D61** | 2 A, 5–60 VDC |
| Low-resistance DC | PMA6D61** | 6 A, 5–60 VDC |
| Non-polarized | PMA2K61** | 2 A AC/DC; confirm voltage and RMS limits |
| AC zero cross | PMA2A20** | 2 A, 240 VAC class |
| AC random | PMA2A21** | 2 A, 240 VAC class |
| ** input suffix | 05 / 12 / 24 / 32 | 5 / 12 / 24 VDC / 5–24 VDC |
| Parameter | AC output | DC output |
|---|---|---|
| Load range | 24–240 VAC | 5–60 VDC |
| Resistive rating at 20 °C | 2 A | 2 / 5 / 6 A in text; 5 A pattern not listed |
| ON-state drop | ≤1.5 V, described as typical at rated current | Basic ≤1.3 V; low-resistance value not given |
| OFF leakage | ≤5 mA at rated load voltage | ≤1 mA at rated load voltage |
| Minimum load | 50 mA | 10 mA |
| Turn-on / turn-off | ≤10 ms stated; zero-cross supply-frequency dependency requires confirmation | ≤1 ms / ≤1 ms |
| Suppression described | Internal RC network | Internal RC network; confirm variant |
| Parameter | Specification |
|---|---|
| Input | DC, optically isolated; approximate turn-on ≥3 V and turn-off ≤1 V in generic text |
| Input current | A few mA described; no model-specific maximum |
| Output / input pins | 1 and 2: output; 3+: input positive; 4−: input negative |
| Input-output insulation resistance | ≥100 MΩ at 500 VDC |
| Input-output dielectric withstand | 2500 VAC, 1 minute |
| Vibration / shock | 10–55 Hz, 0.75 mm double amplitude, three axes / approximately 1000 m/s² |
| Operation / storage | −30 to +80 °C / −30 to +100 °C; no condensation or icing |
| Humidity / altitude | 45–85% RH / below 2000 m |
| Body L × thickness × H | Approximately 24.2 × 6.7 × 21.4 mm |
| Mass / pitch | A few grams, no exact mass; pitch requires drawing |
| Series | L × thickness × H |
|---|---|
| PMA, this page | 24.2 × 6.7 × 21.4 mm |
| PMY, separate family | 26.5 × 7 × 16 mm |
| PMS, separate family | 32 × 12 × 20 mm |
Selection & installation notes
- Confirm availability of each input/output combination. The 5 A DC code appears in naming text but not the published selection row; no full part number is inferred.
- The 2K AC/DC option lacks a dedicated voltage and RMS-current table. Obtain its exact technical sheet before AC selection.
- Input thresholds and drive current are generic approximations; verify compatibility with the controller and exact input code.
- Observe DC output polarity on the body. AC A-type and DC D-type outputs are not interchangeable.
- Derate dense PCB layouts and inductive/high-inrush loads; internal RC suppression does not cover every application.
- The source suggests manual soldering ≤350 °C for 3–5 s; confirm the approved process and footprint for the exact product. OFF leakage means the output is not a service isolator.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
