Aluminum-housed PCB solid-state relay
PMH is a vertical single-in-line PCB solid-state relay with an aluminum-alloy housing for enhanced heat dissipation and an LED indicator. The published family selection chart includes DC, non-polar output and AC switching versions.
Request a quote ↗TECHNICAL DATA / PMH
Specifications & selection.
- Vertical PCB mounting with an aluminum housing.
- LED input-status indication.
- AC zero-cross and random-turn-on variants are listed.
- Choose a published model combination; catalogue code fields are not freely interchangeable.
| Model pattern | Output type | Current code | Load-voltage code |
|---|---|---|---|
| PMH5D61** | DC, basic | 5 A | 5–60 VDC |
| PMH10D61** | DC, low internal resistance | 10 A | 5–60 VDC |
| PMH10K61** | Non-polar output | 10 A | Code 6; confirm exact AC/DC application |
| PMH5A20** | AC zero-cross | 5 A | 240 VAC |
| PMH5A30** | AC zero-cross | 5 A | 380 V (440 V), as listed in family code chart |
| PMH5A21** | AC random turn-on | 5 A | 240 VAC |
| PMH5A31** | AC random turn-on | 5 A | 380 V (440 V), as listed in family code chart |
| Suffix | Published input specification |
|---|---|
| 32 | 5–24 VDC |
| 05 | 5 VDC |
| 12 | 12 VDC |
| 24 | 24 VDC |
| Parameter | Specification |
|---|---|
| PMH | Vertical aluminum-housed PCB version |
| PM / PMN | Related vertical plastic versions; PMN includes LED |
| PG / PGH | Related horizontal versions; PGH uses aluminum housing |
| Overall dimensions / weight | Not supplied in the source selection chart |
| Thermal derating / isolation / leakage | Request the exact model technical specification |
Selection & installation notes

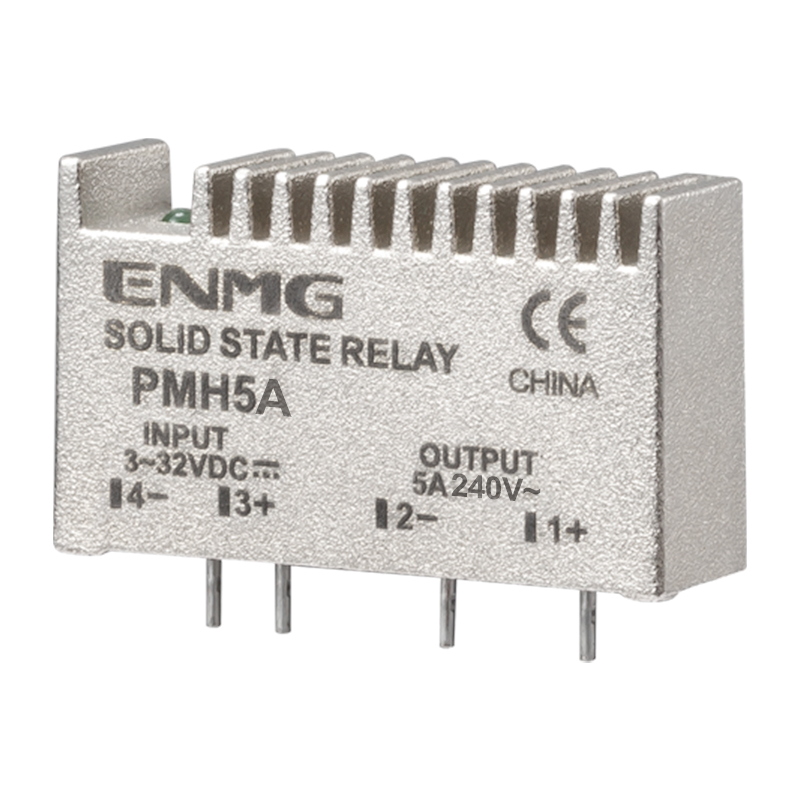

- The photographed PMH5A is marked 3–32 VDC input, while suffix 32 in the source coding chart is 5–24 VDC. Confirm the supplied revision and nameplate before selecting the input supply.
- The K-code description identifies AC/DC non-polar switching, while the selection table groups it under DC output. Confirm the exact permitted load before using this variant.
- The 380 V (440 V) wording is a family code description; it does not establish a universal voltage range for every PMH5A3 model.
- Choose the pinout, drive signal, load voltage/current and thermal conditions from the exact model document before PCB design. The housing does not remove the need to verify heat dissipation.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
English relay product selection brochure · YZ26I10
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
