ENMG / SOLID-STATE RELAYS
PMN

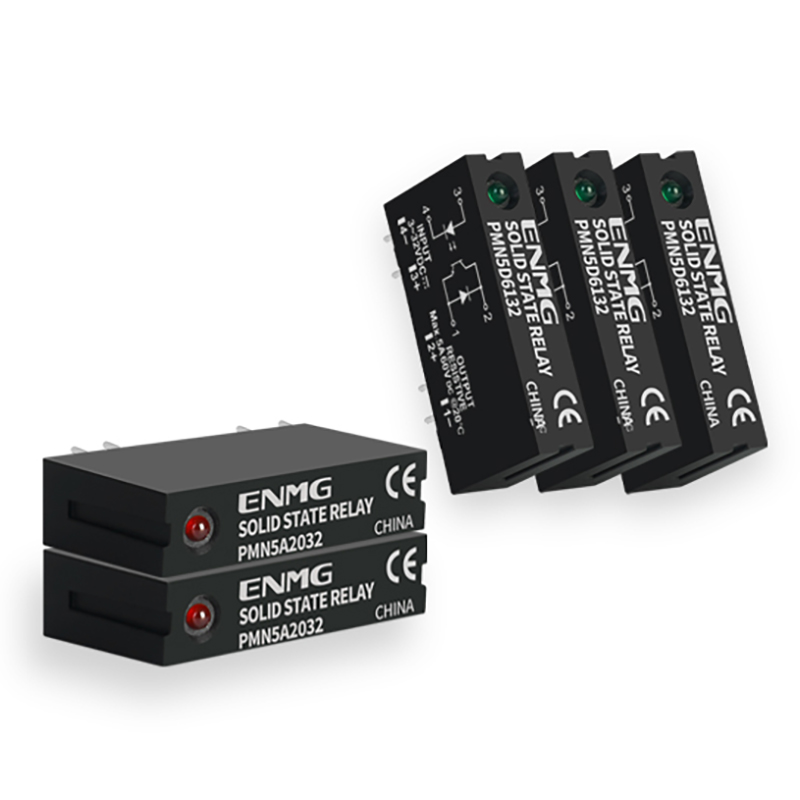

LED-indicated SIP solid-state relays
Vertical plastic-housed PCB solid-state relays with input status LEDs and AC, DC or AC/DC output options for industrial control boards.
Request a quote ↗TECHNICAL DATA / PMN
Specifications & selection.
- Four-pin SIP solder mounting with a narrow vertical body.
- AC zero-cross or random-trigger versions; DC and AC/DC versions available.
- The LED indicates input activation, not successful load switching.
| Output | Pattern; ** is input code |
|---|---|
| 5 A DC | PMN5D61** |
| 10 A DC | PMN10D61** |
| 5 A AC, 240 V class, zero-cross / random | PMN5A20** / PMN5A21** |
| 5 A AC, 380/440 V class, zero-cross / random | PMN5A30** / PMN5A31** |
| 5 A / 10 A AC-DC | PMN5K61** / PMN10K61** |
| Parameter | Specification |
|---|---|
| Codes 05 / 12 / 24 / 32 | 5 VDC / 12 VDC / 24 VDC / 5–24 VDC |
| Source input-range wording | General text and some labels state 3–32 VDC; code 32 and other labels state 5–24 VDC — confirm exact unit |
| Input current | Approx. 10 mA class; exact curve not supplied |
| Turn-on / turn-off threshold | Approx. ≥3 VDC / ≤1 VDC, source general values |
| Input pins / output pins | 11, 12 / 13, 14; use the unit’s polarity markings |
| Output circuit | One normally open semiconductor circuit |
| Type | Load range | Current | On-state drop | Leakage at rated voltage | Minimum load |
|---|---|---|---|---|---|
| AC 240 V class | 24–240 VAC | 5 A resistive at 20°C | ≤1.5 V, source typical/max wording | ≤5 mA | 50 mA |
| AC 380 V class | 24–440 VAC | 5 A resistive at 20°C | ≤1.5 V, source typical/max wording | ≤5 mA | 50 mA |
| DC 60 / 100 V class | 5–60 / 5–100 VDC | 5 / 10 A resistive at 20°C | Basic type ≤1.3 V; K type lower, not quantified | ≤1 mA | 10 mA |
| Parameter | Specification |
|---|---|
| AC on / off time | ≤10 ms in source; zero-cross depends on mains half-cycle |
| DC on / off time | ≤1 ms |
| Insulation resistance | ≥100 MΩ at 500 VDC between input, output and housing |
| Dielectric strength | 2,500 VAC, 1 min: input-output and input/output-housing |
| Vibration | 10–55 Hz, 0.75 mm double amplitude, X/Y/Z |
| Shock | Approx. 1,000 m/s² |
| Operating / storage temperature | −30 to +80°C / −30 to +100°C |
| Operating humidity | 45–85% RH; no condensation or ice |
| Altitude | Below 2,000 m |
| Dimensions, pin pitch and mass | Not stated; request the product drawing |
Selection & installation notes
- Confirm the exact control input before wiring; do not apply 3–32 VDC to a model specified only for 5–24 VDC.
- The source lists 100 V DC classes without complete standard order patterns. Confirm those variants separately.
- For K AC/DC variants, confirm AC RMS/peak limits and the exact voltage rating; a 60 VDC/AC label alone does not establish transient margin.
- Match A outputs to AC and D outputs to DC. Derate for temperature and dense PCB placement; provide load suppression for inductive circuits.
- Use the exact soldering specification. The page recommends ≤350°C for 3–5 seconds, which should be confirmed for the selected part and process.
- Disconnect power before service. An illuminated LED only confirms the input circuit, and off-state leakage remains possible.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
