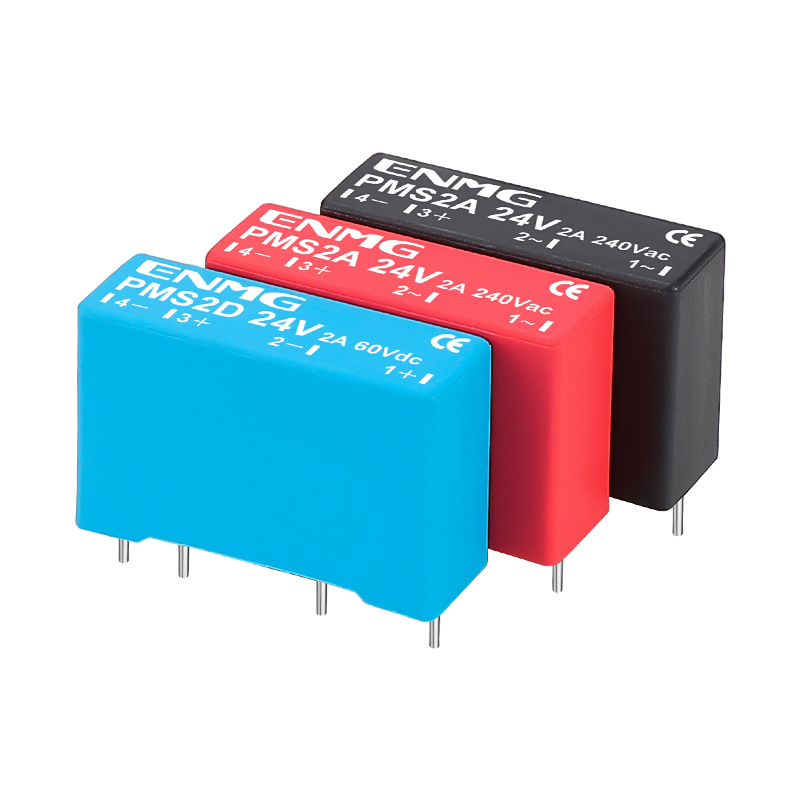

SIP PCB solid-state relays
Potted single-in-line solid-state relays with optical isolation, compact PCB mounting and AC or DC switching variants.
Request a quote ↗TECHNICAL DATA / PMS
Specifications & selection.
- 32 × 12 × 20 mm nominal body.
- PMS2A AC and PMS2D DC technical data provided.
- 5, 12 and 24 VDC input versions; wide-input code listed separately.
| Code pattern | Output type |
|---|---|
| PMS2D61** | Basic 2 A DC |
| PMS6D61** | Low-resistance 6 A DC; exact specification required |
| PMS2K61** | Non-polarized 2 A output; exact AC voltage definition required |
| PMS2A20** | 2 A AC zero-cross |
| PMS2A21** | 2 A AC random |
| Code | Nominal | Operating range | Approximate impedance |
|---|---|---|---|
| 05 | 5 VDC | 4–6 VDC | 0.5 kΩ |
| 12 | 12 VDC | 9.2–14.4 VDC | 1.5 kΩ |
| 24 | 24 VDC | 19.2–28.8 VDC | 3.3 kΩ |
| 32 | 5–24 VDC | Not specified here | Not specified |
| Parameter | AC PMS2A | DC PMS2D |
|---|---|---|
| Maximum current | 2 A | 2 A |
| Load voltage | 75–264 VAC, 45–65 Hz | 5–60 VDC |
| Non-repetitive surge | 30 A; duration unspecified | 16 A; duration unspecified |
| Peak withstand | 600 V peak | 100 V peak |
| ON drop | ≤1.2 V at 2 A | ≤1.3 V at 2 A |
| OFF leakage | ≤3 mA at 240 VAC | ≤1 mA at 60 VDC |
| Minimum load | 20 mA | 0.02 mA in source; confirm unit |
| Operate / release | ≤half cycle + 1 ms; random option | ≤1 ms |
| Parameter | Specification |
|---|---|
| Input-output withstand | 2500 VAC, 50/60 Hz, 1 minute |
| Insulation resistance | ≥1000 MΩ at 500 VDC |
| Vibration / shock | 10–55 Hz, 0.75 mm double amplitude / 1000 m/s² |
| Operation / storage | −30 to +80 °C / −30 to +100 °C |
| Humidity | 45–85% RH; no condensation or icing |
| Mass | Approximately 20 g |
| PCB soldering in source | Below 260 °C, within 10 seconds |
Selection & installation notes
- The PMS2 technical table does not establish PMS6D or PMS2K ratings. Confirm exact input suffix and footprint before PCB layout.
- Choose semiconductor protection and suppression for actual load inrush and fault current. Derate above 40 °C and for dense PCB populations.
- Zero-cross AC versions are unsuitable for phase-angle control. OFF leakage can energize a load; isolate supply before maintenance.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
