ENMG / LIQUID LEVEL CONTROL
PS-1M
Stainless-steel electrode rods for level sensing
Rod electrodes for conductive-liquid level sensing, with SUS304 and SUS316 material selections and multiple standard lengths.
Request a quote ↗TECHNICAL DATA / PS-1M
Specifications & selection.
- PS-1M: 1 m rod in SUS304 or SUS316.
- SUS304 lengths from 0.2 to 1.0 m in the family brochure.
- Extension coupling nuts listed in both stainless grades.
| Model | Length | Material |
|---|---|---|
| PS-1M | 1 m | SUS304 |
| PS-0.9M | 0.9 m | SUS304 |
| PS-0.8M | 0.8 m | SUS304 |
| PS-0.7M | 0.7 m | SUS304 |
| PS-0.6M | 0.6 m | SUS304 |
| PS-0.5M | 0.5 m | SUS304 |
| PS-0.4M | 0.4 m | SUS304 |
| PS-0.3M | 0.3 m | SUS304 |
| PS-0.2M | 0.2 m | SUS304 |
| PS-1M | 1 m | SUS316 |
| PS-0.5M | 0.5 m | SUS316 |
| Item | Published specification |
|---|---|
| Rod diameter in PS-1S technical sheet | Ø6 mm |
| End thread / threaded length | M6 interface; 30 mm thread length in rod drawing |
| Extension connection nut | PS-02 SUS304 / PS-02 SUS316 |
Selection & installation notes

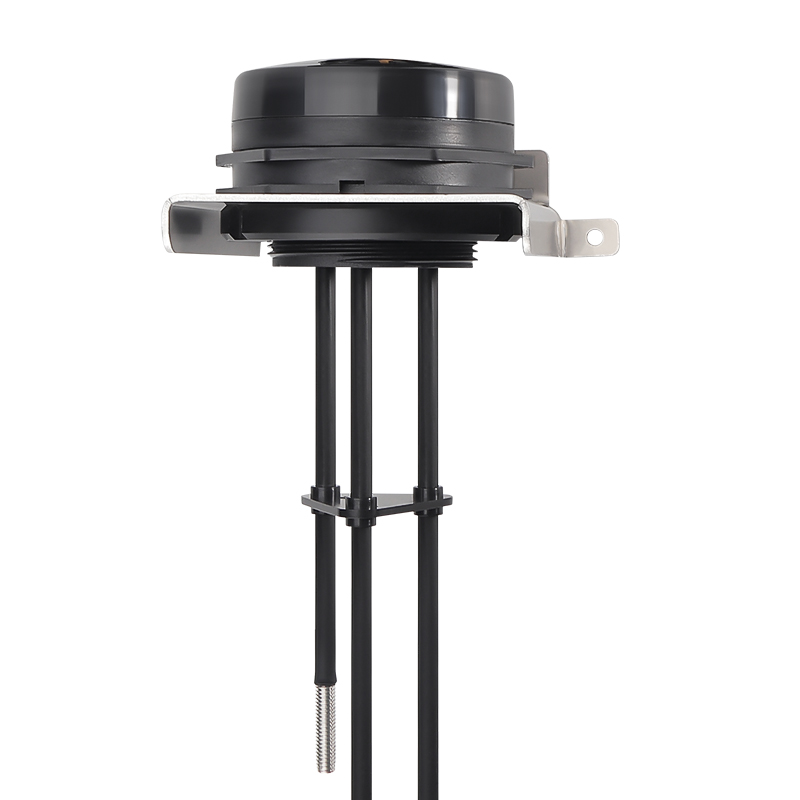

- The official PS-1M page uses an assembled holder-and-rods photograph. It is an application illustration; a holder, bracket and controller are not implied to be included with a rod order.
- Choose material for the actual liquid chemistry, temperature and cleaning process; SUS316 is not universally corrosion-proof.
- Specify rod lengths to establish sensing elevations and keep rods separated. Confirm all thread details before extension. Isolate the system before maintenance.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG control components — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
