ENMG / LIQUID LEVEL CONTROL

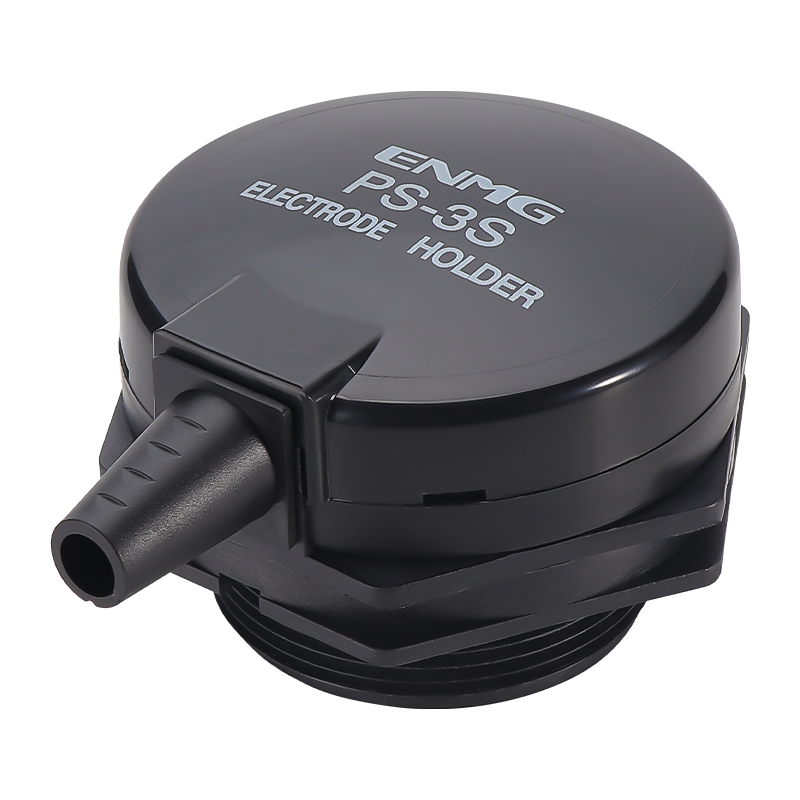

PS-3S
3-pole electrode holder for liquid level control
Electrode holder for arranging sensing rods in a conductive-liquid level control installation.
Request a quote ↗TECHNICAL DATA / PS-3S
Specifications & selection.
- 3 electrode poles identified in the English control-components brochure.
- Removable cover and side cable entry shown on the official product.
- Companion rod, spacer and mounting accessories available.
| Item | Published model |
|---|---|
| Holder | PS-3S — 3 poles |
| Related holder | PS-3S: 3 poles; PS-5S: 5 poles |
| Fixing nut | F03-12B |
| Electrode isolators | PS-3S-2H: 2 poles; PS-3S-3H: 3 poles |
| Mounting bracket | FS-A |
| Rod family | PS stainless-steel electrode rods; specify length and material |
Selection & installation notes
- Use with a compatible conductive-liquid level controller; the holder alone does not switch a pump or establish a complete control system rating.
- Isolate electrical supplies and drain/depressurize the installation before assembly. Verify electrode spacing, liquid compatibility and controller wiring.
- The source does not specify holder dimensions, thread, pressure/temperature limits or enclosure rating. Obtain the exact drawing and operating limits; do not transfer PS-1S ratings to PS-3S or PS-5S.
- Assembly photos show multiple family accessories. Confirm the number of rods and all included parts in the quotation.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG control components — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
