ENMG / RELAY SOCKETS
PY08-02 / PY11-02 / PY14-02 / PT08-0

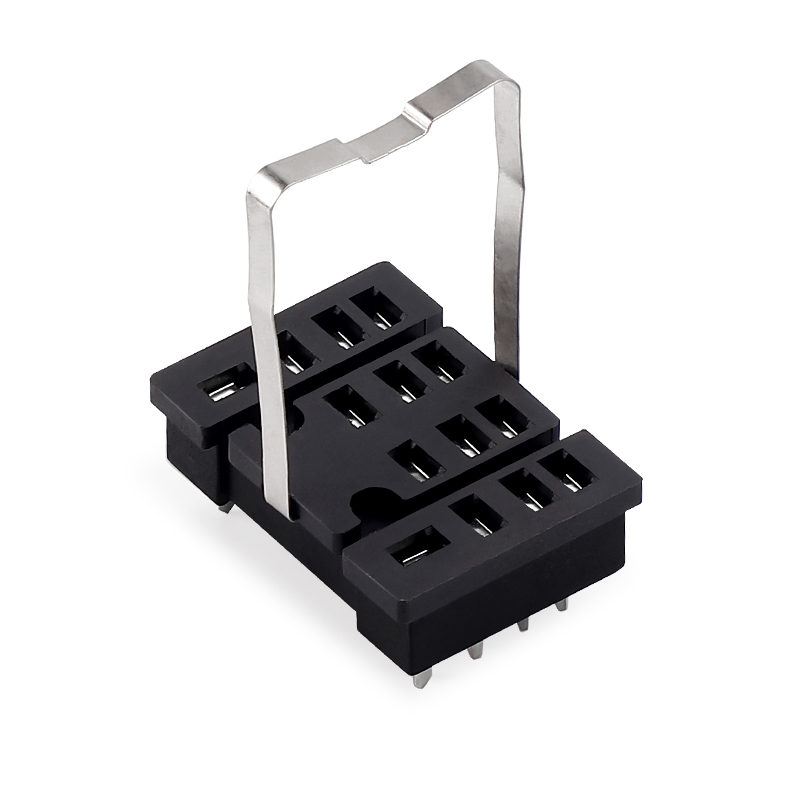

PY and PT through-hole PCB relay sockets
PCB-mounted sockets for replaceable control relays, using PY and wider-pin PT interfaces.
Request a quote ↗TECHNICAL DATA / PY08-02 / PY11-02 / PY14-02 / PT08-0
Specifications & selection.
- 8-, 11- and 14-pin PY versions.
- PT08-0 for the wide 8-pin LY interface.
- Relay replacement without desoldering the socket.
| Model | Pins / interface | Electromechanical relay | Solid-state relay |
|---|---|---|---|
| PY08-02 | 8 / PY | MY2; text also lists RXM2 / GMY2 | GM5A / GM5D |
| PY11-02 | 11 / PY | MY3 | Not listed |
| PY14-02 | 14 / PY | MY4; text also lists RXM4 / GMY4 | Not listed |
| PT08-0 | Wide 8 / PT | LY2; text also lists GLY2 | GL15D |
| Model | Published distinction |
|---|---|
| PY14-02Y | Separate Y-variant product page |
| PT14-0 | Wide 14-pin LY4 socket in the image |
Selection & installation notes
- Verify the complete PCB footprint and relay pinout before manufacture. Fully seat and solder socket pins and inspect for solder bridges.
- Obtain socket current, voltage, insulation, solder temperature/time, outline and environmental limits; the source does not provide these independently. Do not substitute relay ratings for socket ratings.
- Isolate the circuit before inserting or removing a relay. Release its retaining clip before removal and avoid stressing PCB solder joints.
- The page text also assigns RXM to PT08-0 and names PT14-02, while the selection image uses LY2 for PT08-0 and PT14-0 for LY4. These are not confirmed interchangeable order codes. Confirm the exact variant.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
