PY14-02Y

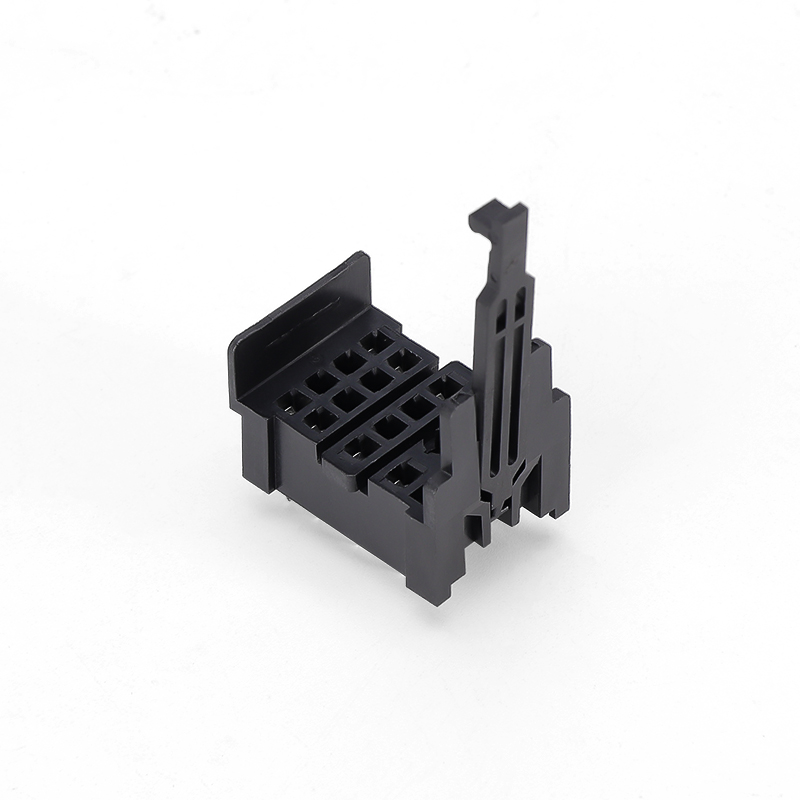

14-pin PCB relay socket with retaining lever
PCB-soldered socket for replaceable plug-in relays, with a retaining lever for relay installation and removal.
Request a quote ↗TECHNICAL DATA / PY14-02Y
Specifications & selection.
- 14-pin PY-series PCB socket in the Y configuration.
- Allows replacement of the plug-in relay while the socket remains soldered to the board.
- Black housing with relay retaining lever.
| Item | Published information |
|---|---|
| Model | PY14-02Y |
| Mounting | PCB soldering |
| Socket pins | 14 |
| Relay families in page text | RXM4 / GMY4 |
| Relay families in selection image | MY2 / MY4; GM5A / GM5D solid-state types |
| Related sockets | PY08-02: 8-pin; PY14-02: 14-pin standard version |
| Electrical and soldering limits | Not specified on this product page |
Selection & installation notes
- Check the complete relay pinout and PCB footprint. The image lists MY2 and MY4 on the same socket; pin count alone does not establish compatibility.
- Confirm socket current, voltage, insulation, solder temperature/time and environmental limits before PCB design. Relay contact ratings do not establish the socket rating.
- Isolate supplies before inserting or removing the relay; verify the retaining lever is engaged.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
