ENMG / DIN-RAIL ACCESSORIES
R99-12

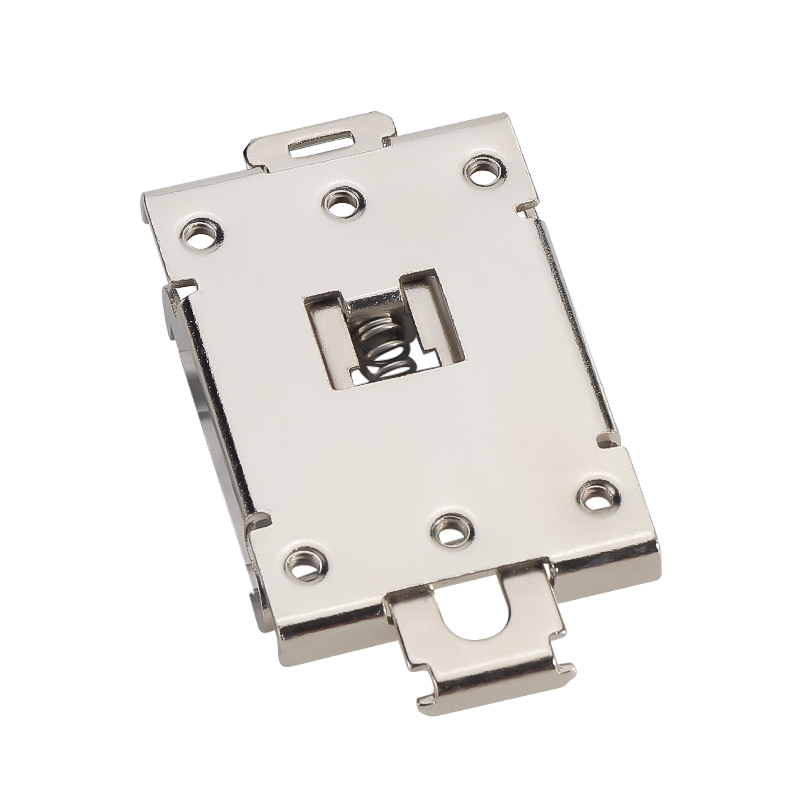

Nickel plated DIN-rail mounting bracket
Spring-clipped metal mounting adapter for securing compatible electrical components and single-phase solid-state relays to 35 mm DIN rail.
Request a quote ↗TECHNICAL DATA / R99-12
Specifications & selection.
- 35 mm DIN-rail attachment.
- 44.2 mm-wide R99-12 family with six M4 threaded through-holes.
- Nickel plated finish.
| Parameter | Published value |
|---|---|
| Rail | 35 mm DIN |
| Width | 44.2 mm |
| Plate | 1.5 mm carbon steel |
| Component fixing | 6 × M4 threaded through-holes |
| Hole pitch | 47.5 mm |
| Reference mass | Approximately 55 g for R99-12 |
| Selected finish | Nickel plated |
Selection & installation notes
- Confirm the exact hole pattern, fasteners, rail profile and component clearance before ordering. Isolate electrical equipment before installation or removal.
- No verified load capacity, vibration rating, tightening torque or thermal resistance is supplied. A mounting bracket does not establish the cooling capacity of an SSR assembly.
- The family text identifies a SUS303 spring while product images identify SUS304. Confirm the supplied spring grade.
- SN / SO single-phase SSR families are mentioned as applications; confirm the individual relay footprint.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG electrical accessories — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
