ENMG / DIN-RAIL ACCESSORIES
R99-15 / R99-15K

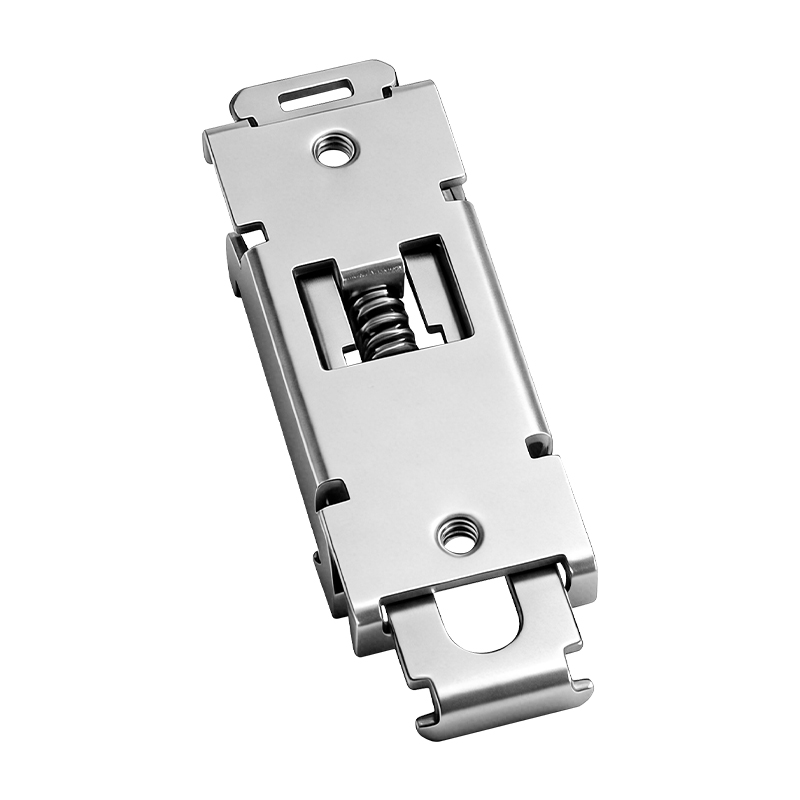

Narrow DIN-rail brackets with selectable hole patterns
25 mm-wide steel mounting brackets for 35 mm DIN rail, offered with threaded or slotted component fixing and nickel or black finishes.
Request a quote ↗TECHNICAL DATA / R99-15 / R99-15K
Specifications & selection.
- 35 mm DIN-rail spring retention.
- 39.1 mm and 47.5 mm variant labels appear in the official selection panels.
- R99-15 nickel finish and R99-15K black electrophoretic finish.
| Variant label | Component fixing | Drawing pitch |
|---|---|---|
| 39.1 mm | 2 × M4 threads plus 2 × Ø3.5 mm through-holes | M4: 50 mm; through-holes: 39.1 mm |
| 47.5 mm threaded | 2 × M4 threaded through-holes | 47.5 mm variant label |
| 47.5 mm slotted | 2 slots, 4.2 mm wide | 47.5–50 mm |
| Parameter | 39.1 mm drawing | Slotted drawing |
|---|---|---|
| Width | 25 ±0.5 mm | 25 ±0.5 mm |
| Overall length | 80 ±0.5 mm | 80 ±0.5 mm |
| Body length | 64.50 ±0.5 mm | 65 ±0.5 mm |
| Overall depth | 13.8 ±0.5 mm | 14 ±0.5 mm |
| Plate thickness | Nominal 1.5 mm | 1.5 ±0.1 mm |
| Rail | 35 mm DIN | 35 mm DIN |
Selection & installation notes
- Confirm the exact hole pattern, fasteners, rail profile and component clearance before ordering. Isolate electrical equipment before installation or removal.
- No verified load capacity, vibration rating, tightening torque or thermal resistance is supplied. A mounting bracket does not establish the cooling capacity of an SSR assembly.
- The family text identifies a SUS303 spring while product images identify SUS304. Confirm the supplied spring grade.
- The family text calls the smaller holes Ø3 mm and the selection panel calls them M3 through-holes; the detailed 39.1 mm drawing specifies Ø3.50 mm. Obtain the exact manufacturing drawing before machining mating parts.
- The 39.1 mm variant label refers to the smaller through-hole spacing, not the M4 thread pitch. Do not transfer dimensions between variants.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG electrical accessories — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
